AI (NANO) HIGH PRECISION CONTOUR CONTROL Additional Manual Page 10

Additional Manual
Title
No.
FANUC Series 16i/18i -MA/MB
AI High Precision Contour Control
FANUC Series 16i -MA/MB
AI Nano High Precision Contour Control
A-78435E
Page
9/
36
Newly registered

Ver Date Design Description
01 01.03.16
Hosokawa
- Deceleration based on a distance
If the total distance of the blocks read ahead becomes shorter than or equal to the
deceleration distance obtained from the current feedrate, deceleration starts.
If the total distance of the blocks read ahead during deceleration increases,
acceleration is performed.
If the blocks of a small amount of travel are successively specified, deceleration
and acceleration may be performed alternately, making the feedrate inconsistent.
To avoid this, decrease the programmed feedrate.
- Single-block commands during look-ahead bell-shaped acceleration/deceleration before
interpolation control
If a single-block command is executed during look-ahead bell-shaped
acceleration/deceleration control, the following control is applied.
(1) If acceleration/deceleration is performed when the single-block command is
executed
(a) If A + B
≤
Remaining amount of travel in the block executed when
the single-block command is executed
Deceleration is performed for a stop so that the feedrate falls to zero
at the point at which the block executed when the single-block
command was executed terminates.
A : Amount of travel to a point where the target feedrate is attained and the
current acceleration/deceleration ends
B : Amount of travel corresponding to deceleration from the feedrate
attained at the end of acceleration/deceleration to 0

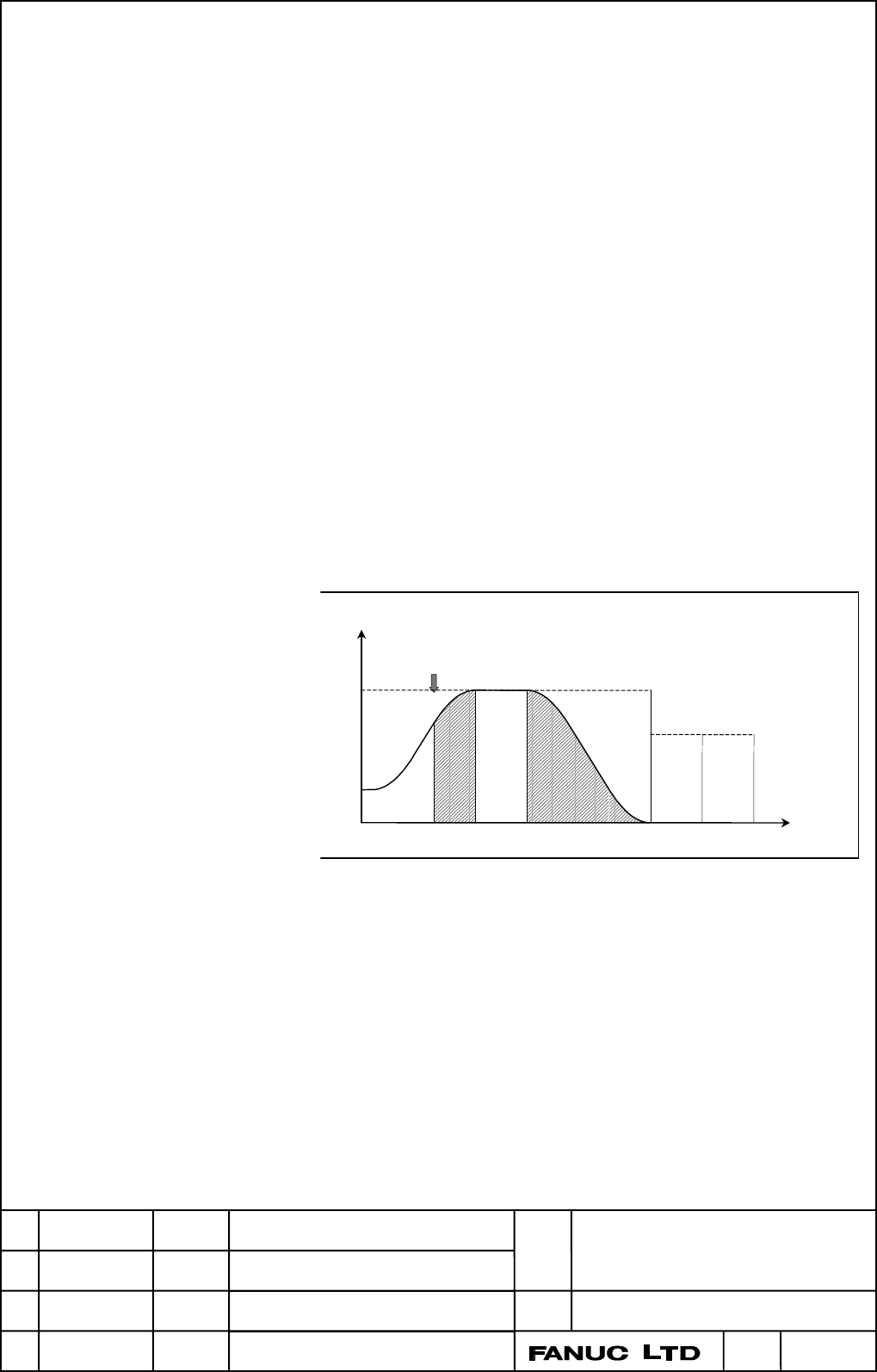

B
Feedrate
Time
A
Single-block command
