AI (NANO) HIGH PRECISION CONTOUR CONTROL Additional Manual Page 14

Additional Manual
Title
No.
FANUC Series 16i/18i -MA/MB
AI High Precision Contour Control
FANUC Series 16i -MA/MB
AI Nano High Precision Contour Control
A-78435E
Page
13/
36
Newly registered

Ver Date Design Description
01 01.03.16
Hosokawa

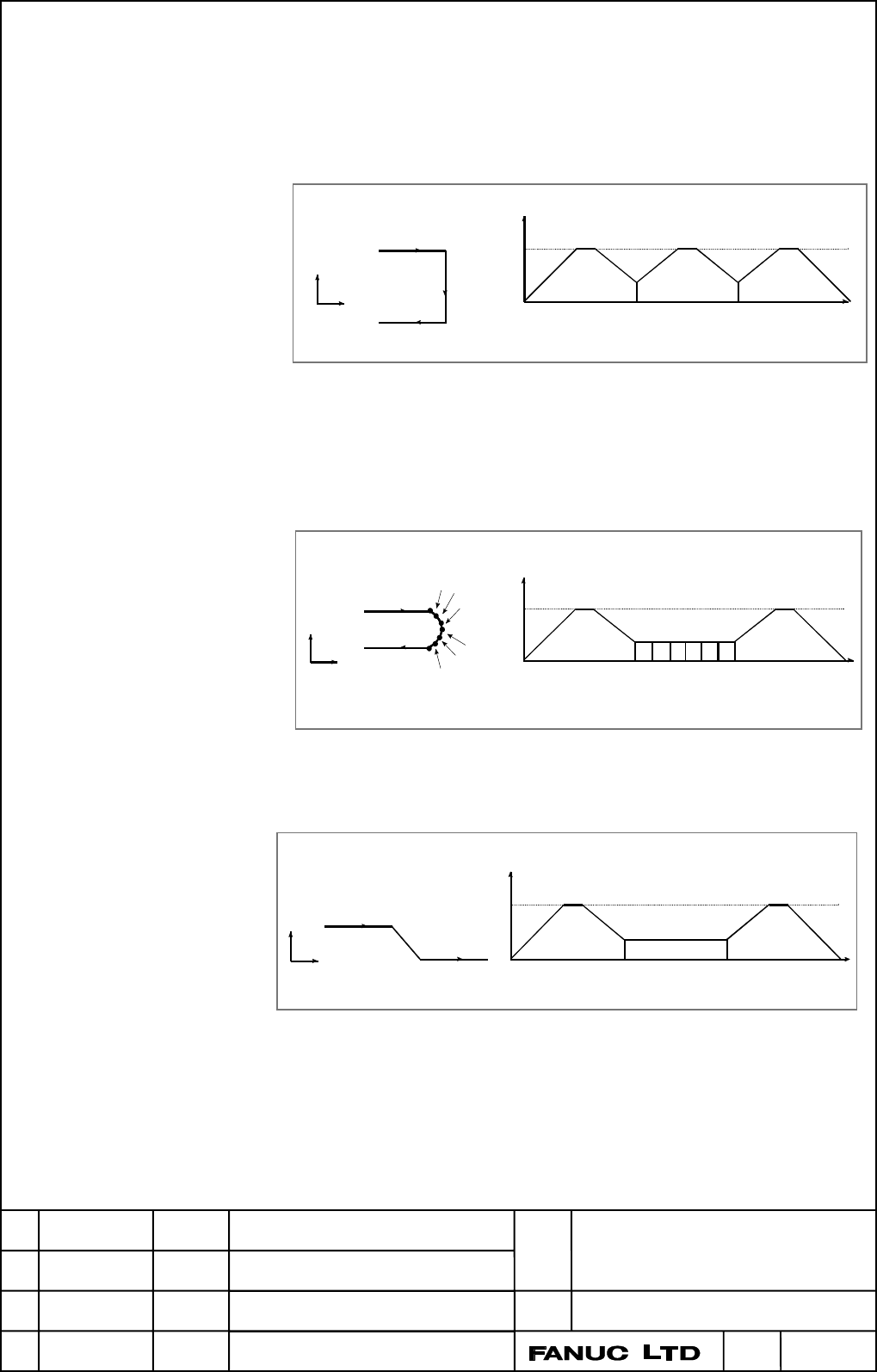

Feedrate control conditions
In automatic feedrate control mode, the feedrate is controlled as described below:
(a) From the feedrate difference on each axis at a corner, the feedrate in the
corner is determined, and deceleration is performed to achieve the feedrate
at the corner.
(b) From the acceleration on each axis at the corners at the start and end points
of each block, the feedrate in the block is determined, and deceleration is
performed so that the feedrate in the block is equal to or less than the
determined feedrate.
(c) During descent on the Z-axis, the cutting load increases, and override is
applied according to the Z-axis descent angle.
N2N1
Specified
F
N3 t
N1
N2
N3
Y
X
(Example)
N2 N3 N6 N7N1
Specified
feedrate
N8 t
N1
N2
N3
Y
X
(Example)
N7
N6
N4
N5
N8
N2N1 N3 t
N1
N2
N3
Z
X
(Example)
Specified
feedrate
