AI (NANO) HIGH PRECISION CONTOUR CONTROL Additional Manual Page 32

Additional Manual
Title
No.
FANUC Series 16i/18i -MA/MB
AI High Precision Contour Control
FANUC Series 16i -MA/MB
AI Nano High Precision Contour Control
A-78435E
Page
31/
36
Newly registered

Ver Date Design Description
01 01.03.16
Hosokawa
8416 Acceleration change time of bell-shaped acceleration/deceleration before
interpolation
[Input type] Parameter input
[Data type] 2-word type
[Unit of data] msec
[Valid data range] 0 - 200

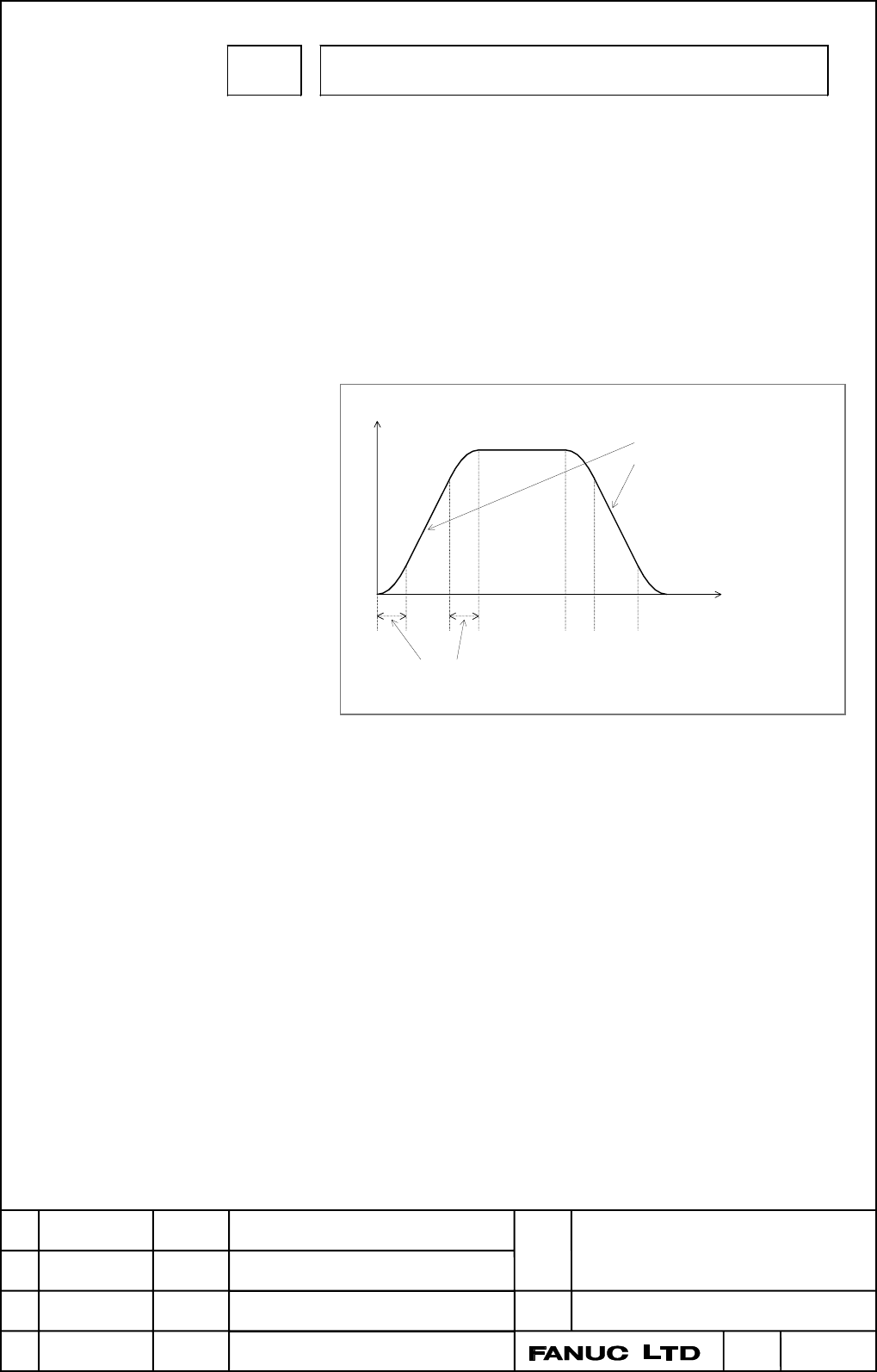

This parameter sets the acceleration change period in bell-shaped
acceleration/deceleration before interpolation (the time taken for the change from
the constant speed state (A) to the certain acceleration/deceleration state (C) using
an acceleration calculated based on the acceleration set in parameter No. 19510:
the period of (B) in the following figure).
Tangential feedrate
Optimum inclination is
automatically calculated based
on the value set in parameter
No. 19510.
Set the period in parameter
No. 8416.
(A) (B) (B) (B) (B)(A) (A)(C) (C)
