AI (NANO) HIGH PRECISION CONTOUR CONTROL Additional Manual Page 6

Additional Manual
Title
No.
FANUC Series 16i/18i -MA/MB
AI High Precision Contour Control
FANUC Series 16i -MA/MB
AI Nano High Precision Contour Control
A-78435E
Page
5/
36
Newly registered

Ver Date Design Description
01 01.03.16
Hosokawa
1.1
Look-ahead Acceleration/Deceleration Before interpolation
Acceleration/deceleration types
There are two types of acceleration/deceleration, the linear
acceleration/deceleration type and the bell-shaped acceleration/ deceleration type.
When bit 7(BDO) and bit 1(NBL) of parameter No.8402 is set to 1 or bit 3(RSB)
of parameter No.1603 is set to 1, bell-shaped acceleration/deceleration is
assumed. Bell-shaped acceleration / deceleration produces smoother acceleration
/ deceleration.

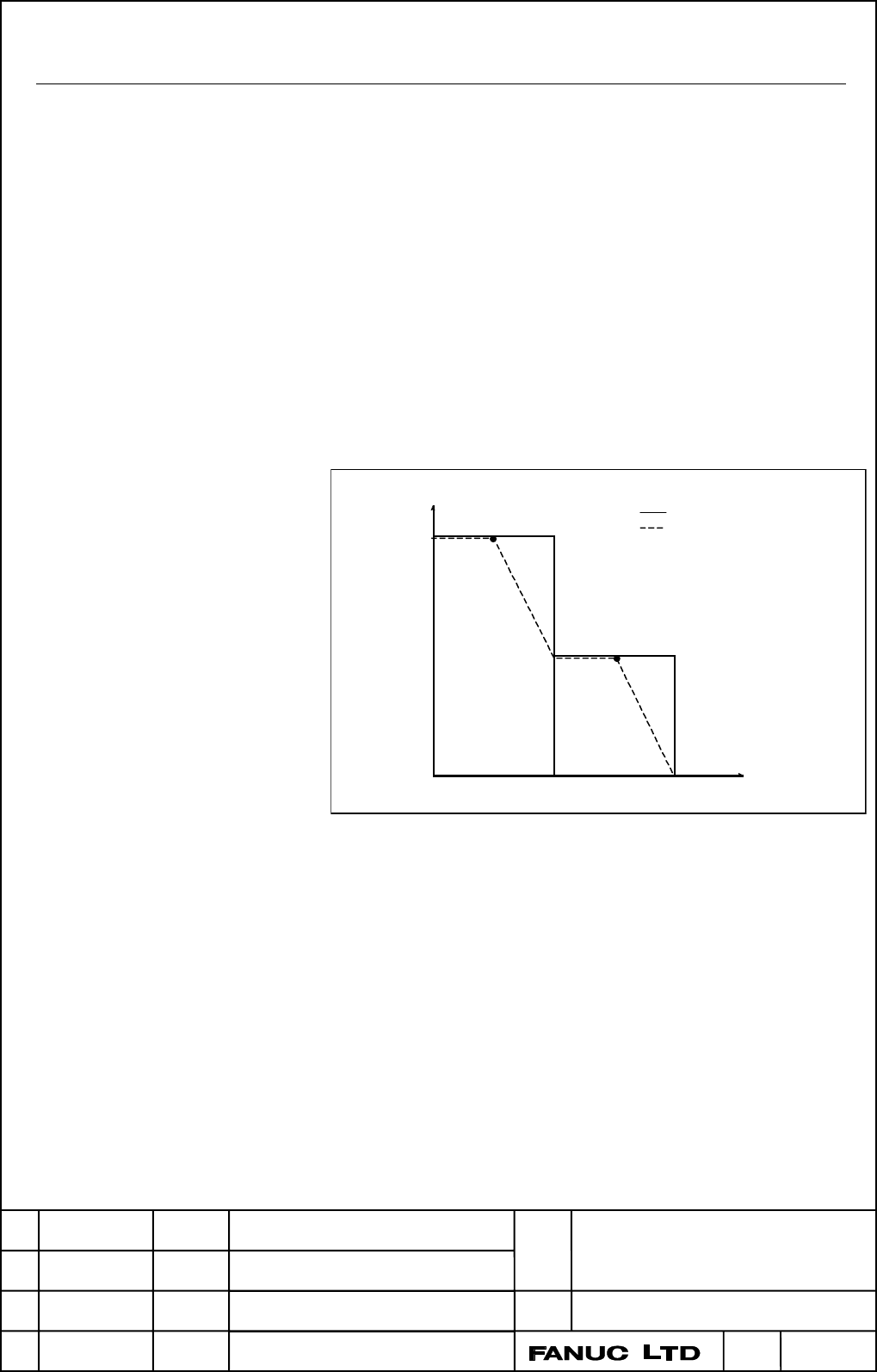

Look-ahead linear acceleration/deceleration before interpolation
- Example of deceleration
Deceleration starts in advance so that the feedrate specified for a block can be
attained when the block is executed.
To decrease the feedrate from F3 to F2, deceleration must be started from P1.
To decrease the feedrate from F2 to F1, deceleration must be started from P2.
Because multiple blocks are read in advance, deceleration can be performed over
all those blocks.
Programmed speed
Feedrate obtained by
acceleration/deceleration
before interpolation
P1
P2
N2N1
F1
F2
F3
Feedrate
Time
