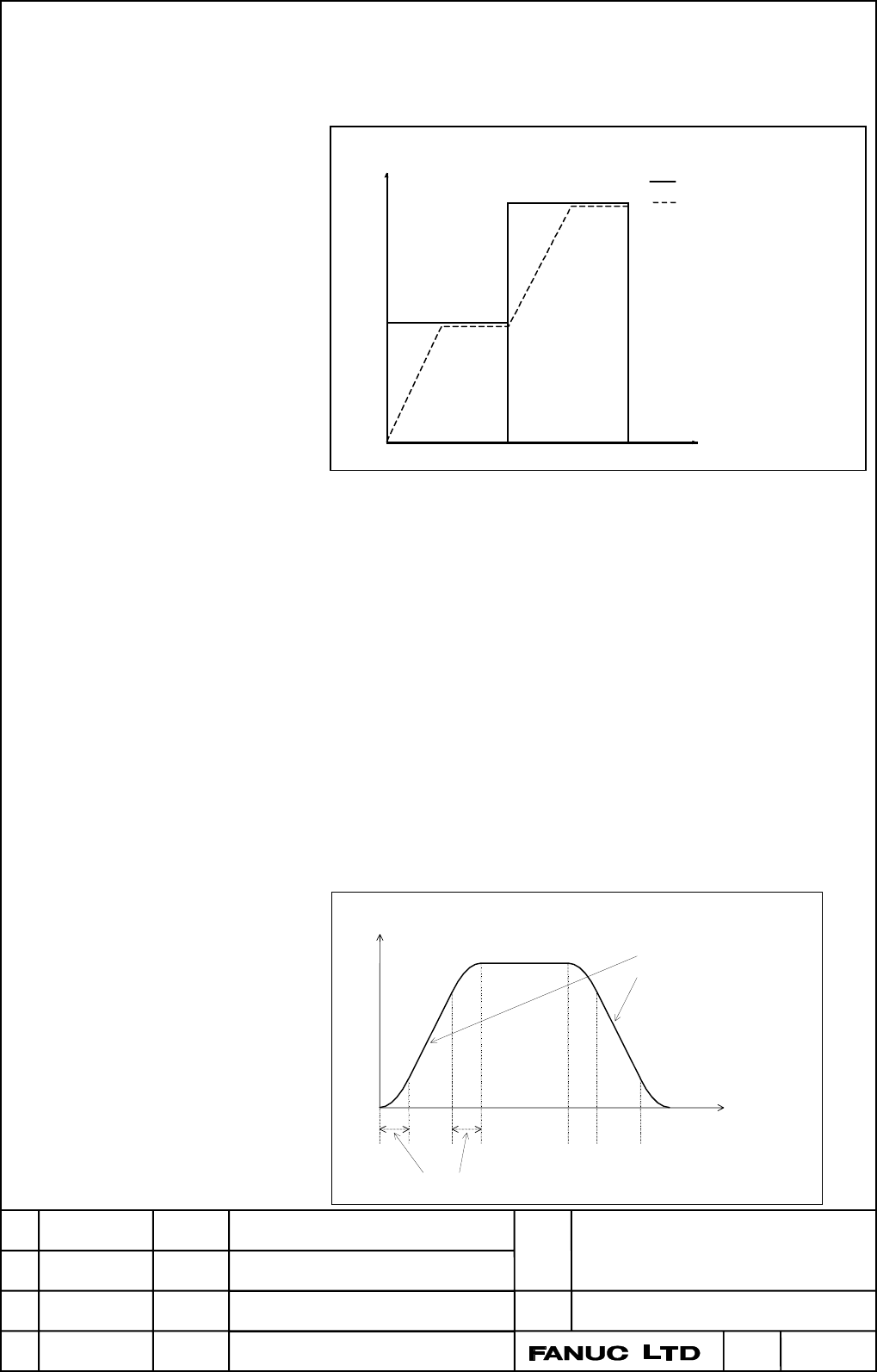

- Example of acceleration
Acceleration is performed so that the feedrate specified for a block is attained
when the block is executed.
Look-ahead bell-shaped acceleration/deceleration before interpolation
If “1” is set to bit 7(BDO) and bit 1(NBL) of parameter No.8402 or bit 3(RSB) of
parameter No.1603, bell-shaped acceleration/deceleration is applied as the
acceleration/deceleration before interpolation.
- Setting an acceleration
A permissible acceleration for the linear acceleration/deceleration of each axis is
set in parameter 19510. Acceleration change time (B) (period of transition from
constant speed state (A) to constant acceleration/deceleration state (C)) is set in
parameter 8416 (common to all axes). In the constant acceleration/deceleration
state (C), acceleration/deceleration is performed with the maximum tangential
acceleration not exceeding the permissible acceleration of each axis specified in
parameter 19510.
The acceleration change time specified in parameter 8416 is held constant,
regardless of the tangential acceleration.
Programmed speed
Feedrate obtained by
acceleration/deceleration
before interpolation
N2N1
F1
F2
F3
Feedrate
Time
Tangential feedrate
An optimum gradient is automatically
calculated from the setting made in
parameter 19510.
Time set in parameter 8416
(A) (B) (B) (B) (B)(A) (A)(C) (C)
