AI (NANO) HIGH PRECISION CONTOUR CONTROL Additional Manual Page 11

Additional Manual
Title
No.
FANUC Series 16i/18i -MA/MB
AI High Precision Contour Control
FANUC Series 16i -MA/MB
AI Nano High Precision Contour Control
A-78435E
Page
10/
36
Newly registered

Ver Date Design Description
01 01.03.16
Hosokawa

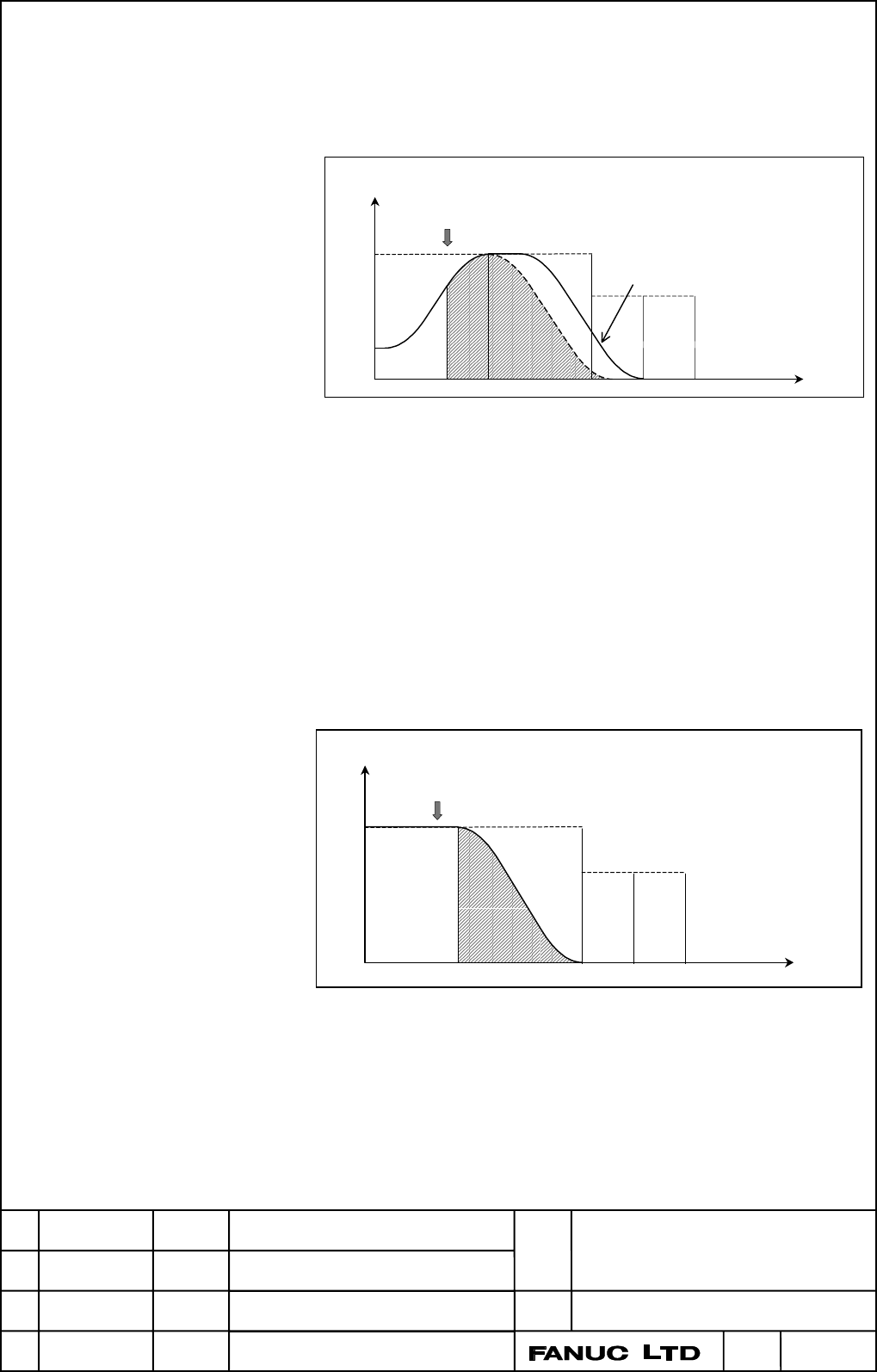

(b) If A + B > Remaining amount of travel in the block being executed
when the single-block command is executed
A stop state may continue over several blocks.
The stop is made as described later.
A : Amount of travel to a point where the target feedrate is attained and the
current acceleration/deceleration ends
B : Amount of travel corresponding to deceleration from the feedrate
attained at the end of acceleration/deceleration to 0
(2) If acceleration/deceleration is not performed when the single-block
command is executed
(a) A
≤
Remaining amount of travel in the block being executed when
the single-block command is executed
Movement is decelerated and stopped so that the feedrate falls to zero
at the end of the block which was being executed when the single-
block command was executed.
A : Amount of travel corresponding to deceleration from the current
feedrate to 0
Feedrate
Time
B
A
Single-block command
Stop state continuing over
multiple blocks
Feedrate
Time
A
Single-block command
