AI (NANO) HIGH PRECISION CONTOUR CONTROL Additional Manual Page 18

Additional Manual
Title
No.
FANUC Series 16i/18i -MA/MB
AI High Precision Contour Control
FANUC Series 16i -MA/MB
AI Nano High Precision Contour Control
A-78435E
Page
17/
36
Newly registered

Ver Date Design Description
01 01.03.16
Hosokawa
The method of determining the feedrate with the acceleration differs depending on
the setting of parameter FNW (bit 6 of No. 19500).
If "0" is set, the highest feedrate that does not cause the permissible acceleration
set for parameter No. 8470 to be exceeded is assumed to be the deceleration
feedrate. In this case, the deceleration feedrate differs depending on the travel
direction even if the shape is the same, as shown in the figure below.
If "1" is set, the feedrate is determined with not only the condition that the
permissible acceleration on each axis is not exceeded but also the condition that
the deceleration feedrate is constant regardless of the travel direction if the shape
is the same.
If 1 is set for this parameter, the deceleration feedrate determined with the
feedrate difference or acceleration may be up to 30% lower than that determined
if 0 is set.
NOTE
In circular interpolation, the tangent feedrate is constant
regardless of the setting of the parameter.

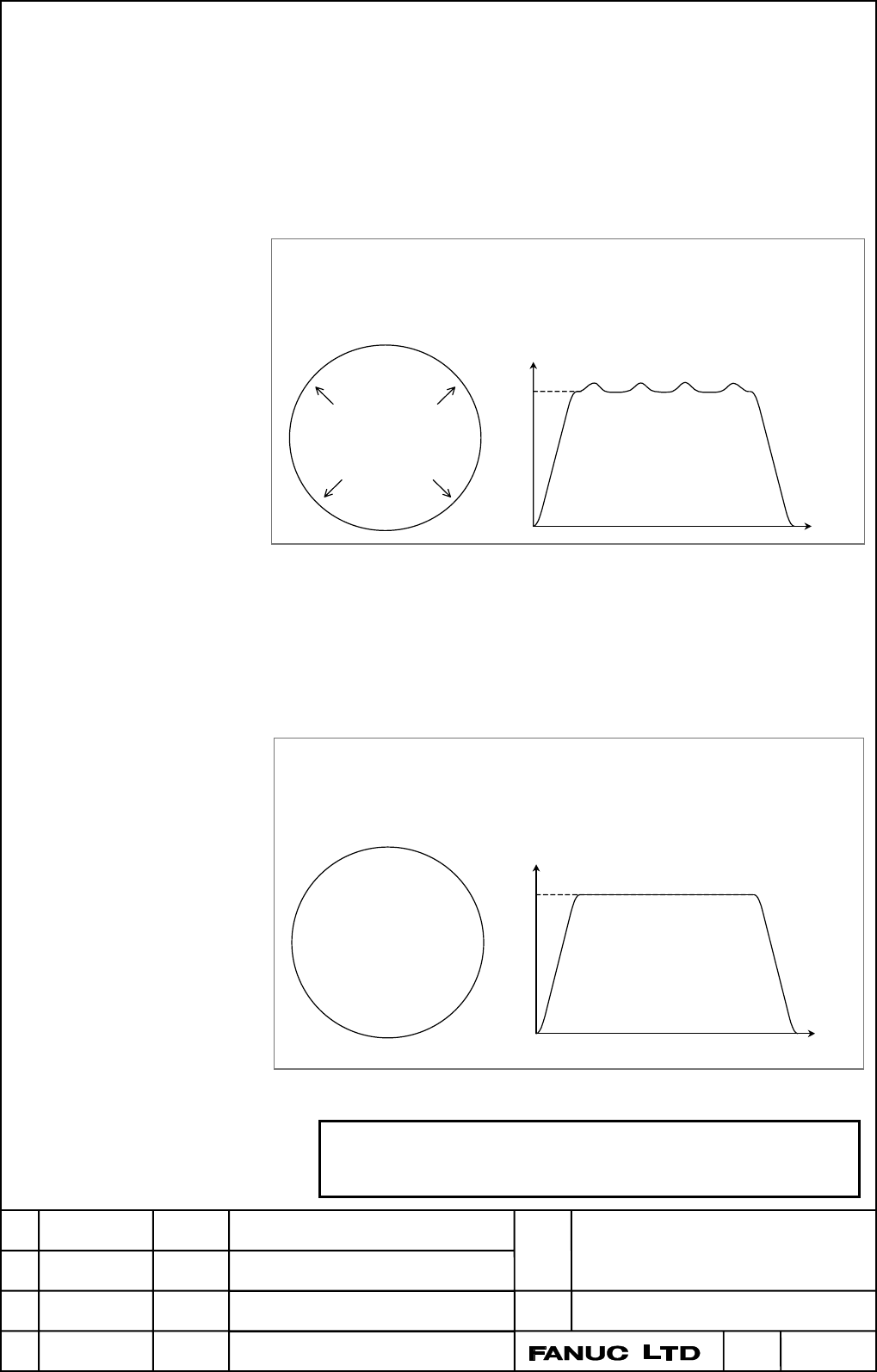

(Example) If a circular shape with a radius of 10 mm is specified with small line blocks
@@@
Parameter FNW (bit 6 of No. 19500) = 0
@@@
Permissible acceleration = 1000 mm/s
2
(on all axes)
The feedrate is highe
r
in these directions.
Tangent feedrate
Time
F6000
(Example) If a circular shape with a radius of 10 mm is specified with small line blocks
@@@
Parameter FNW (bit 6 of No. 19500) = 1,
@@@
radius = 10 mm, permissible acceleration = 1000 mm/s
2
(on all axes)
The tangent feedrate
is constant.
Tangent feedrate
Time
F6000
