AI (NANO) HIGH PRECISION CONTOUR CONTROL Additional Manual Page 15

Additional Manual
Title
No.
FANUC Series 16i/18i -MA/MB
AI High Precision Contour Control
FANUC Series 16i -MA/MB
AI Nano High Precision Contour Control
A-78435E
Page
14/
36
Newly registered

Ver Date Design Description
01 01.03.16
Hosokawa
Deceleration based on the feedrate difference at a corner
With look-ahead acceleration/deceleration before interpolation, the tangent
feedrate is changed smoothly. Thus, no path error occurs due to
acceleration/deceleration delay. With this acceleration/declaration, however,
acceleration/deceleration is not performed for any feedrate change on any axis
that may be made where the travel direction changes.
By using the function for deceleration based on the feedrate difference at a corner,
if a feedrate change occurs on an axis at a corner, the feedrate is determined so
that any feedrate difference exceeding the permissible feedrate difference on that
axis that has been set for parameter No. 8410 does not occur, and deceleration is
automatically performed.

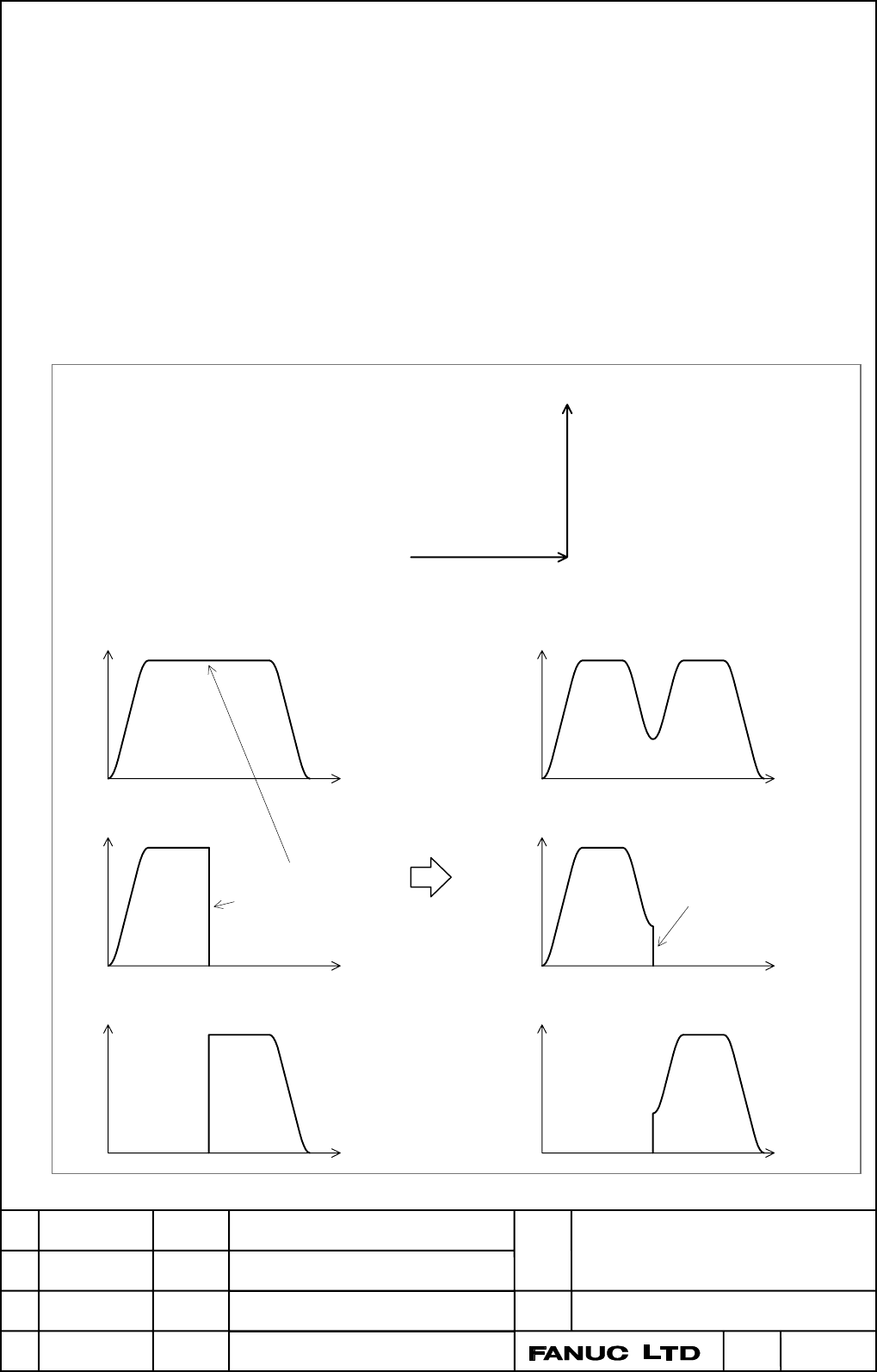

(Example)
Program
N1 G01 G91 X100. F5000
N2 Y100.
N1
N2
Tangent feedrate
X-axis feedrate
Y-axis feedrate
The deceleration based
on the feedrate difference
is used.
Tangent feedrate
X-axis feedrate
Y-axis feedrate
The feedrate difference
becomes small, and the
feedrate on each axis
becomes smooth.
The tangent feedrate is
smooth, but the feedrate
on each axis is not.
Previous page
Next page
