AI (NANO) HIGH PRECISION CONTOUR CONTROL Additional Manual Page 20

Additional Manual
Title
No.
FANUC Series 16i/18i -MA/MB
AI High Precision Contour Control
FANUC Series 16i -MA/MB
AI Nano High Precision Contour Control
A-78435E
Page
19/
36
Newly registered

Ver Date Design Description
01 01.03.16
Hosokawa
Example of determining the feedrate with the cutting load
This function is enabled when parameter ZAG (bit 4 of No. 8451) is set to 1.

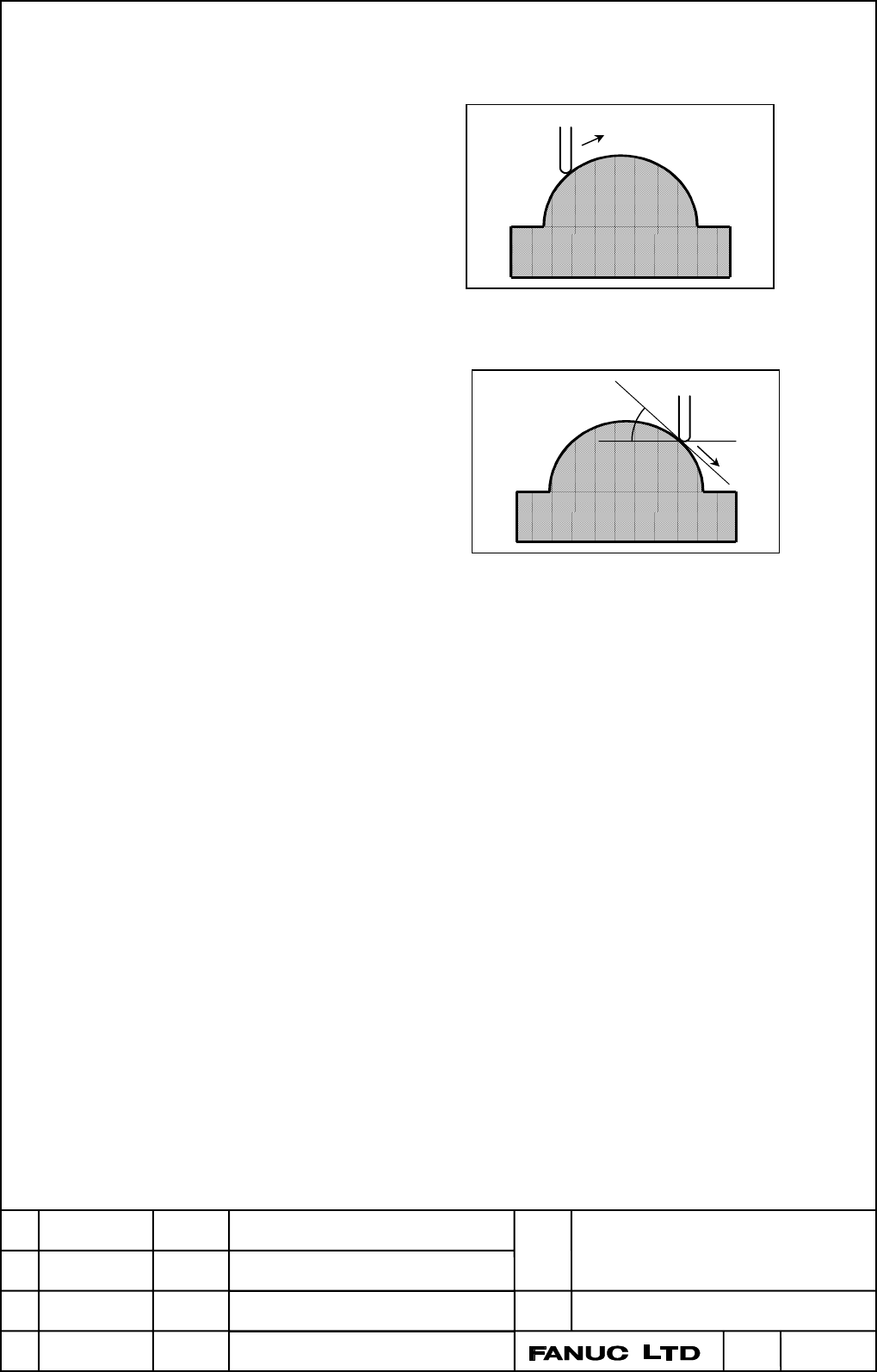

Fig. 1.2 (c) During ascent on the Z-axis
Fig. 1.2 (d) During descent on the Z-axis
Usually, the cutting resistance is higher when machining is performed with the
bottom of the cutter, as shown in Fig. 7.1.4 (a) an when machining is performed
with the side of the cutter, as shown in Fig. 7.1.4 (d). Deceleration is, therefore,
required. In AI High Precision Countour Control, the tool travel direction on the
Z-axis is used as a condition for calculating the machining feedrate.
The descent angle during descent on the Z-axis (angle formed by the XY plane
and the tool center path) is as shown in Fig. 7.1.4 (e). The descent angle is
divided into four areas, and the override values for the individual areas are set for
the following parameters:
Parameter No. 8456 for area 2
Parameter No. 8457 for area 3
Parameter No. 8458 for area 4
For area 1, however, no parameter is available, and an override of 100% is used at
all times. The feedrate obtained according to other feedrate control is multiplied
by the override value of the area to which descent angle belongs.
Area1 0
°
≤
θ
<30
°
Area2 30
°
≤
θ
<45
°
Area3 45
°
≤
θ
<60
°
Area4 60
°
≤
θ
≤
90
°
Į
