AI (NANO) HIGH PRECISION CONTOUR CONTROL Additional Manual Page 21
Additional Manual
Title
No.
FANUC Series 16i/18i -MA/MB
AI High Precision Contour Control
FANUC Series 16i -MA/MB
AI Nano High Precision Contour Control
A-78435E
Page
20/
36
Newly registered
Ver Date Design Description
01 01.03.16
Hosokawa
CAUTION
1. The function for determining the feedrate with the cutting feed
is effective only when the tool is parallel with the Z-axis.
Thus, it may not be possible to apply this function, depending
on the structure of the machine used.
2. In the function for determining the feedrate with the cutting
feed, the travel direction on the Z-axis is determined with the
appropriate NC command. If, therefore, manual intervention is
performed on the Z-axis with manual absolute on, or if a
mirror image is applied on the Z-axis, the direction on the Z-
axis cannot be determined. When using the function for
determining the feedrate with the cutting load, do not use these
functions.
3. When performing three-dimensional coordinate conversion,
determine the descent angle on the Z-axis using the converted
coordinate system.
Ignoring F code commands
In a block in which automatic feedrate control is enabled, all feed commands (F
commands) can be ignored by setting parameter NOF (bit 7 of No. 8451). The
term feed commands, as used here, refer to the following commands:
(1) Modal F commands before the block in which automatic feedrate control is
enabled
(2) F commands and modal F commands in the block in which automatic
feedrate control is enabled
When the F commands are ignored, it is assumed that the upper feedrate limit
specified for parameter No. 8465 is specified.
Note, however, that any issued F commands and modal F commands are stored
within the CNC.
Thus, in a block in which automatic feedrate control changes from the enabled
state to the disabled state, the modal values of the F commands described in 1 and
2 described above are used as modal F commands, instead of the modal values of
the F commands calculated by automatic feedrate control.

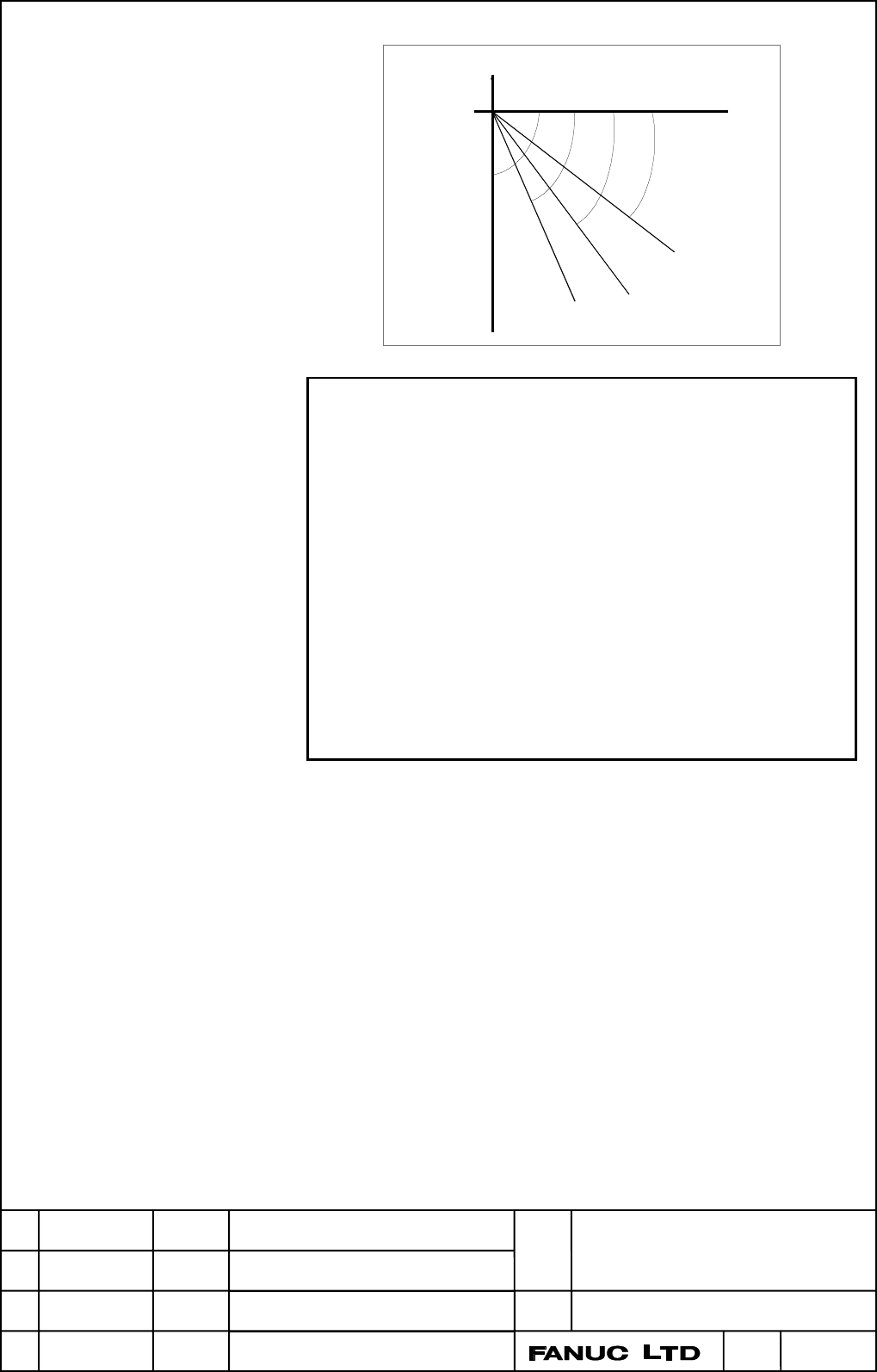

XY plane
Z
30
°
45
°
60
°
90
°
A
rea1
A
rea2
A
rea3
A
rea4
