2.3 CABLE CONNECTION
(1) Terminal block for the I/O Link-II interface (TB1)
The terminal block for the I/O Link-II interface consists of a
terminal block on the cable connection side and a terminal block
on the printed circuit board side, which can be separated from
each other. See Fig. 2(a).

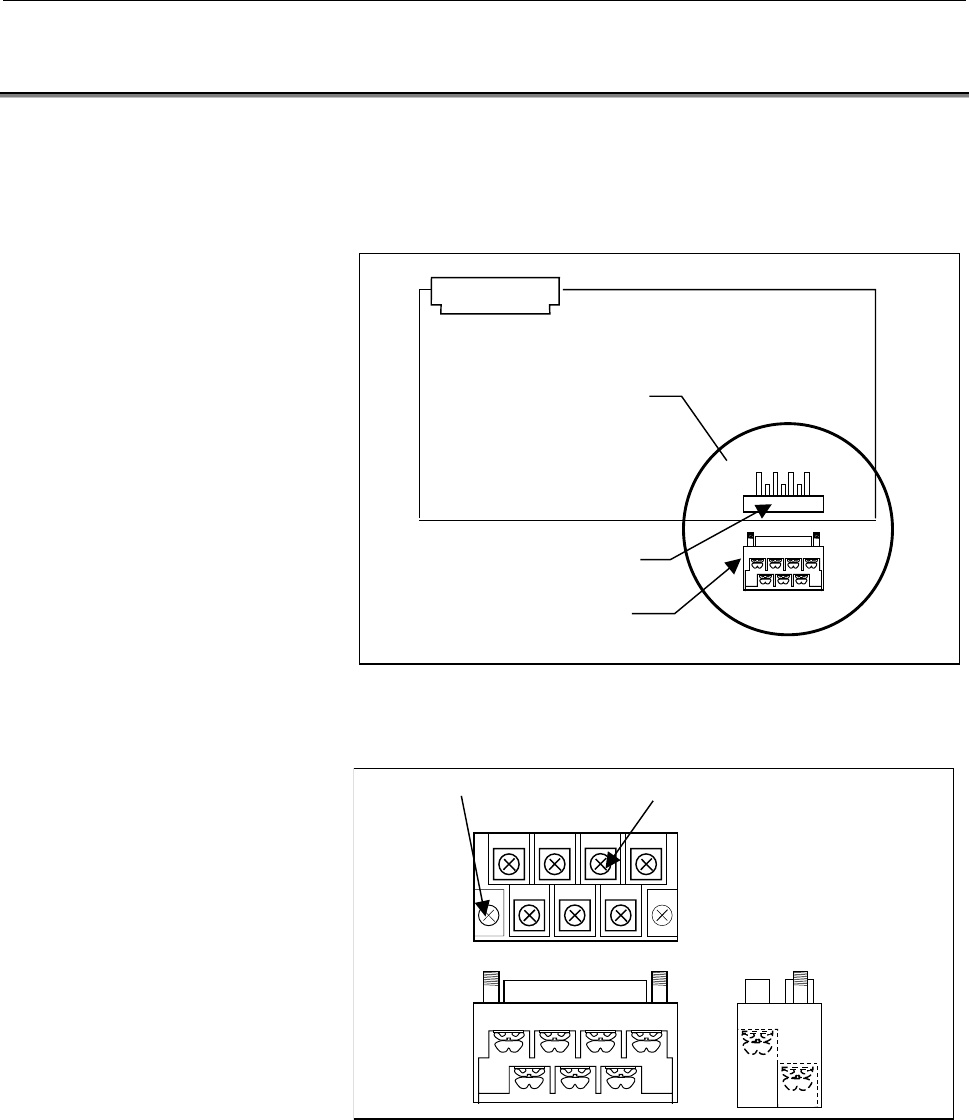

TB1
I/O Link-II interface board
Terminal block for the
I/O Link-II interface
board
Terminal block on the printed
circuit board
Terminal block on the cable
connection side
Fig. 2(a) Terminal block for the I/O Link-II interface
A terminal block on the cable connection side is installed on the
printed circuit board.
Mounting screw (2 pcs)
M3 screw terminal (7 pcs)
Fig. 2(b) Exterior view of the terminal block on the cable connection
side
