B-62714EN/04 OPERATION 2.LCD-MOUNTED TYPE 16i/18i/21i-A, Power Mate i-D/H
- 49 -
(b) Enter 100 with the MDI keys.
(c) Select the soft key [INPUT] to execute the input of data.
Thus, the set data is stored in the nonvolatile memory on the CNC.
Operating the auxiliary soft key [SEQ]
Based on DI/DO ADDRESS and SIZE of the station where the cursor
is placed, DI/DO ADDRESS areas can be automatically allocated
sequentially for the subsequent stations. For DI/DO SIZE, TYPE,
and MAXT, the same values as set for the slave where the cursor is
placed are set.
Example:
Allocating addresses for all stations sequentially when the values
of DI or DO SIZE are the same for all stations and the values of
the initialization service parameters (TYPE, MAXT) are the
same for all stations
(1) For station #1, set the start address of DI/DO ADDRESS, DI/DO
SIZE, TYPE, and MAXT. (See Screen 2-a.)

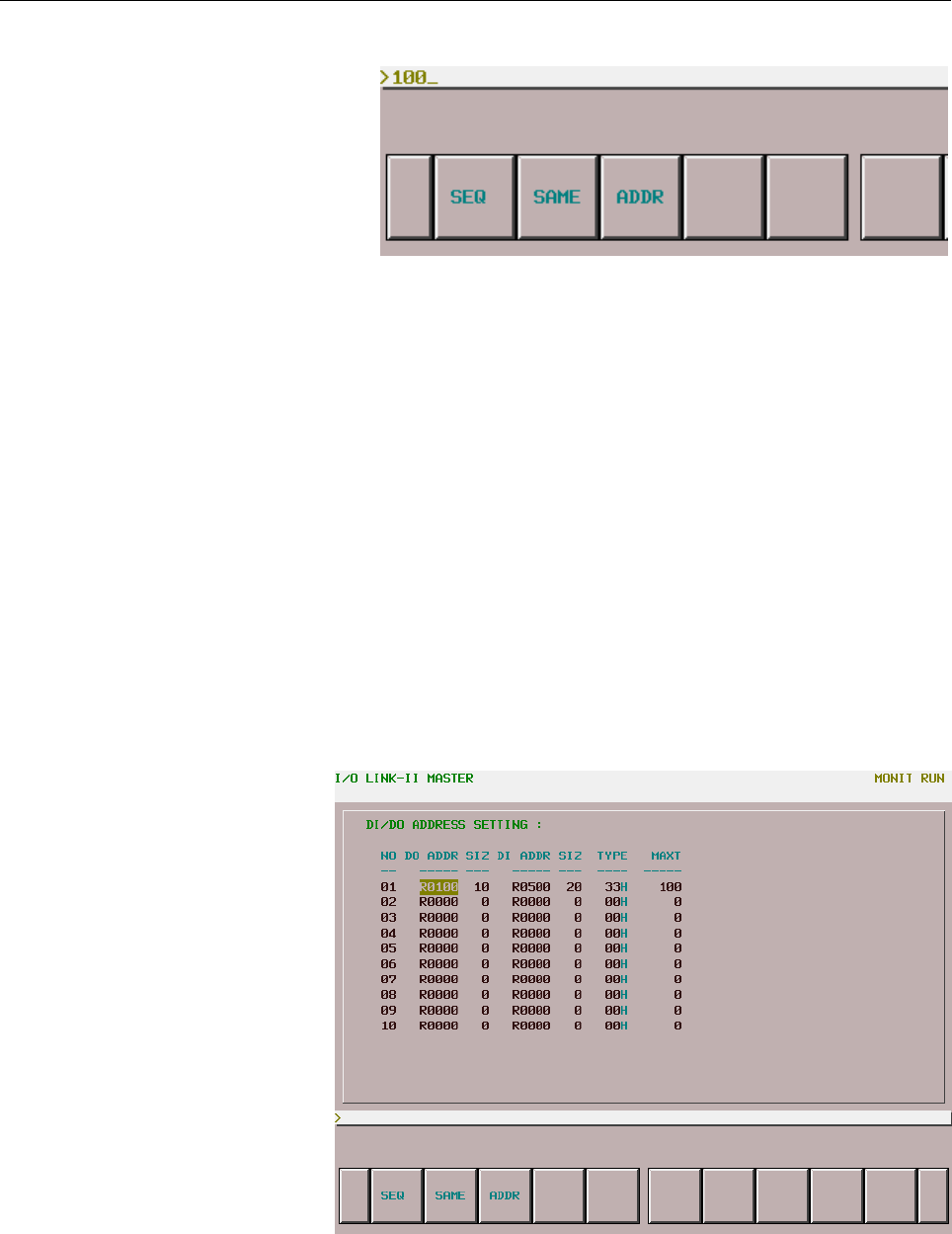

Screen 2-a
(2) Check that the cursor is placed on station #1.
(3) Select this soft key.
Previous page
Next page
