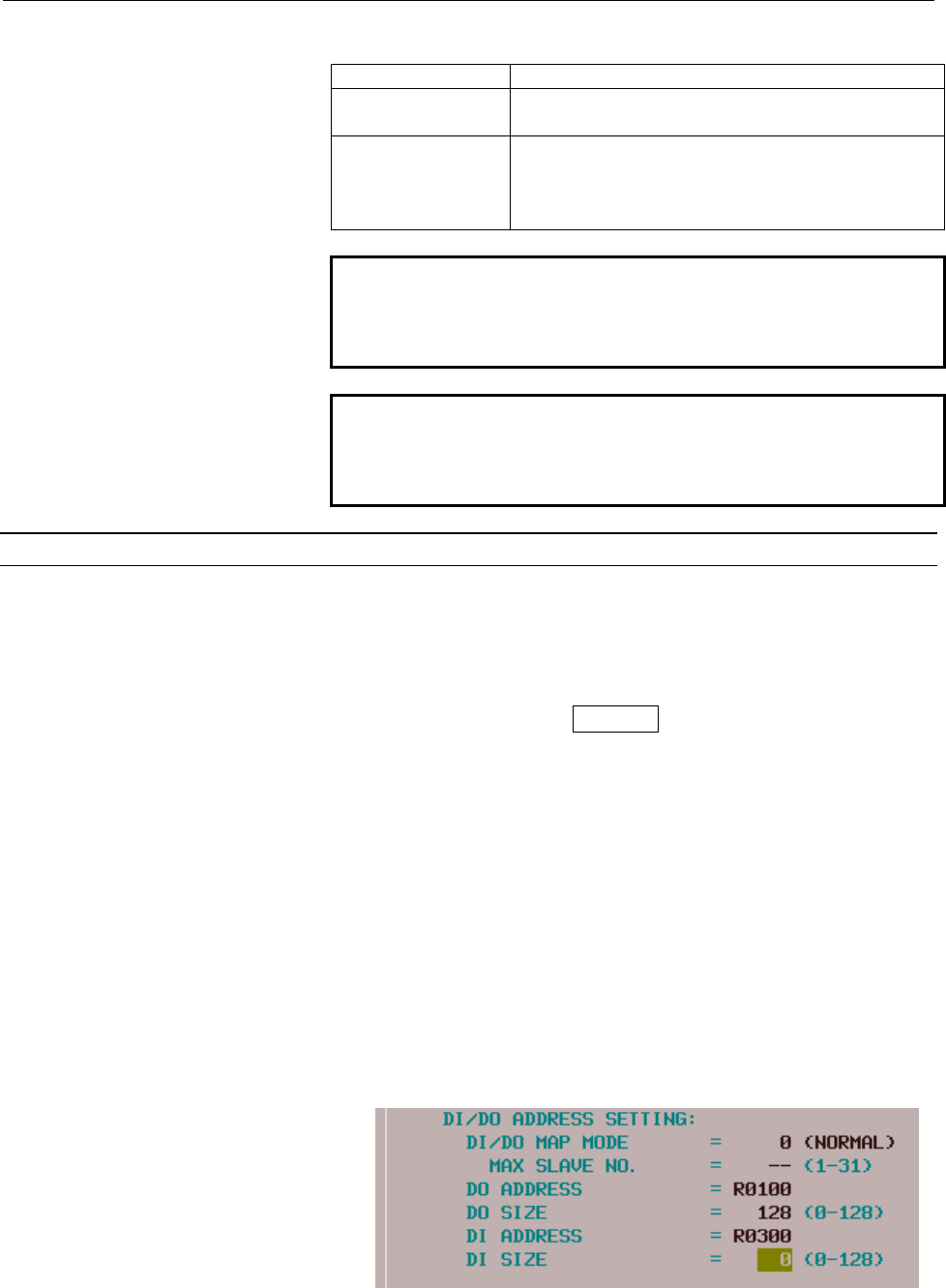

B-62714EN/04 OPERATION 2.LCD-MOUNTED TYPE 16i/18i/21i-A, Power Mate i-D/H
- 63 -
Table III-2-4
Item Description
DI ADDRESS
DI data area start address.
Setting range: R area of the PMC
DI SIZE
DI data area size.
Setting range: 0 to 128(Caution)
(Unit: Bytes)
When DI is not used, set 0.
CAUTION
When using the global I/O transfer function, ensure
that the DI data size and DO data size of each slave
station on the network do not exceed 48 bytes.
NOTE
When using the global I/O transfer function, set
slave station numbers sequentially to allocate an
area efficiently.
Operations of the setting screen
Setting parameters
(1) Place the CNC in the MDI mode.
(2) Press the function key SYSTEM
, then select the soft key [PMC]
to switch to the PMC screen.
(3) Select the soft keys [PMCDGN], [I/OCHK], [IOLNK2], and
[SLAVE] in this order. Screen 2-5 appears.
(4) With the cursor keys, move the cursor to an item for which data
is to be entered.
(5) Enter data with the MDI keys.
(6) Select the soft key [INPUT] to execute the input of data.
Example: Setting 128 in DI SIZE
(a) Move the cursor to MAXT.
Previous page
Next page
