I/O LINK II Connection manual Page 39

Connection manual
B-62714EN/04 OPERATION 1.16/18/21-B, 16/18-C, LCD-MOUNTED TYPE 16i/18i/21i-A/B
- 27 -

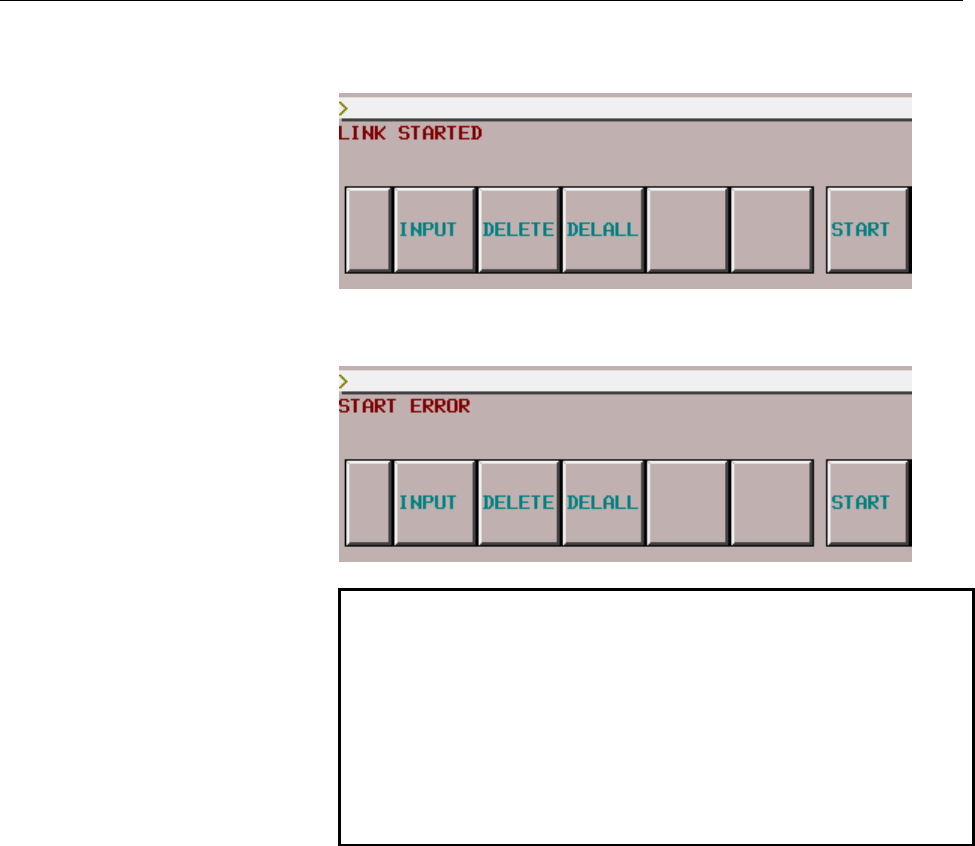

(5) If the settings are correct, LINK STARTED is displayed, and
initialization service is performed.
(6) If a setting item is incorrect, START ERROR is displayed, and
the system waits for the incorrect setting item to be corrected.
CAUTION
When the soft key [START] is selected, the set
parameters are updated, and reset service is also
performed for slave stations #1 to #[MAX SLAVE
NO].
So, the same processing as performed when the
power is turned on again after resetting the network
to the initial state (initialization service for the slave
stations → input/output service) is performed.
