I/O LINK II Connection manual Page 133

Connection manual
B-62714EN/04 CONNECTION 4.STAND-ALONE TYPE 16i/18i/21i-A
- 121 -
(5) Insert the plug into the board, then tighten the machine screw of
the plug. The machine screw of the plug has a tip of + bit and
number 0.
This crimp terminal can connect and crimp two cables with the multi-
drop method.
Crimp terminal extraction
If wires are connected incorrectly, the crimp terminal can be extracted
as described below.
A rod of Φ1 mm can be used for extraction.
Recommended tool: HR31-SC-TP manufactured by Hirose Electric
(1) Press the extraction tool against the mold transformer. (See Fig.
1.)
(2) While pressing the extracting tool against the mold transformer,
tilt the extracting tool to release the extraction protection of the
crimp terminal. (See Fig. 2.)
(3) Pull out the extraction tool.
(4) Pull the wire to extract the crimp terminal.
Mold transformer
Mold transformer
Wire
Wire
Extraction tool
Extraction tool

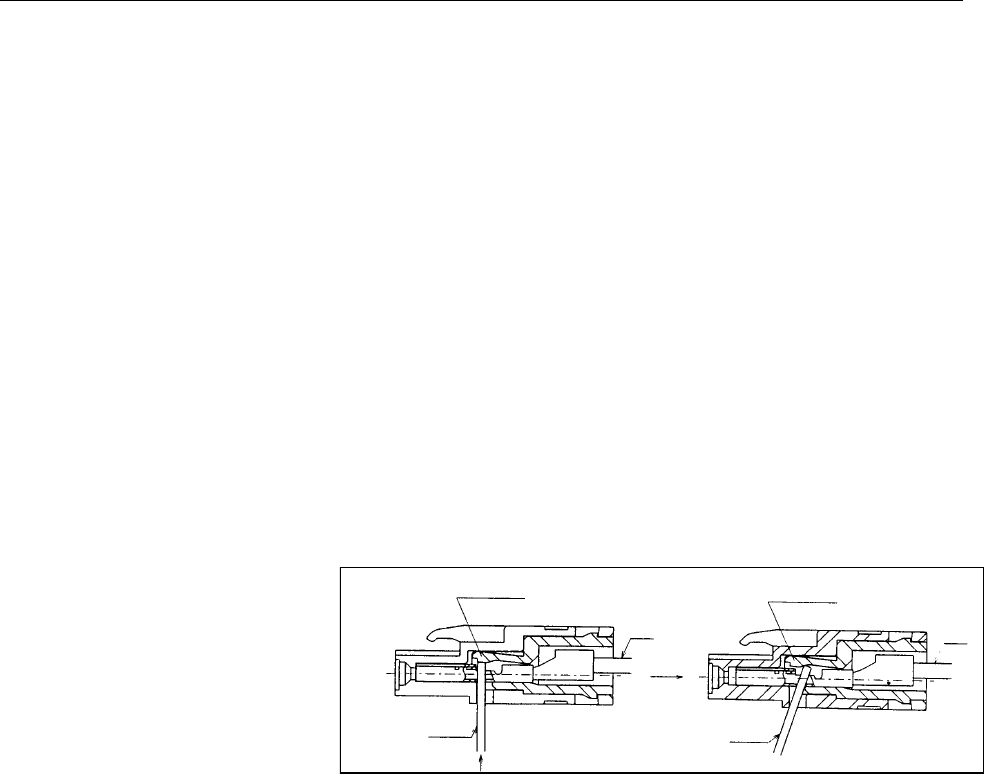

Fig. 1
Fig. 2
Line expansion
When a CNC is to be added to an existing line, another crimp
terminal (A02B-0259-K211) is required.
(1) Extract the crimp terminal from the plug on the CNC at the last
stage of the line.
(2) Remove the existing communication cable from the crimp
terminal.
(3) Crimp the communication cable and the additional
communication cable onto a new crimp terminal, then insert the
new crimp terminal into the plug.
