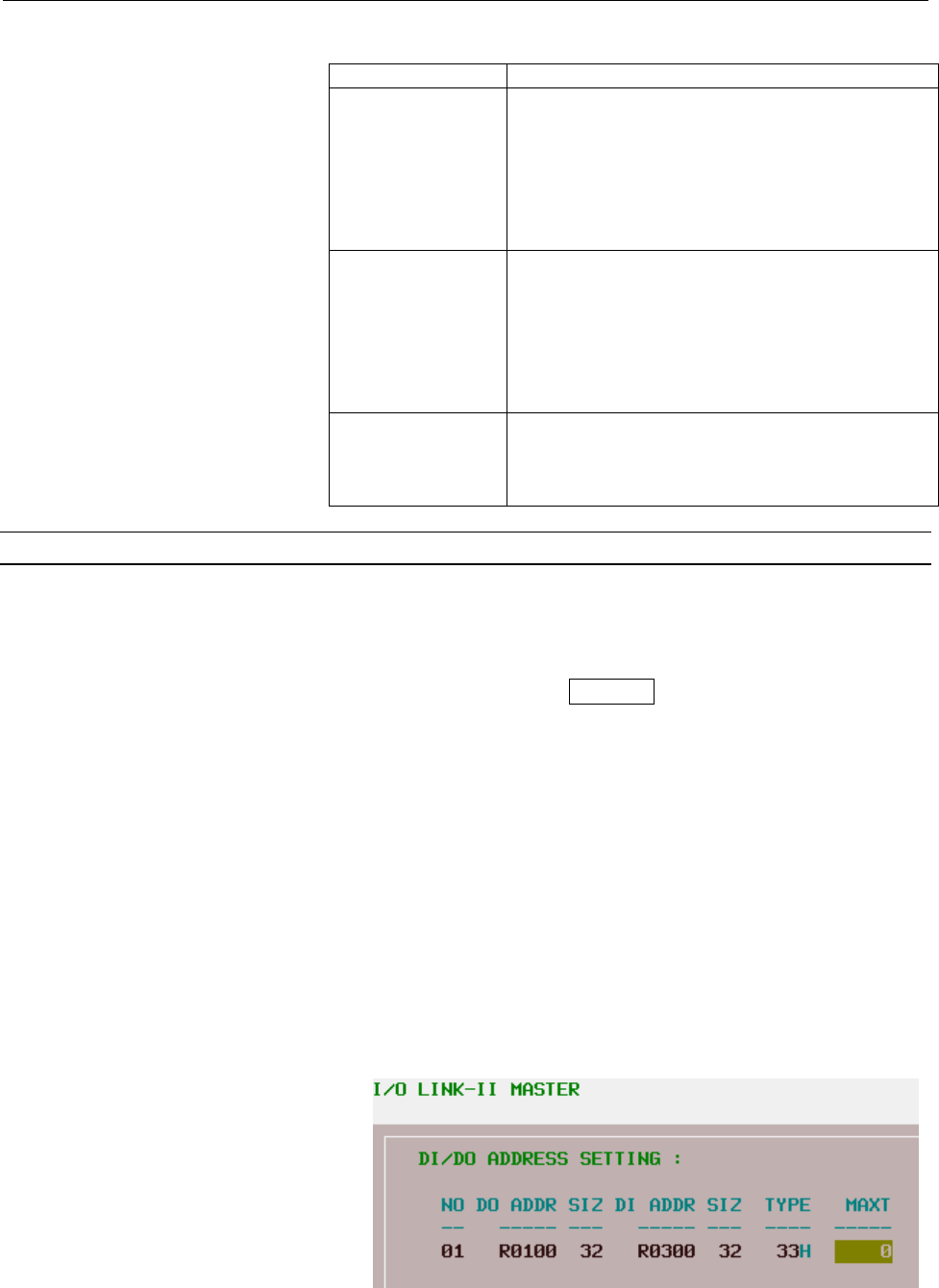

I/O LINK II Connection manual Page 60

Connection manual
2.LCD-MOUNTED TYPE 16i/18i/21i-A, Power Mate i-D/H OPERATION B-62714EN/04
- 48 -
Table III-2-1
Item Description
TYPE
Parameter stypeM for initializing slave stations.
Setting range: 31 to 33 (hexadecimal)
Set one of the following values according to the type
of communication:
- When enabling both DO and DI: 33 (hexadecimal)
- When enabling both DI only: 31 (hexadecimal)
- When enabling both DO only: 32 (hexadecimal)
MAXT
Parameter max_int (slave station communication
monitoring time) for initializing slave stations.
Setting range: 0 to 65535
(Unit: 10 msec)
When no slave station needs to monitor the
communication of the master station, set 0 (for waiting
infinitely).
REFRESH TIME
Interval at which DI data from all slave stations set in
MAX SLAVE NO. is reflected in the R area of the
PMC.
Unit: 1 msec
Operations of the setting screen
Setting parameters
(1) Place the CNC in the MDI mode.
(2) Press the function key SYSTEM
, then select the soft key [PMC]
to switch to the PMC screen.
(3) Select the soft keys [PMCDGN], [I/OCHK], [IOLNK2], and
[MASTER] in this order. Screen 2-2 appears.
(4) With the cursor keys, move the cursor to an item for which data
is to be entered.
(5) Enter data with the MDI keys.
(6) Select the soft key [INPUT] to execute the input of data.
Example: Setting 100 in MAX SLAVE NO.
(a) Move the cursor to MAXT.
Previous page
Next page
