I/O LINK II Connection manual Page 37

Connection manual
B-62714EN/04 OPERATION 1.16/18/21-B, 16/18-C, LCD-MOUNTED TYPE 16i/18i/21i-A/B
- 25 -
Operations of the setting screen
Setting parameters
(1) Place the CNC in the MDI mode.
(2) Press the function key SYSTEM
, then select the soft key [PMC]
to switch to the PMC screen.
(3) Select the soft keys [PMCDGN], [I/OCHK], and [IOLNK2] in
this order. Screen 1-1 appears.
(4) With the cursor keys, move the cursor to an item for which data
is to be entered.
(5) Enter data with the MDI keys.
(6) Select the soft key [INPUT] or press the function key INPUT
to
execute the input of data.

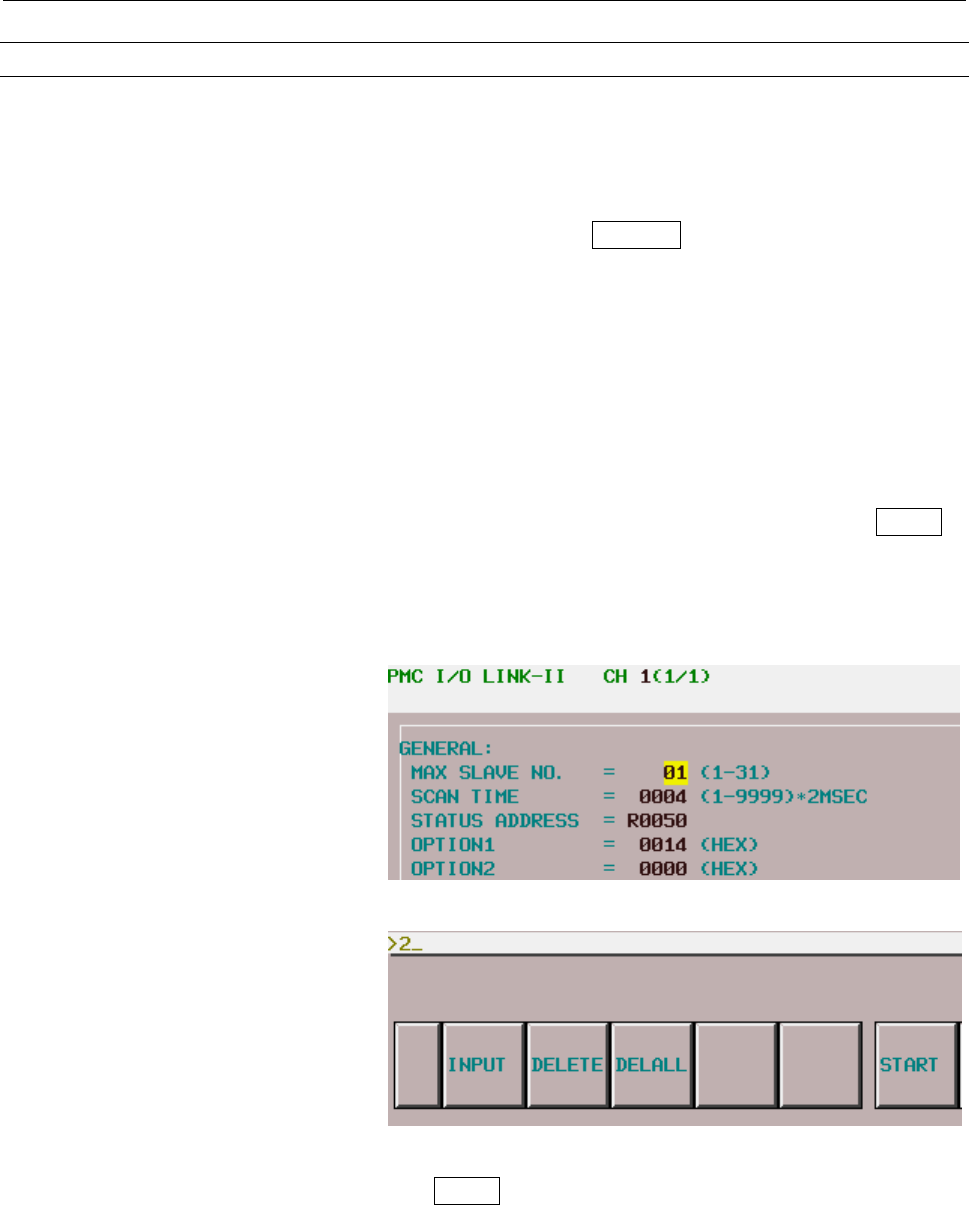

Example: Setting 2 in MAX SLAVE NO.
(a) Move the cursor to MAX SLAVE NO..
(b) Enter 2 with the MDI key.
(c) Select the soft key [INPUT] or press the function key
INPUT
to execute the input of data.
Thus, the set data is stored in the nonvolatile memory on the I/O Link-
II board.
