I/O LINK II Connection manual Page 76

Connection manual
2.LCD-MOUNTED TYPE 16i/18i/21i-A, Power Mate i-D/H OPERATION B-62714EN/04
- 64 -

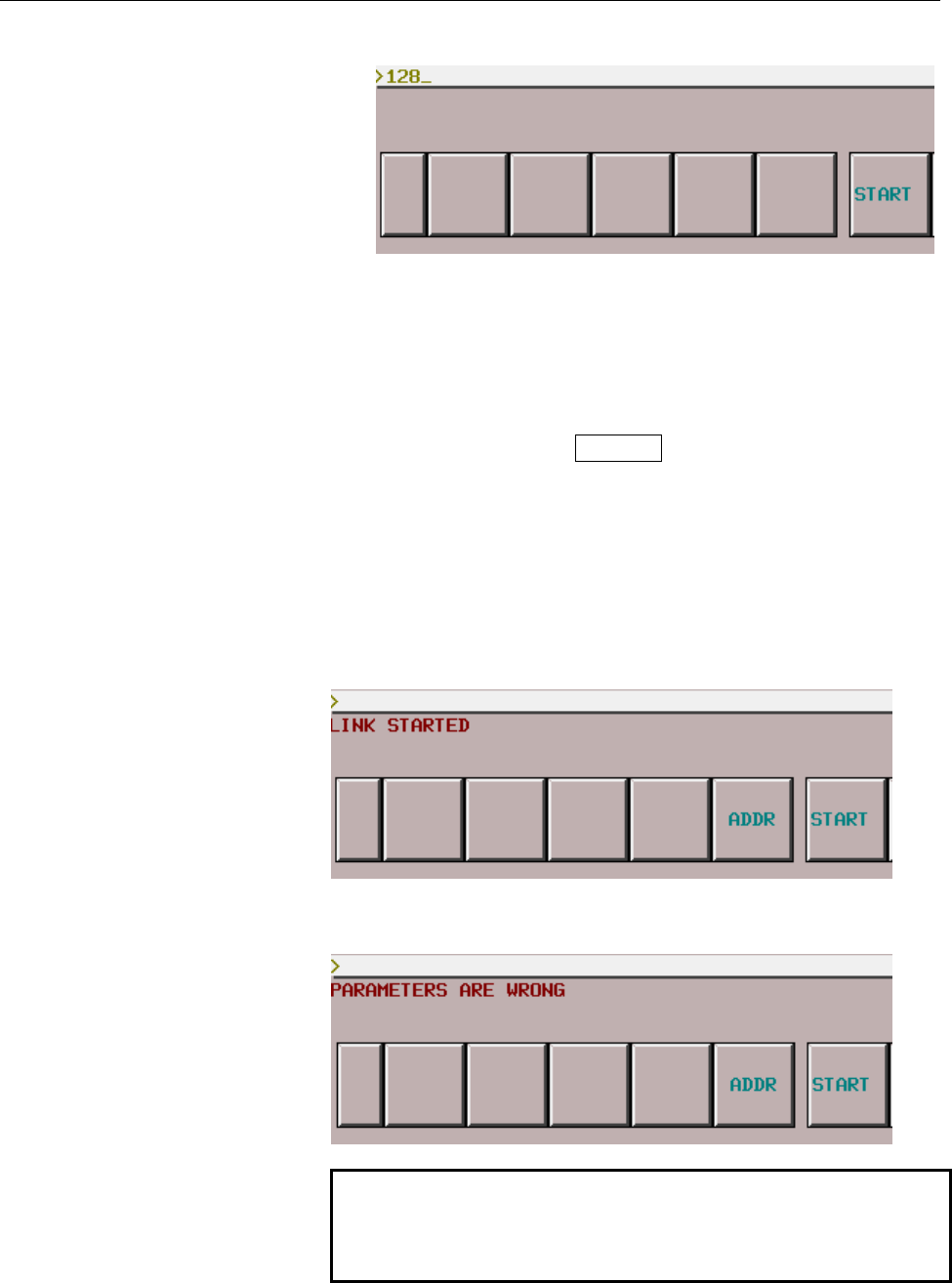

(b) Enter 128 with the MDI keys.
(c) Select the soft key [INPUT] to execute the input of data.
Thus, the set data is stored in the nonvolatile memory of the CNC.
Restart
(1) Place the CNC in the MDI mode.
(2) Press the function key SYSTEM
, then select the soft key [PMC]
to switch to the PMC screen.
(3) Select the soft keys [PMCDGN], [I/OCHK], [IOLNK2], and
[SLAVE] in this order. Screen 2-5 appears.
(4) Select the soft key [START]. The slave function is restarted with
the current settings displayed on Screen 2-5.
(5) If the settings are correct, LINK STARTED is displayed.
(6) If a setting item is incorrect, PARAMETERS ARE WRONG is
displayed.
NOTE
When LINK STARTED is displayed, the slave
station waits for initialization service from the master
station.
