I/O LINK II Connection manual Page 161

Connection manual
B-62714EN/04 CONNECTION 6.Power Mate i-D/H
- 149 -

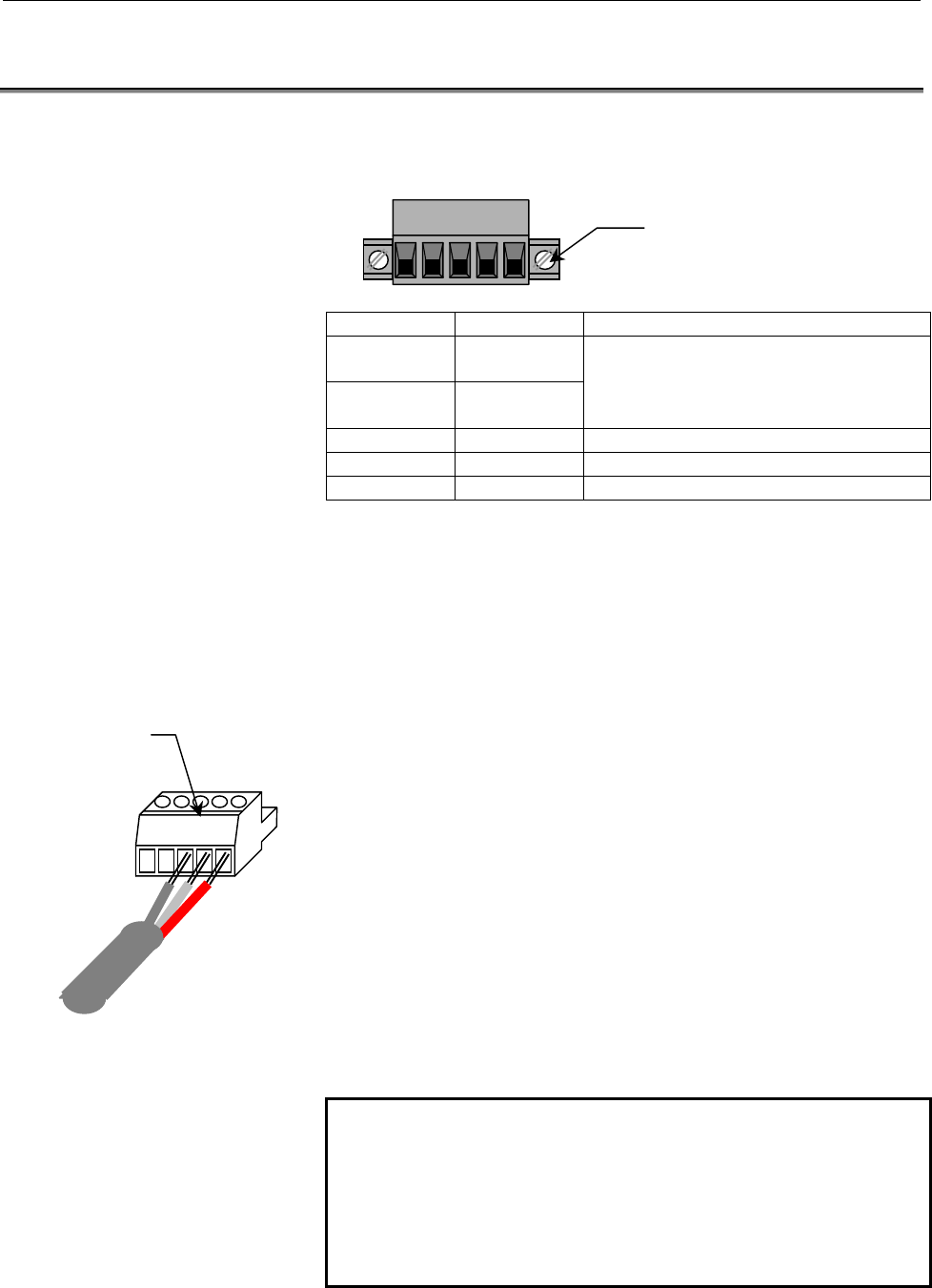

6.3 CABLE CONNECTION (I/O Link-II SLAVE BOARD)
Connector
Mounting
screw
Connector pin assignment
TBA 1 2 3 4 5
Terminal No. Signal name Signal type
1T1
2T2
A terminating resistor is connected.
(T1/T2 connected)
No terminating resistor is connected.
(T1/T2 open)
3 A Data signal A
4 B Data signal B
5 SG Signal ground
Cable connector:
Manufactured by phoenix Contact
MSTB2.5/5-STF-5.08 (delivered with the product)
Applicable wire material AWG24-12
Communication cable connection
Detach the cable connector from the board by removing the mounting
screws. Connect the communication cable to the connector according
to the procedure below.
(1) Peel off the cable cover, then cut off an excess shield.
(2) Peel off the cover of each wire to match the length of the crimp
terminal(Note).
(3) Loosen the cable securing screws of the connector so that the
wires can be inserted easily.
(4) Insert the signal wires into the corresponding holes of the
terminal block of the connector.
(5) Secure the wires by tightening the cable securing screws of the
connector.
(6) Insert the connector with the cable attached into the connector on
the board side.
(7) Install the connector by tightening the mounting screws of the
connector.
NOTE
A crimp terminal can also be used.
Twist the wires from which the cover is peel off, then
install a crimp terminal.
The following crimp terminal is recommended:
- AI series manufactured by Phoenix Contact
(Special tool ZA3)
Screw for
securing a
cable
