PROGRAMMING7. COORDINATE SYSTEM

B–63504EN/01

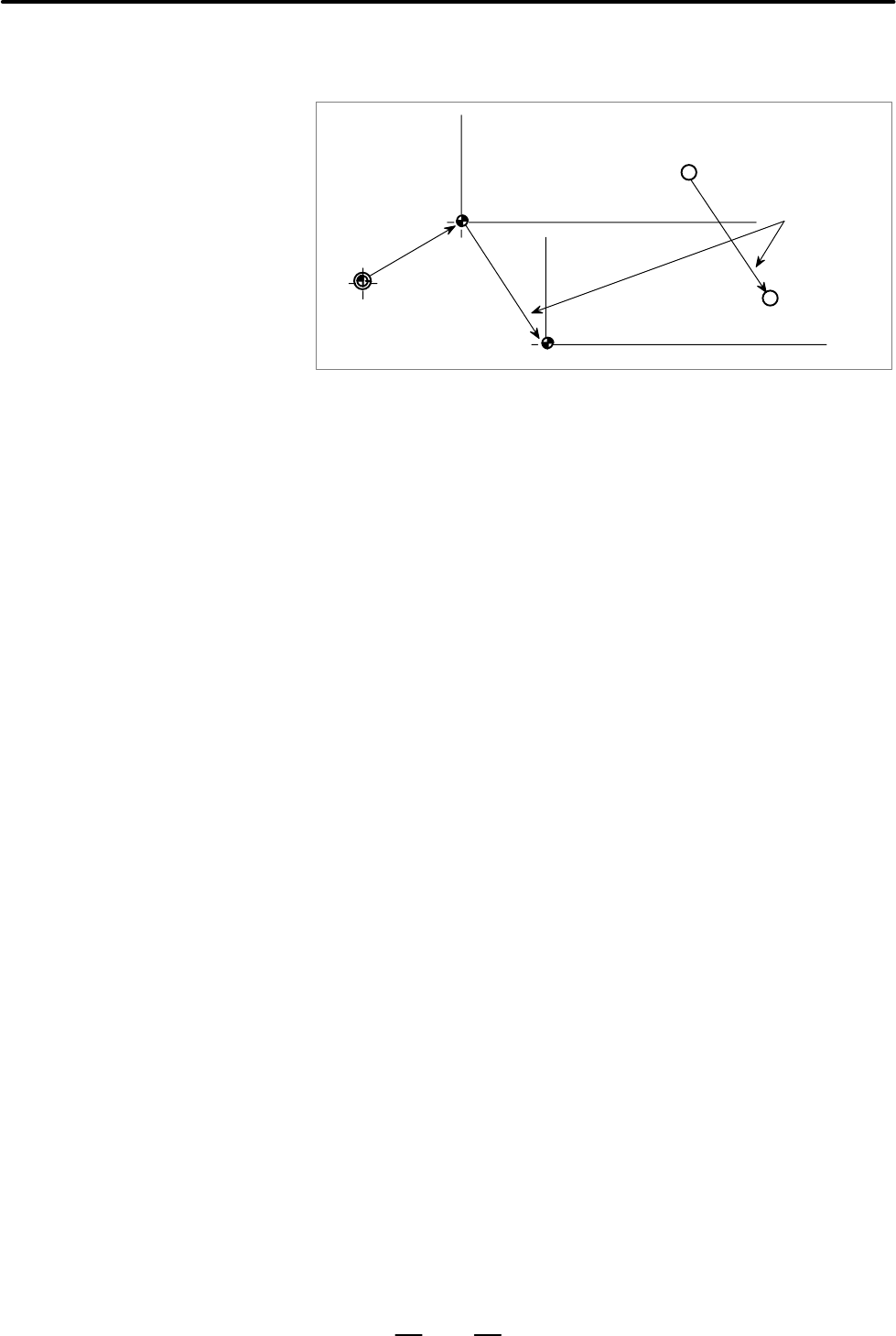

In the case of (a) above, the workpiece coordinate system is shifted by the

amount of movement during manual intervention.

WZn

WZo

G54 workpiece coordinate

system before manual

intervention

Workpiece zero

point offset

value

G54 workpiece coordinate

system after manual intervention

Amount of movement

during manual

intervention

Machine zero point

In the operation above, a workpiece coordinate system once shifted can

be preset using G code specification or MDI operation to a workpiece

coordinate system displaced by a workpiece zero point offset value from

the machine zero point. This is the same as when manual reference

position return operation is performed on a workpiece coordinate system

that has been shifted. In this example, such G code specification or MDI

operation has the effect of returning workpiece coordinate system zero

point WZn to the original zero point WZo, and the distance from WZo to

Pn is used to represent the current position in the workpiece coordinate

system.

Bit 3 (PPD) of parameter No. 3104 specifies whether to preset relative

coordinates (RELATIVE) as well as absolute coordinates.

When using the workpiece coordinate system preset function, cancel

compensation modes: cutter compensation, tool length compensation,

and tool offset. If the function is executed without cancelling these

modes, compensation vectors are temporarily cancelled.

The workpiece coordinate system preset function is not executed during

program restart.

Restrictions

D Cutter compensation,

tool length

compensation, tool

offset

D Program restart
