Series 0i - TA Operators manual Page 39

Operators manual

Page of 714

/ 714

PROGRAMMING

B–63504EN/01

1. GENERAL

Movement of the tool at a specified speed for cutting a workpiece is called

the feed.

Tool

Workpiece

Chuck

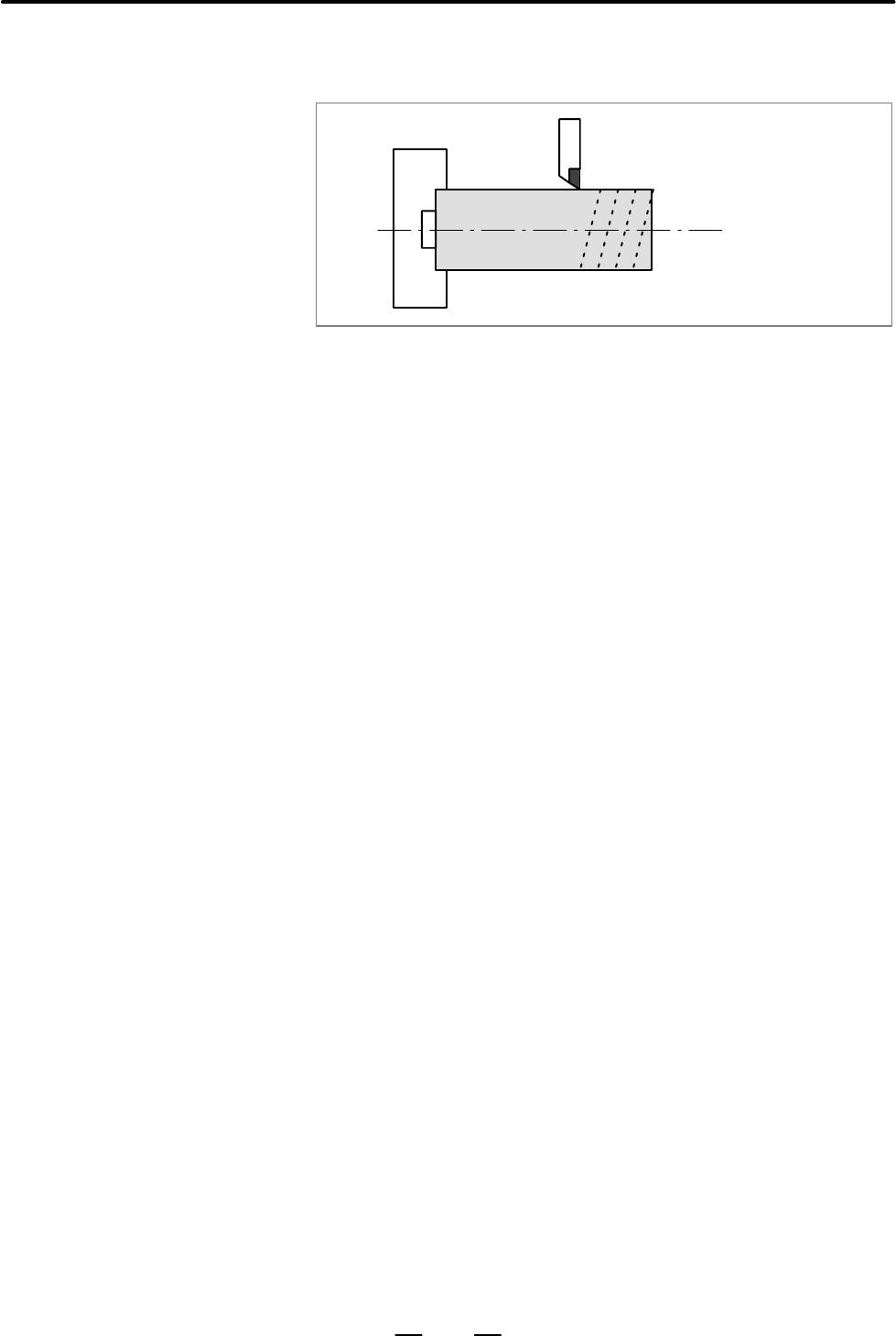

Fig. 1.2 (a) Feed function

Feedrates can be specified by using actual numerics.

For example, the following command can be used to feed the tool 2 mm

while the workpiece makes one turn :

F2.0

The function of deciding the feed rate is called the feed function (See

II–5).

1.2

FEED–

FEED FUNCTION
