Series 0i - TA Operators manual Page 445

Operators manual

Page of 714

/ 714

OPERATION

B–63504EN/01

4. AUTOMATIC OPERATION

421

The subprogram call function is provided to call and execute subprogram

files stored in an external input/output device (Handy File, FLOPPY

CASSETTE, FA Card) during memory operation.

When the following block in a program in CNC memory is executed, a

subprogram file in the external input/output device is called:

1. FS10/11 tape format

M198 Pffff L∆∆∆∆ ;

Number of repetitions

File number for a file in the I/O device

I/O devices call instruction

2. Other than FS10/11 tape format

M198 Pffff ∆∆∆∆ ;

Number of repetitions

I/O devices call instruction

File number for a file

in the I/O device

The subprogram call function is enabled when parameter No. 0102 for the

input/output device is set to 3. Either format 1 or 2 can be used. A

different M code can be used for a subprogram call depending on the

setting of parameter No. 6030. In this case, M198 is executed as a normal

M code. The file number is specified at address P. If the SBP bit (bit 2)

of parameter No. 3404 is set to 1, a program number can be specified.

When a file number is specified at address P, Fxxxx is indicated instead

of Oxxxx.

Programs in memory

execution mode

N1 ;

N2 ; 0123 .... File number

N3 M198 P0003 0123 ;

N4 ;

N5 ;

: First call/return

: Second call/return

: Third call/return

Program in the external

input/output device

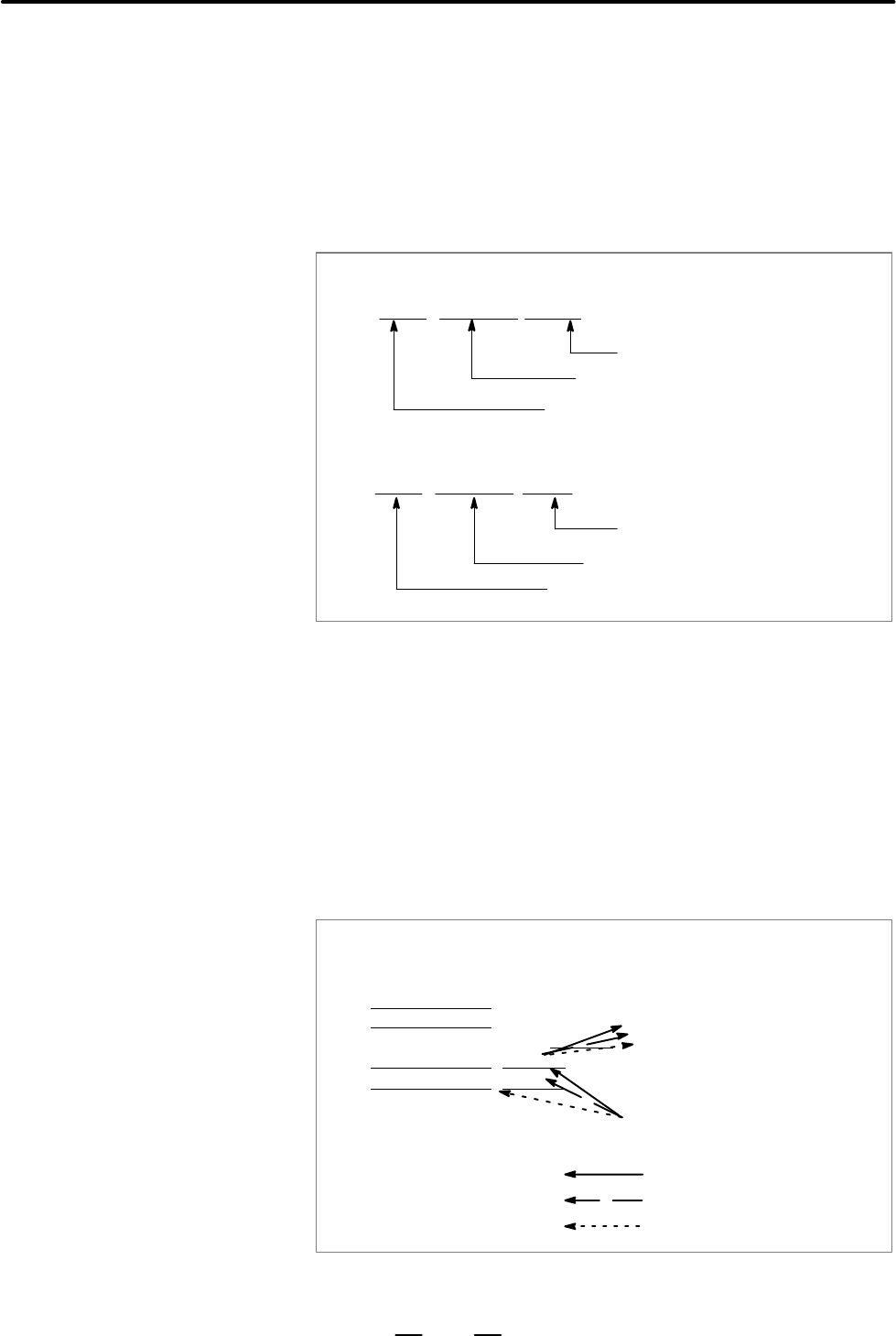

Fig. 4.5 Program Flow When M198 is Specified

4.5

SUBPROGRAM CALL

FUNCTION (M198)

Format

Explanation
