PROGRAMMING

B–63504EN/01

14. COMPENSATION FUNCTION

185

There are two types of offset. One is tool wear offset and the other is tool

geometry offset.

The tool path is offset by the X, Y, and Z wear offset values for the

programmed path. The offset distance corresponding to the number

specified by the T code is added to or subtracted from the and position of

each programmed block.

This block contains the offset

command with T code

Tool path after offset

Programmed path

Compensation by offset X, Z (offset vector)

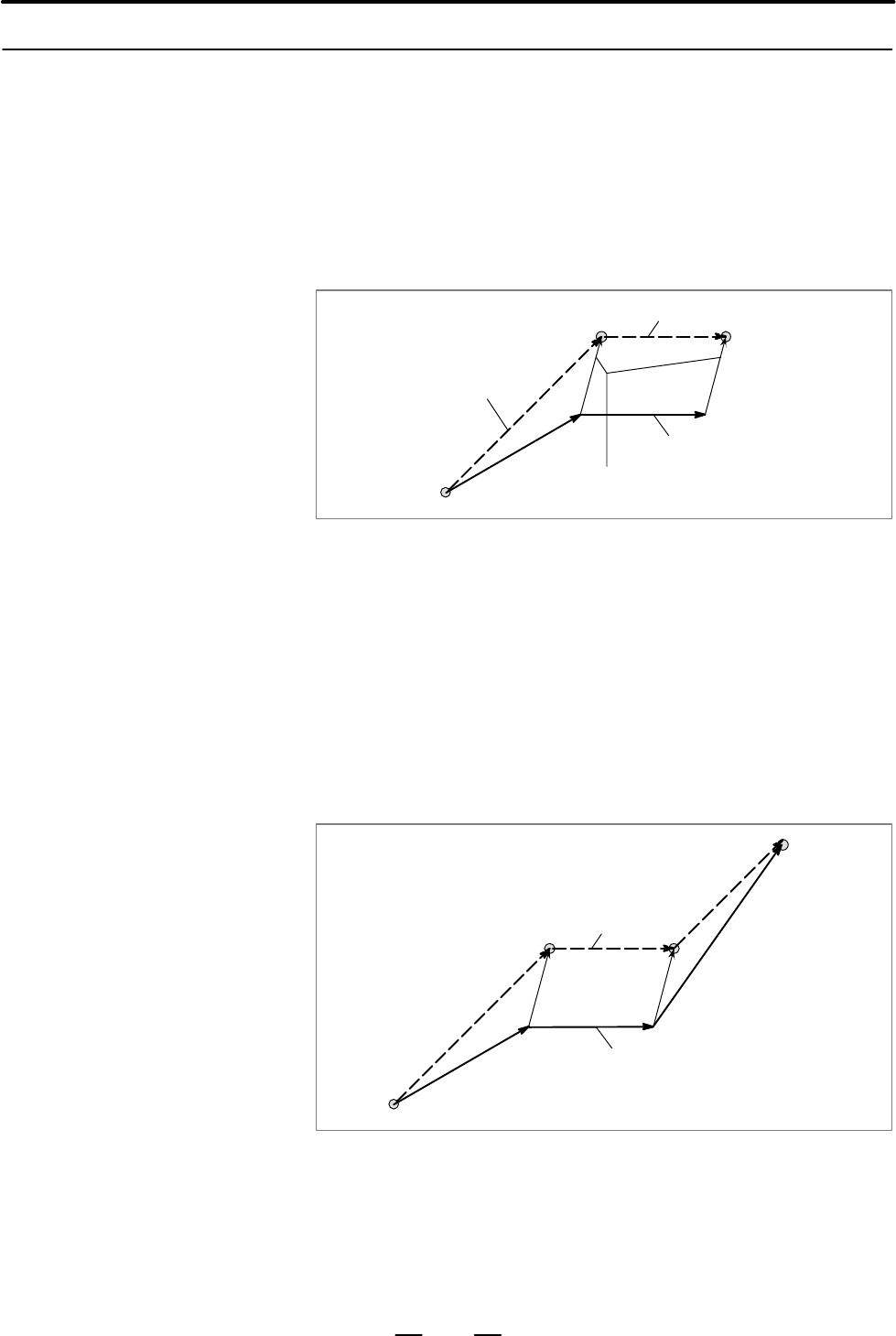

Fig. 14.1.5 (a) Movement of offset (1)

In Fig. 14.1.5 (a), the vector with offset X, Y, and Z is called the offset

vector. Compensation is the same as the offset vector.

Offset is cancelled when T code offset number 0 or 00 is selected. At the

end of the cancelled block, the offset vector becomes 0.

N1 X50.0 Z100.0 T0202 ; Creates the offset vector corresponding

to offset number 02

N2 X200.0 ;

N3 X100.0 Z250.0 T0200 ;Specifying offset number 00 deletes the

offset vector.

Tool path after offset

Programmed path

Fig. 14.1.5 (b) Movement of offset (2)

When the power is first turned on , and the reset key on the MDI units is

pushed or the reset signal is input to the CNC from the machine tool, the

offset is cancelled.

Parameter LVK (No. 5003#6) can be set so that offset will not be cancelled

by pressing the reset key or by reset input.

14.1.5

Offset

Explanations

D Tool wear offset

D Offset vector

D Offset cancel
