8. DATA INPUT/OUTPUT

B–63504EN/01

OPERATION

466

Punch operation can be performed in the same way as in the foreground.

This function alone can punch out a program selected for foreground

operation.

<O> (Program No.)

[PUNCH] [EXEC]: Punches out a specified program.

<O> H–9999I

[PUNCH] [EXEC]: Punches out all programs.

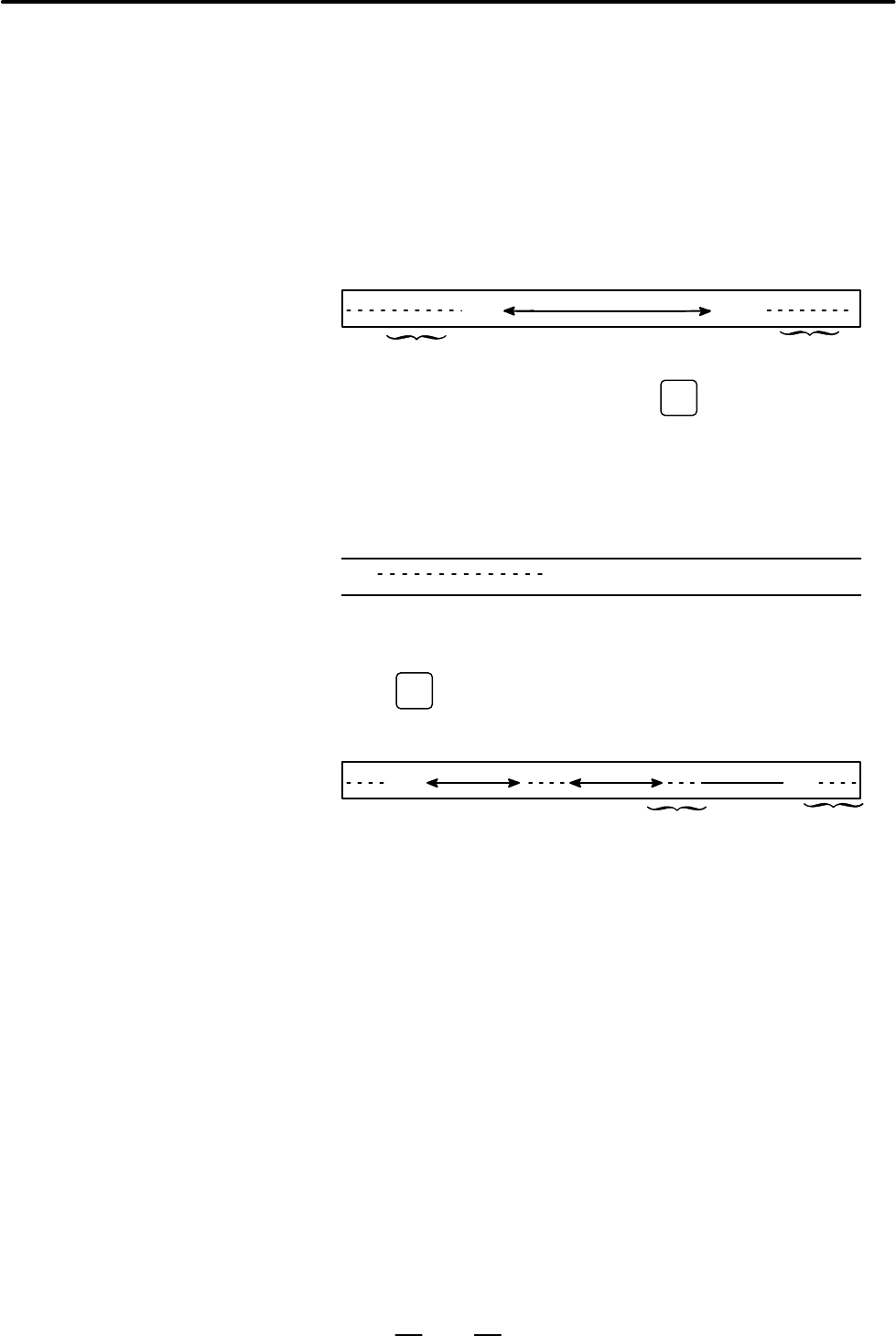

A program is output to paper tape in the following format:

(%)

Program

(%)

Feed of 3 feet

If three–feet feeding is too long, press the

CAN

key during feed

punching to cancel the subsequent feed punching.

A space code for TV check is automatically punched.

When a program is punched in ISO code, two CR codes are punched after

an LF code.

LF CR CR

By setting NCR (bit 3 of parameter No. 0100), CRs can be omitted so that

each LF appears without a CR.

Press the

RESET

key to stop punch operation.

All programs are output to paper tape in the following format.

(%)

Program Program Program

(%)

Feed of 1–feet

Feed of 3–feet

The sequence of the programs punched is undefined.

D Punching programs in

the background

Explanations

(Output to an NC tape)

D Format

D TV check

D ISO code

D Stopping the punch

D Punching all programs
