OPERATION12. GRAPHICS FUNCTION

B–63504EN/01

616

10 Resume the previous operation. The part of the drawing specified

with the zoom cursors will be magnified.

0001

00012

X 200.000

Z 200.000

S 0.81

MEM STRT **** FIN 12:12:24

[ G.PRM ][ GRAPH ][ ][ ][ ]

11 To display the original drawing, press the [NORMAL] soft key, then

start automatic operation.

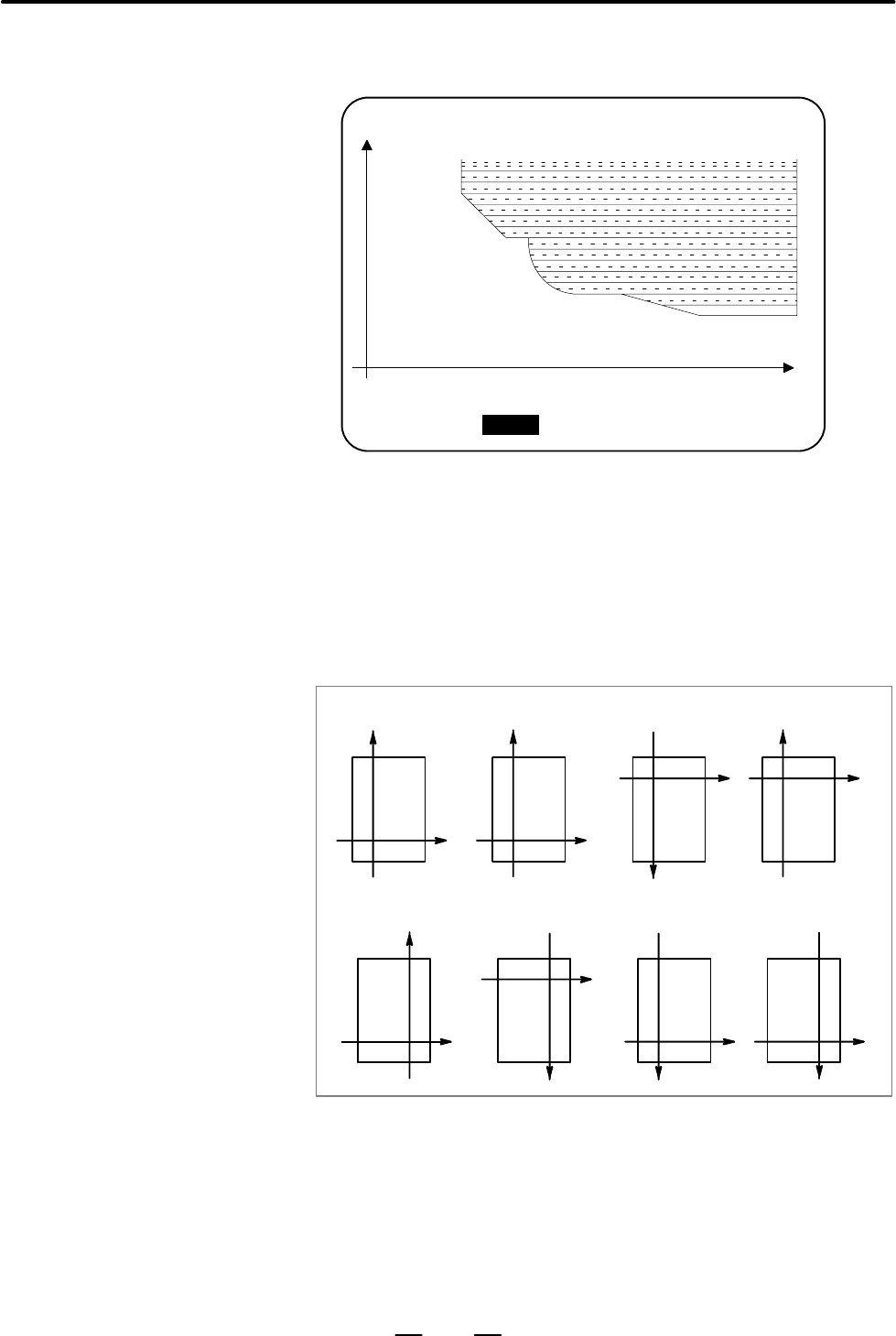

Parameter No. 6510 is used to set a drawing coordinate system for using

the graphic function. The relationships between setting values and

drawing coordinate systems are indicated below. With two–path control,

a different drawing coordinate system can be selected for each tool post.

Setting value=0 Setting value=1 Setting value=2 Setting value=3

Setting value=4 Setting value=5 Setting value=6 Setting value=7

Explanation

D Setting drawing

coordinate systems
