MAINTENANCE

B–63504EN/01

1. METHOD OF REPLACING BATTERY

633

The battery is connected in either of 2 ways as follows.

Method 1: Attach the lithium battery to the SVM.

Use the battery: A06B–6073–K001.

Method 2: Use the battery case (A06B–6050–K060).

Use the battery: A06B–6050–K061 or D–size alkaline

battery.

Method Item

Ordering

specification

Method 1 Battery (Lithium battery) A06B–6073–K001

Method 2 Battery (4 pieces of D–size alkaline battery) A06B–6050–K061

The battery is connected in either of 2 ways as follows.

Built the lithium (A06B–6073–K001) battery in the SVM.

[Attachment procedure]

(1)Check the item 1 to 4 of ”Replacement procedure”.

(2)Remove a battery cover from SVM.

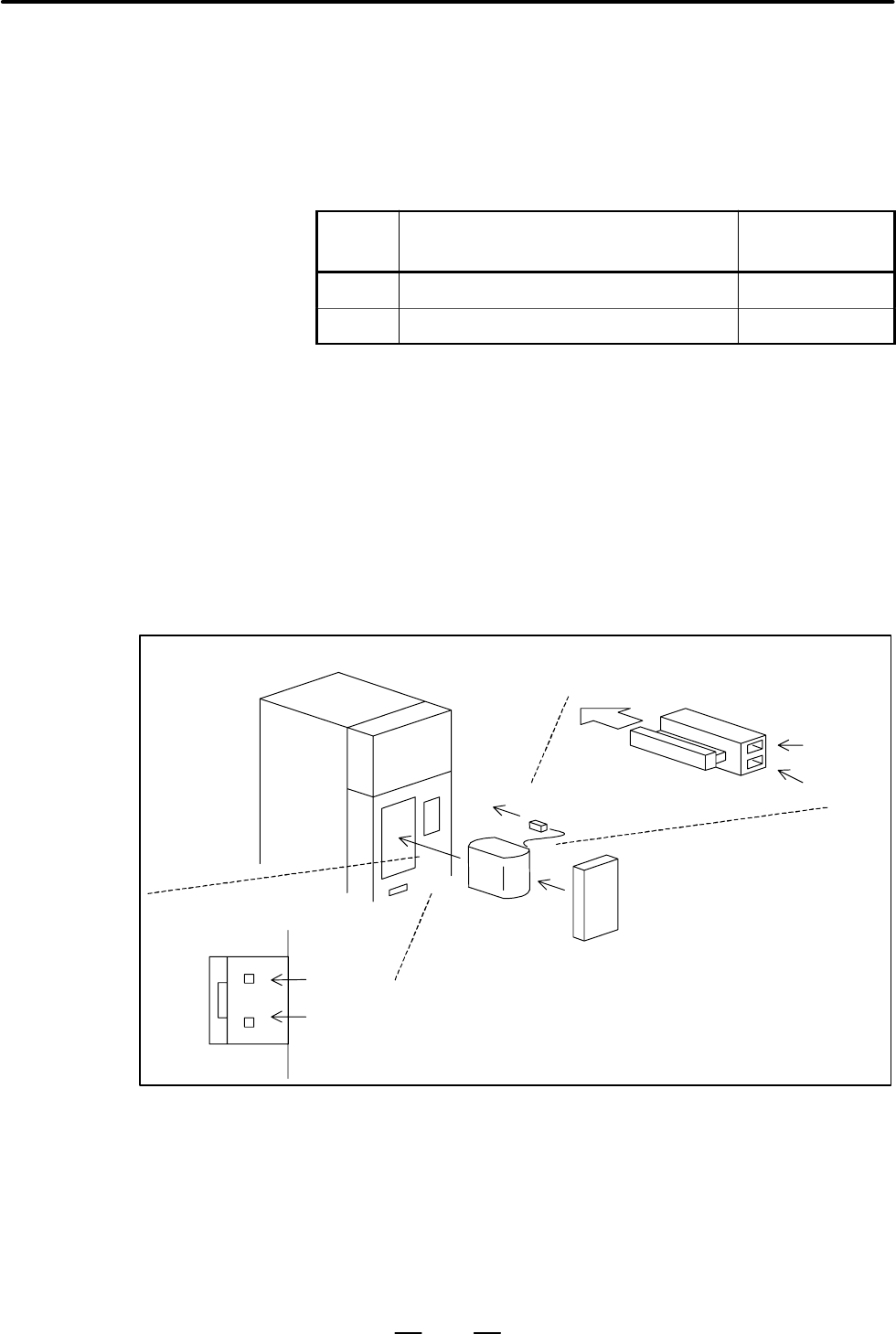

(3)Attach the battery as shown below.

(4)Re–attach the cover.

(5)Connect the connector of battery with CX5X or CX5Y of SVM.

SVM

CX5X, CX5Y

+6V

Battery

Battery cover

Connector

Inserting way

Cable side

Red: +6V

Black: 0V

SERVO AMPLIFIER Alfa

series (SVM)

D Attach the lithium battery

to the SVM. (Method 1)
