PROGRAMMING14. COMPENSATION FUNCTION

B–63504EN/01

184

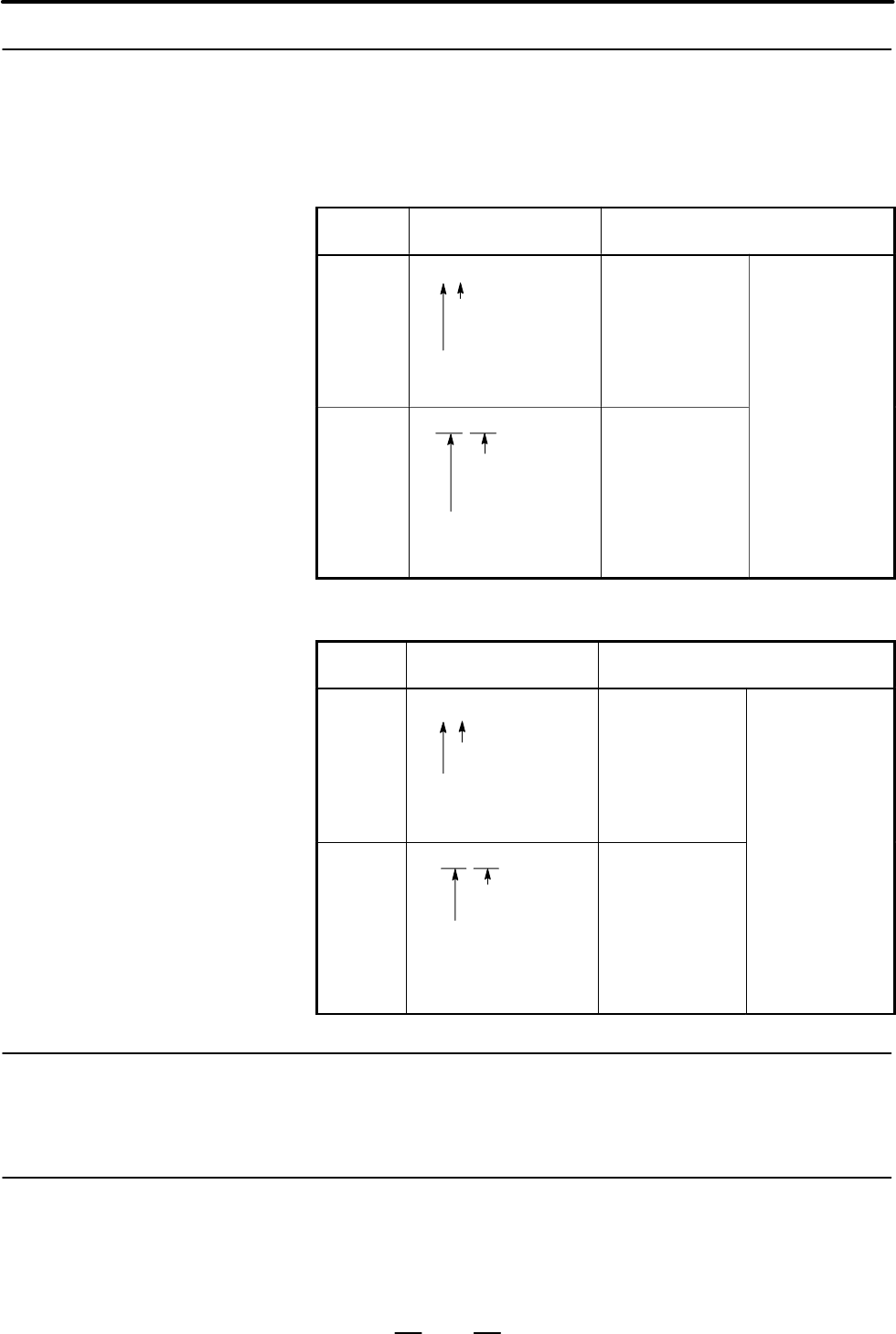

There are two methods for specifying a T code as shown in Table 14.1.2

(a) and Table 14.1.2 (b).

Table 14.1.2 (a)

Kind of

T code

Meaning of T code

Parameter setting for specifying of

offset No.

2–digit

command

T f f

Tool wear and tool

geometry offset

number

Tool selection

When LD1, bit 0 of

parameter

No.5002, is set to

1, a tool wear off-

set number is spe-

cified with the last

digit of a T code.

When LGN, bit 1

of parameter

No.5002, is set to

0, the tool geome-

try offset number

and tool wear off-

set number speci-

4–digit

command

T ff ff

Tool wear and tool

geometry offset

number

Tool selection

When LD1, bit 0 of

parameter

No.5002, is set to

0, a tool wear off-

set number is spe-

cified with the last

two digits of a T

code.

fied for a certain

tool are the same.

Table 14.1.2 (b)

Kind of

T code

Meaning of T code

Parameter setting for specifying of

offset No.

2–digit

command

T f f

Tool wear offset

number

Tool selection and tool

geometry offset num-

ber

When LD1, bit 0 of

parameter

No.5002, is set to

1, a tool wear off-

set number is spe-

cified with the last

digit of a T code.

When LGN, bit 1

of parameter

No.5002, is set to

1, the tool geome-

try offset number

and tool wear off-

set number speci-

4–digit

command

T ff ff

Tool wear offset

number

Tool selection and

tool geometry offset

number

When LD1, bit 0 of

parameter

No.5002, is set to

0, a tool wear off-

set number is spe-

cified with the last

two digits of a T

code.

fied for a certain

tool are the same.

Tool selection is made by specifying the T code corresponding to the tool

number. Refer to the machine tool builder’s manual for the relationship

between the tool selection number and the tool.

Tool offset number has two meanings.

It is specifies the offset distance corresponding to the number that is

selected to begin the offset function. A tool offset number of 0 or 00

indicates that the offset amount is 0 and the offset is cancelled.

14.1.2

T Code for Tool Offset

Format

D Lower digit of T code

specifies geometry and

wear offset number

D Lower digit of T code

specifies wear offset

number and higher digit

number specifies tool

selection number and

geometry offset number

14.1.3

Tool Selection

14.1.4

Offset Number
