PROGRAMMING

B–63504EN/01

14. COMPENSATION FUNCTION

197

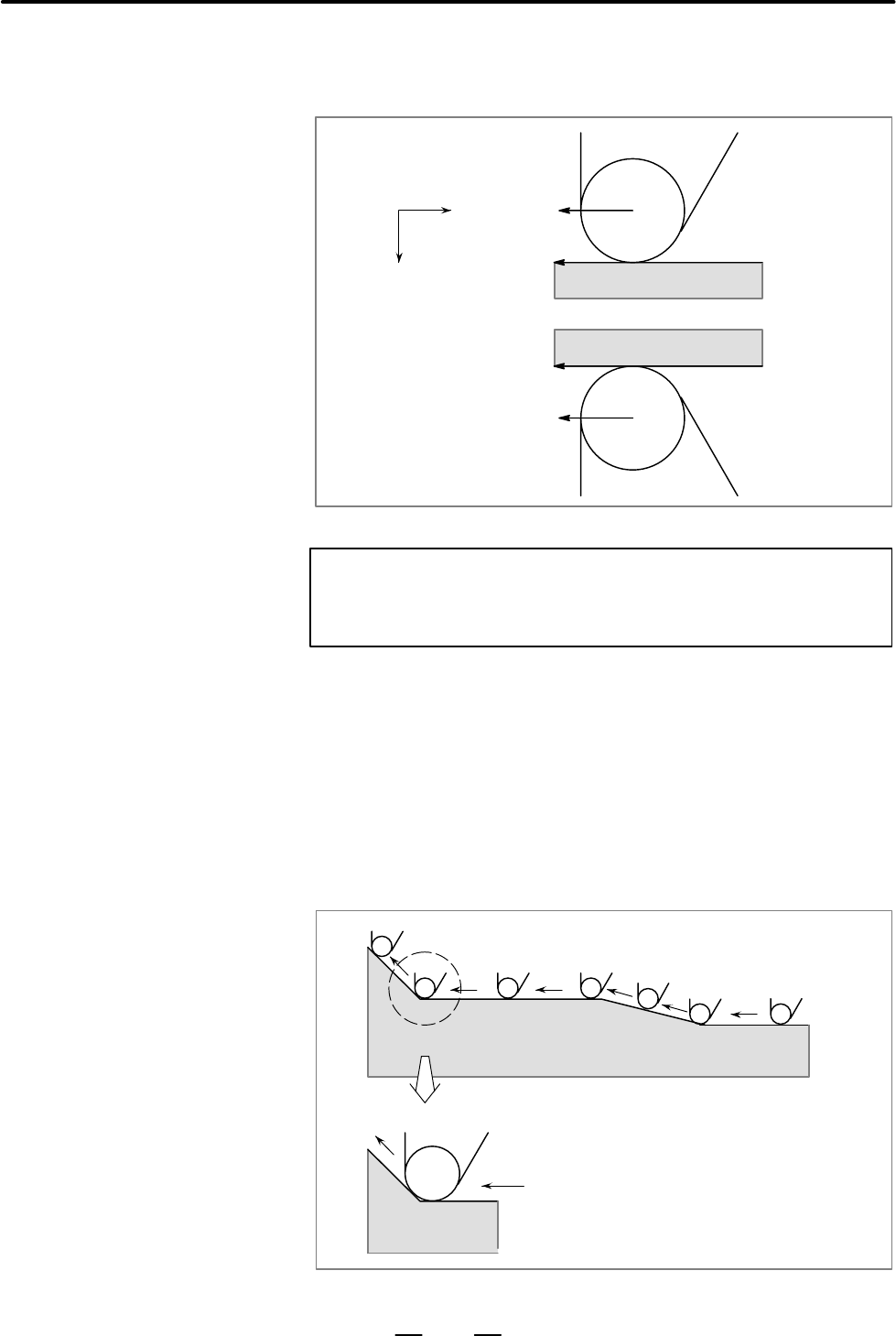

The workpiece position can be changed by setting the coordinate system

as shown below.

Workpiece

X axis

Z axis

G41 (the workpiece is

on the left side)

G42 (the workpiece is

on the right side)

Note

NOTE

If the tool nose radius compensation value is negative, the

workpiece position is changed.

G40, G41, and, G42 are modal.

Don’t specify G41 while in the G41 mode. If you do, compensation will

not work properly.

Don’t specify G42 while in the G42 mode for the same reason.

G41 or G42 mode blocks in which G41 or G42 are not specified are

expressed by (G41) or (G42) respectively.

When the tool is moving, the tool nose maintains contact with the

workpiece.

(G42)

(G42) (G42)

Enlarged

diagram

D Tool movement when the

workpiece position does

not change
