12. GRAPHICS FUNCTION

615

6 Automatic or manual operation is started and machine movement is

drawn on the screen.

0001

00021

X 200.000

Z 200.000

MEM STRT **** FIN 12:12:24

[ G.PRM ][ ][ GRAPH ][ ZOOM ][ (OPRT) ]

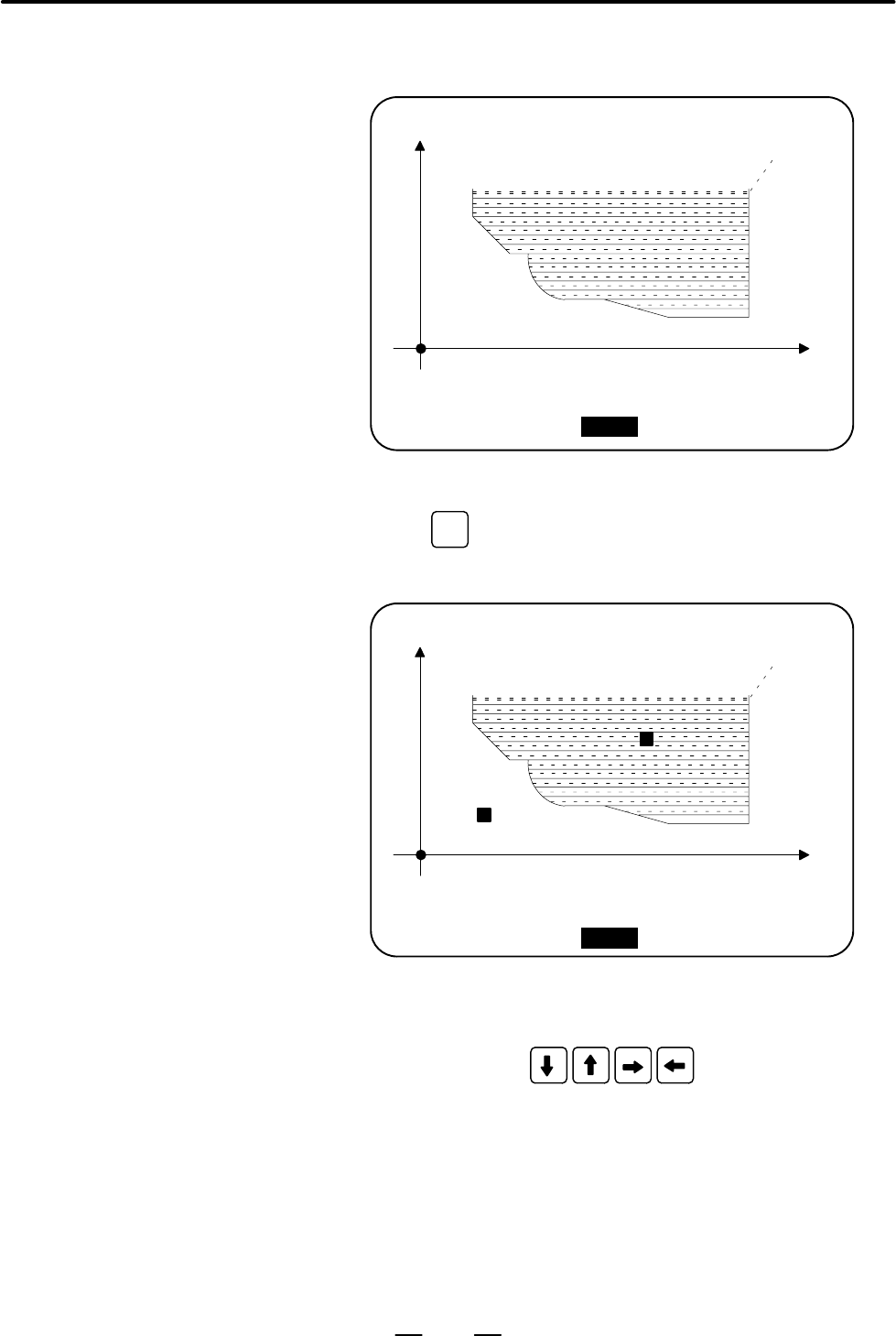

Part of a drawing on the screen can be magnified.

7 Press the

GRAPH

function key, then the [ZOOM] soft key to display a

magnified drawing. The magnified–drawing screen contains two

zoom cursors (J)

0001

00021

X 200.000

Z 200.000

S 0.55

W150000

D 150000

MEM STRT **** FIN 12:12:24

[ G.PRM ][ ][ GRAPH ][ ZOOM ][ (OPRT) ]

A rectangle that has one of its diagonals defined by the two zoom

cursors is magnified to the full size of the screen.

8 Using the cursor keys

, move the zoom cursors

to specify a diagonal for the new screen. Pressing the [HI / LO] soft

key toggles the zoom cursor to be moved.

9 To make the original drawing disappear, press

[EXEC].

D Magnifying drawings
