PROGRAMMING9. SPINDLE SPEED FUNCTION

B–63504EN/01

100

G96 (constant surface speed control command) is a modal G code. After

a G96 command is specified, the program enters the constant surface

speed control mode (G96 mode) and specified S values are assumed as a

surface speed. A G97 command cancels the G96 mode.When constant

surface speed control is applied, a spindle speed higher than the value

specified in G50S_; (maximum spindle speed) is clamped at the

maximum spindle speed. When the power is turned on, the maximum

spindle speed is not yet set and the speed is not clamped.S (surface speed)

commands in the G96 mode are assumed as S = 0 (the surface speed is 0)

until M03 (rotating the spindle in the positive direction) or M04 (rotating

the spindle in the negative direction) appears in the program.

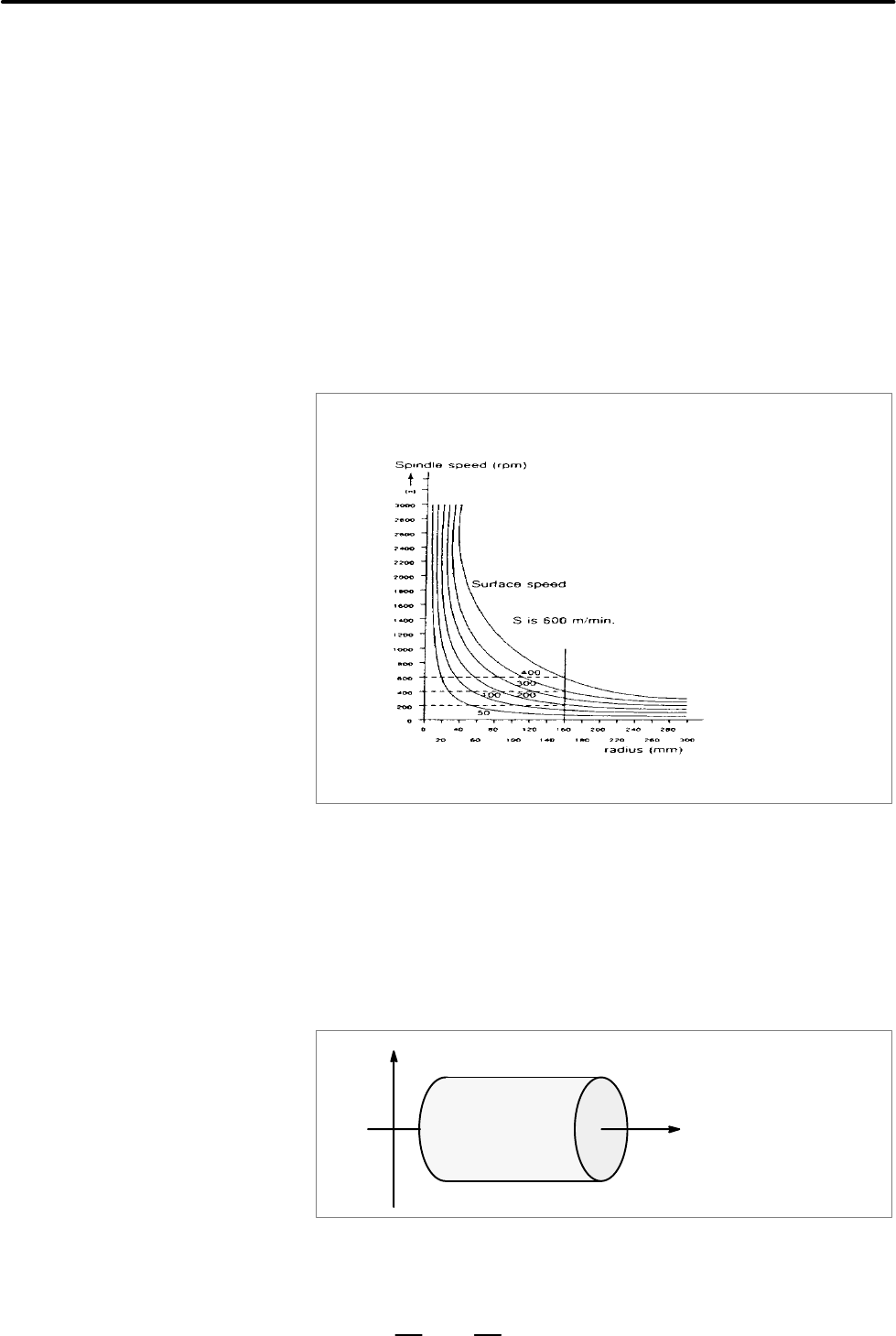

Fig. 9.3 (a) Relation between workpiece radius, spindle speed

and surface speed

The spindle speed (rpm) almost coin-

cides with the surface speed (m/min)

at approx. 160 mm (radius).

To execute the constant surface speed control, it is necessary to set the

work coordinate system , Z axis, (axis to which the constant surface speed

control applies) becomes zero.

Fig. 9.3 (b) Example of the Workpiece Coordinate

System for Constant Surface Speed Control

Explanations

D Constant surface speed

control command (G96)

D Setting the workpiece

coordinate system for

constant surface speed

control
