Series 16i/18i-MA/MB Canned Turning Cycle for Milling Machine, Specification Additional Manual Page 10

Additional Manual
* X/Z End point X,Z End point of the Rough shape
B Outer/Inner
0= Outer shape
1= Inner shape
(When “B_” is not specified, “Outer/Inner” is equal to B0)
(Note) Before calling this canned cycle, Tool nose radius offset must be
cancelled and X-Z plane, G18, must be selected.
(Note) In order to use this feature, the parameter 9641<#7:ACC> must be set to
1.
(4) Semi-finishing
after roughing
Cycle motion changes by the position of cutting start point as follows.
If start point X-axis < minimum X-position of Figure, 1 process semi-finishing
only will be executed. If start point X-axis < maximum X-position of figure, 1
process rough cutting and semi-finishing will be executed.
Normally, Semi-finishing is carried out after roughing. But, by setting the
parameter 9772<#5:RFN> to 1, Semi-finishing is not carried out. But, as the
following example, there is the case that Semi-finishing is carried out according
to the cutting start point.

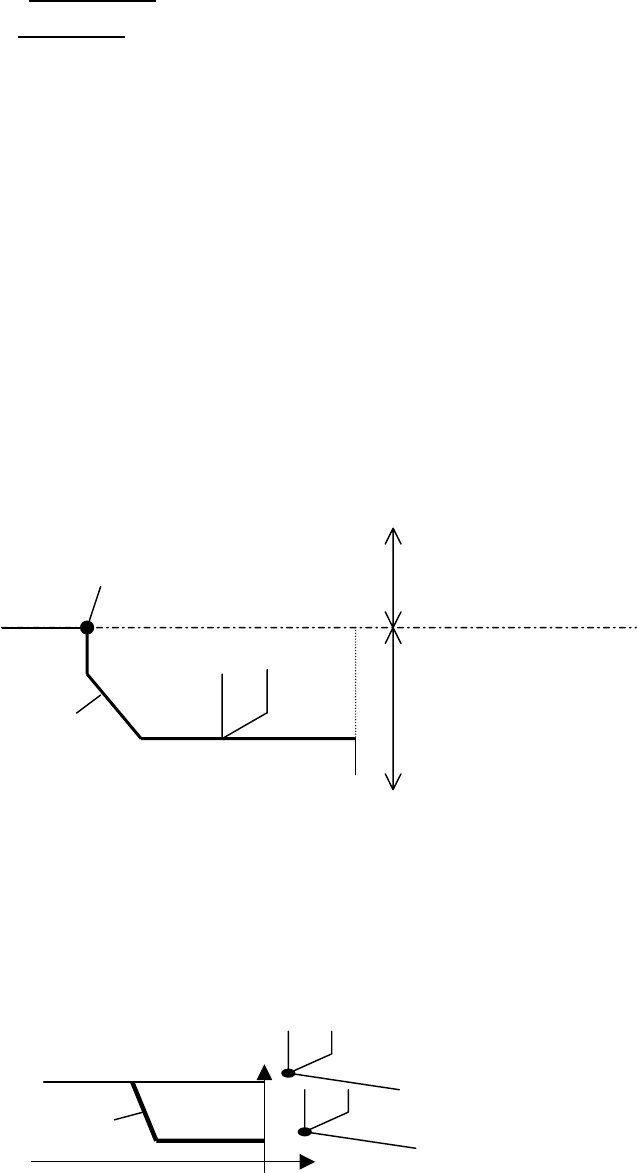

<Outer Roughing>
Example: In case of the cutting start point P1, semi-finishing is not executed. In
case of the cutting start point P2, semi-finishing is executed.
Program :
:
G00 X__ Z___; <= Cutting start point
G700 ---------------- ;
:
When a Cutting start point exists
In this area, Semi-finishing is
executed.
Finishing figure
Maximum X of the finishing figure
Fig.1.1.12
Z0.
X50.
Finishing figure
Cutting start point P1(X55.,Z5.)
Cutting start point P2(X15.,Z10.)
X10.
Fig.1.1.13
