Series 16i/18i-MA/MB Canned Turning Cycle for Milling Machine, Specification Additional Manual Page 5

Additional Manual
(2) The detail of
the process data
The detail of the process data, the arguments of G700 block, is as follows.

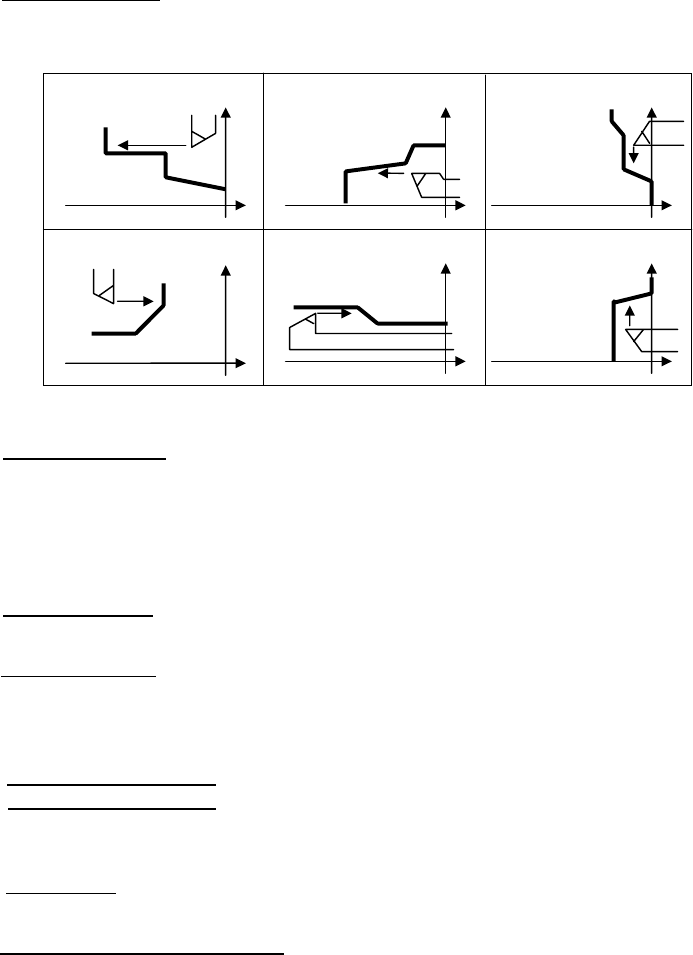

P Cutting direction 0= Outer/Inner/Face
1= Outer Reverse/Inner Reverse/Face Reverse
( When “P_” is not specified, “Cutting direction” is equal to P0)
A Diameter/Radius
0= Specify arguments as X Diameter and Z Radius
1= Specify arguments as X Radius and Z Radius
(In case of using the PMC signal G0296 for selecting Diameter/
Radius, this argument cannot be used. And the parameter
9641<#6> must be set to 1)
B Machining area
0=Outer, 1=Inner, 2=Face
(When “B_” is not specified, “Machining area” is equal to B0)
F Cutting feedrate
Cutting feedrate of Bar roughing. Whether unit of the
feedrate is Feed/min or Feed/rev, it is accordance with the Feed/min
or Feed/rev command of the previous block. (when “F___” is not
specified, the previous feedrate is used)
* U Finishing allowance X
X direction amount of finishing
W Finishing allowance Z
Z direction amount of finishing
(When “U/W___” is not specified, “Finishing allowance” is equal to
zero)
* V cut amount
Infeed amount of the first cutting motion (When “V___” is
not specified, P/S alarm will occur)
J rate of change of cut amount
Cut amount after the second cutting motion is decided as described
bellow (When “J__” is not specified or J0 is specified, the cut amount
does not change) Unit:1%
The 2
nd
cut amount = the argument V x the argument J/100
The 3
rd
cut amount = the 2
nd
cut amount x the argument J/100
:
The N
th
cut amount = The (N-1)
th
cut amount x the argument J /100
Face
Face Reverse
Oute
Outer Reverse
Inne
r
Inner Reverse
+Z
+X
+Z
+X
+Z
+X
+Z
+X
+Z
+X
+Z
+X
Fig.1.1.4
