  2. Series 16i/18i-MA/MB Canned Turning Cycle for Milling Machine, Specification

Series 16i/18i-MA/MB Canned Turning Cycle for Milling Machine, Specification Additional Manual Page 2

Additional Manual
In order to use this turning cycle for milling, it is necessary
to set the parameter 9641<#7+#6> to 1.
Canned Cycle for Bar Machining
Bar Roughing and Finishing can be programmed as Canned Cycle.
1.1 Roughing Cycle/ Outer/Inner/Face
Roughing Cycle is executed by using the G700 and G1xx command like the
following figure. And also, this Canned Cycle is used in X-Z plane.
(Note) Before commanding Roughing Cycle, a tool must be moved to the
cutting start point like the above figure.
(1) G-Code Format The process data of this cycle, F,E,W,V…etc, are specified by using the G700
command as follows. And also, the finishing figure of this cycle is specified by
using the G100 through 103 and G139 command as follows.
Specifying
the Process data
G700 P Cutting direction A Diameter/Radius B Machining area F Cutting feedrate
U Finishing allowance X
W Finishing allowance Z V cut amount E Release
amount H Release type Q Edge angle R Nose angle D Imaginary tool tip
position T Offset No. I allowance of end face J rate of change of cut amount
K minimum cut amount
;
(Note) The arguments of this block must be specified as the data with decimal
point.

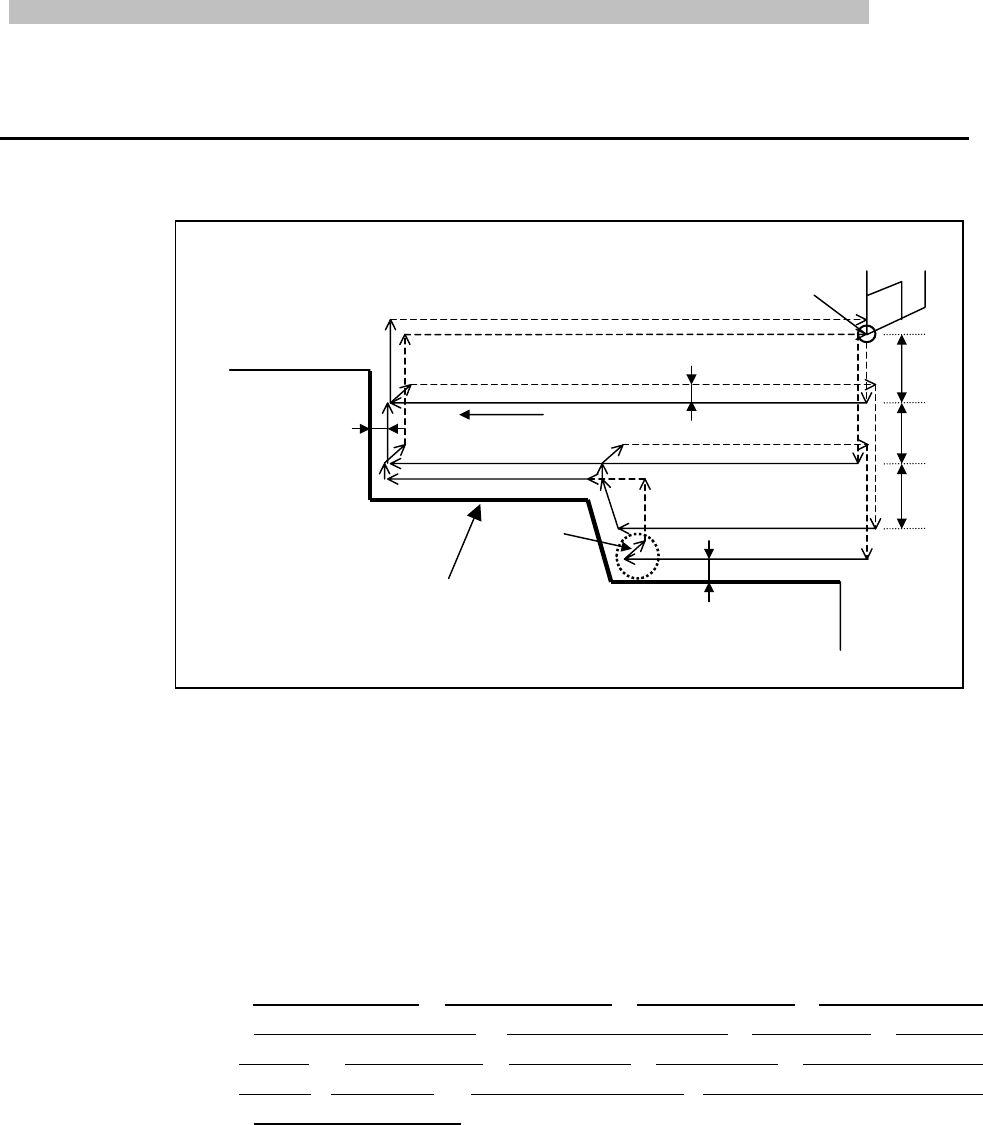

Fig. 1.1.1
V
V
V
U
W
E
Tool
Cutting start point
F
Finishing figure
H
