  2. Series 16i/18i-MA/MB Canned Turning Cycle for Milling Machine, Specification

Series 16i/18i-MA/MB Canned Turning Cycle for Milling Machine, Specification Additional Manual Page 41

Additional Manual
Note)
According to the position of the cutting start point and the end point of an entered
figure, semi finish machining may be carried out, regardless of the value set in the
parameter
ACC 1 : The function to cancel idle cutting for a molding material is enabled.
0 : The function to cancel idle cutting for a molding material is disabled.
All bits except the above-mentioned bit must be set to 0.
A.2 Parameter for Bar Machining
RELFX Default value of X component (diameter) of a clearance from the cutting surface
in in-feed machining of Outer and Inner bar machining.
Valid data range : 0 to 99,999,999 Units : 0.001mm
0.0001inch
RELFZ Default value of Z component (radius) of a clearance from the cutting surface in
in-feed machining of Face bar machining.
Valid data range : 0 to 99,999,999 Units : 0.001mm
0.0001inch
TLBACK Angle at which the back of the tool is raised above the work-piece in cutting
onto an intermediate part.
Valid data range : 0 to 180 Units : 1 degree

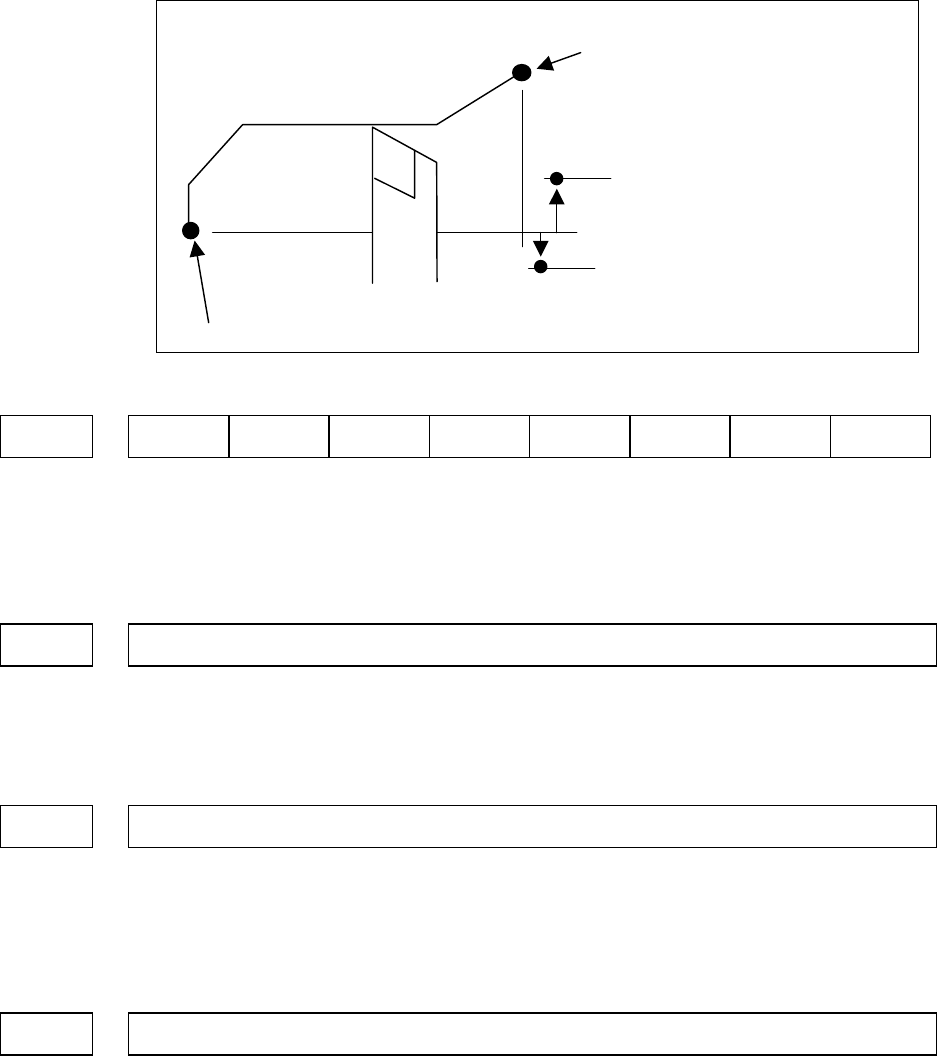

Start point of a figure
End
p
oint of a fi
g
ure
Cutting start point
: Semi finish machining is
carried out according to
the parameter of a figure
Cutting start point
: Semi finish machining is
carried out unconditionall
y
9777
A
CC
9797 RELFX
9798 RELFZ
9801 TLBAC
K
