  2. Series 16i/18i-MA/MB Canned Turning Cycle for Milling Machine, Specification

Series 16i/18i-MA/MB Canned Turning Cycle for Milling Machine, Specification Additional Manual Page 14

Additional Manual

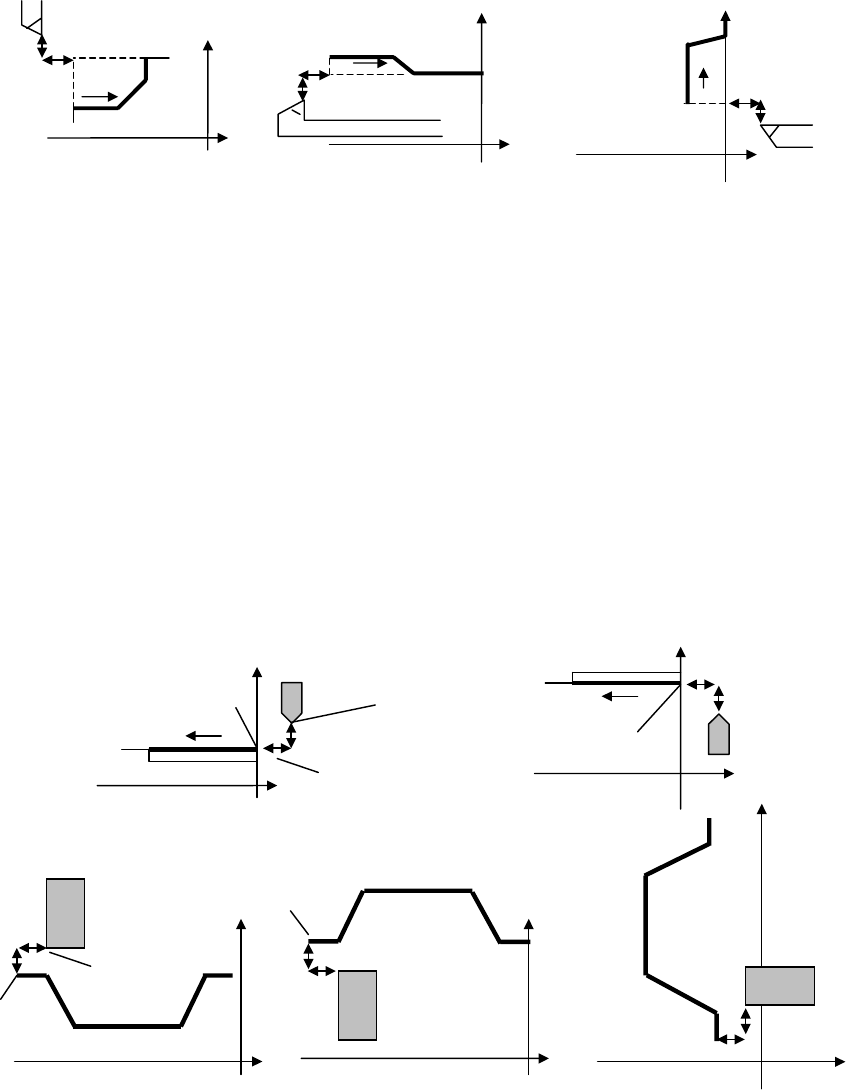

2) Cutting start points of [INNER]
X = [Xmin : Minimum inside coordinate of a figure] - [CLRX]
Z = [Zs : Z coordinate of figure start point] + [CLRZ]
3) Cutting start points of [FACE]
X = [Xs : X coordinate of figure start point] + [CLRX]
Z = [Zmax : Maximum Z coordinate of a figure] + [CLRZ]
4) Cutting start points of [OUTER REVERS]
X = [Xmax : Maximum outside coordinate of a figure] + [CLRX]
Z = [Zs : Z coordinate of figure start point] - [CLRZ]
5) Cutting start points of [INNER REVERS]
X = [Xmin : Minimum inside coordinate of a figure] - [CLRX]
Z = [Zs : Z coordinate of figure start point] - [CLRZ]
6) Cutting start points of [FACE REVERS]
X = [Xs : X coordinate of figure start point] - [CLRX]
Z = [Zmin : Minimum Z coordinate of a figure] - [CLRZ]
2. Cutting start point of Threading, Grooving
1) Cutting start points of [OUTER]
X = [Xs : Start point X-coordinate of a figure] + [CLRX]
Z = [Zs : Start point Z-coordinate of a figure] + [CLRZ]
2) Cutting start points of [INNER]
X = [Xs : Start point X-coordinate of a figure] - [CLRX]
Z = [Zs : Start point Z-coordinate of a figure] + [CLRZ]
3) Cutting start points of [FACE]
X = [Xs : Start point X-coordinate of a figure] + [CLRX]
Z = [Zs : Start point Z-coordinate of a figure] + [CLRZ]
Xmin
Outer Reverse
+Z
+X
Xmax
Zs
Inner Reverse
+Z
+X
Zs
Face Reverse
+Z
+X
Zmin
Xs
+Z
+X
Outer
(Xs, Zs)
CLRX
CLRZ
Cutting start point
(Xs, Zs)
Inner
+Z
+X
+X
+Z
Face
(Xs, Zs)
+Z
+X
Outer
(Xs, Zs)
CLRX
CLRZ
Cutting start point
+Z
+X
Inner
(Xs, Zs)
Fig.1.1.19
Fig.1.1.20
