FANUC POWER MATE i-MODEL D/H Macro Compiler/Macro Executer Programming manual Page 148

Programming manual
B–62093E–1/02 8. PICTURE DISPLAY FUNCTION
PROGRAMMING
141
It is possible to input and entry the Graphic Data from the memory card
into the Power Mate–MODEL D/H by the following operations.
(1) Set the memory card to the slot of the Power Mate.
(2) Press the [M–READ] soft key at the operating screen of “Picture
Display” function.
(3) Select the soft key “ONE” (by one) or “ALL”.
[ONE] It is possible to input each file on the memory card to. . .
each position in the Power Mate one by one.
[ALL] It is possible to input the files which are displayed on the. . .
“DIRECTORY OF THE MEMORY CARD” screen
with the FILE number order until the MAX number 32
(or 64).
(In this case, the files which are displayed as [********]
are ignored and not inputted.)
(4) In case that you select the [ONE] soft key, input the data with the
following format. Then, press the [CAN] (cancel) or [EXEC]
(execute) soft key.
>N1, N2 (Data input part)
(Example. >5, 10.. (Inputting the data
whose FILE NO. on
the memory card is
“5” into the Power
Mate as the GRAPHIC
SCREEN NO. “10”.)
GRAPHIC SCREEN NO.
(The order in the
Power Mate)
FILE NO.
(The number on the memory card)
In case that the [ALL] soft key, press the [CAN] or [EXEC] soft key.

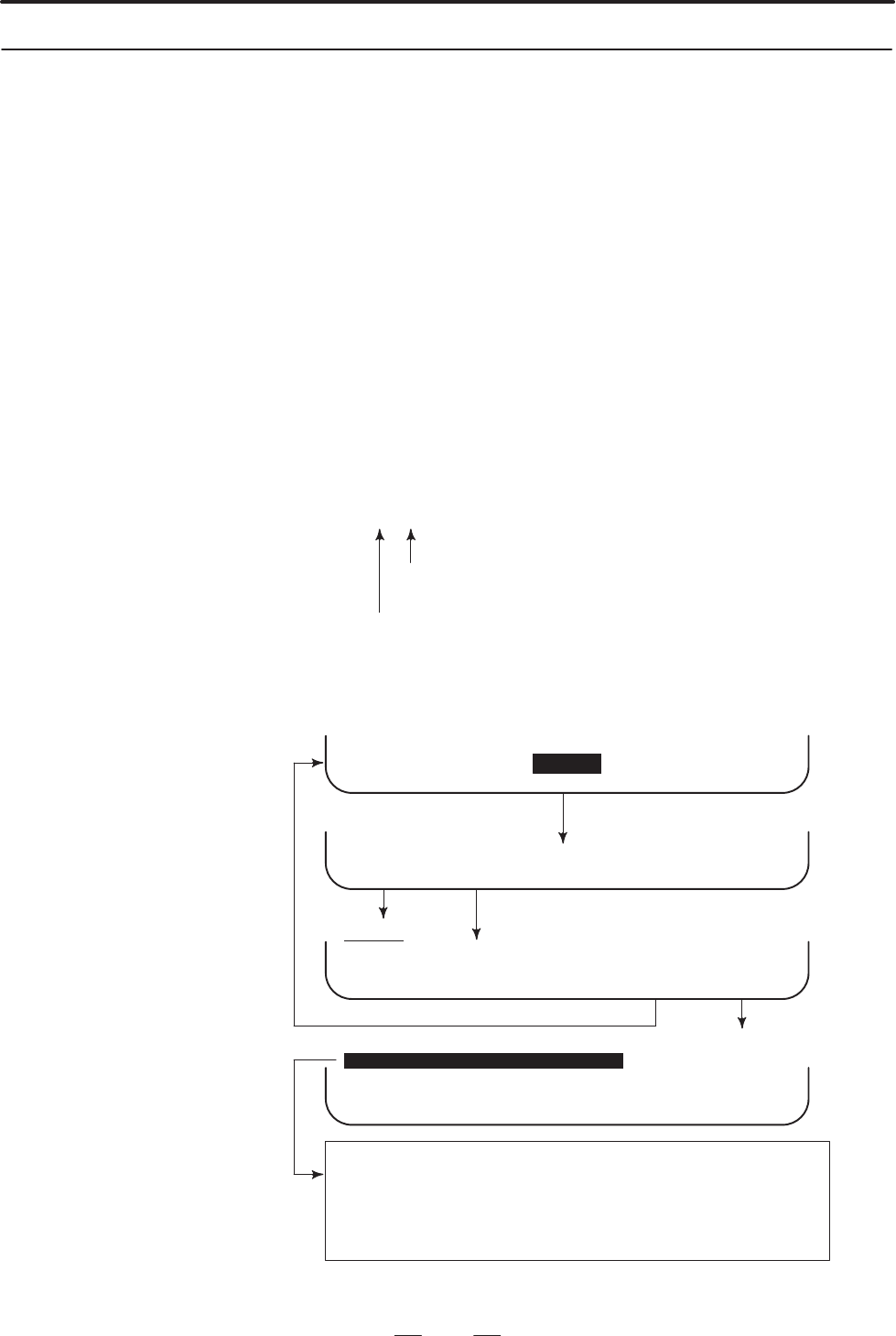

(Fig. 8.1.3)
M–DIR F–DIR M–READ S–DISP
(Condition displaying part)
[][][M–READ][ ][ ]
[][][][][]
[][][][][]
ONE ALL
CAN EXEC
>N1,N2
[][][][][]CAN EXEC
//WRITING MC<N1>–>FR<N2>
S This message is displayed while the data is written into the the Power Mate.
The number in the “MC< N1 >” corresponds to the file number on the memory
card, The number in the “FR< N2 >” corresponds to the screen number in the
Power Mate.
S If the same number file has already registered, the new data is over written.
8.1.3 The screen of the graphic data inputting.
8.1.3
The Inputting Function
of the Graphic Data
(ONE/ALL)
