AC Servo Motor Alpha i/is Series, Maintenance manual Page 59

Maintenance manual
B-65285EN/03 START-UP PROCEDURE 4.CONFIRMATION OF THE OPERATION
- 29 -
4.3 SPINDLE AMPLIFIER MODULE

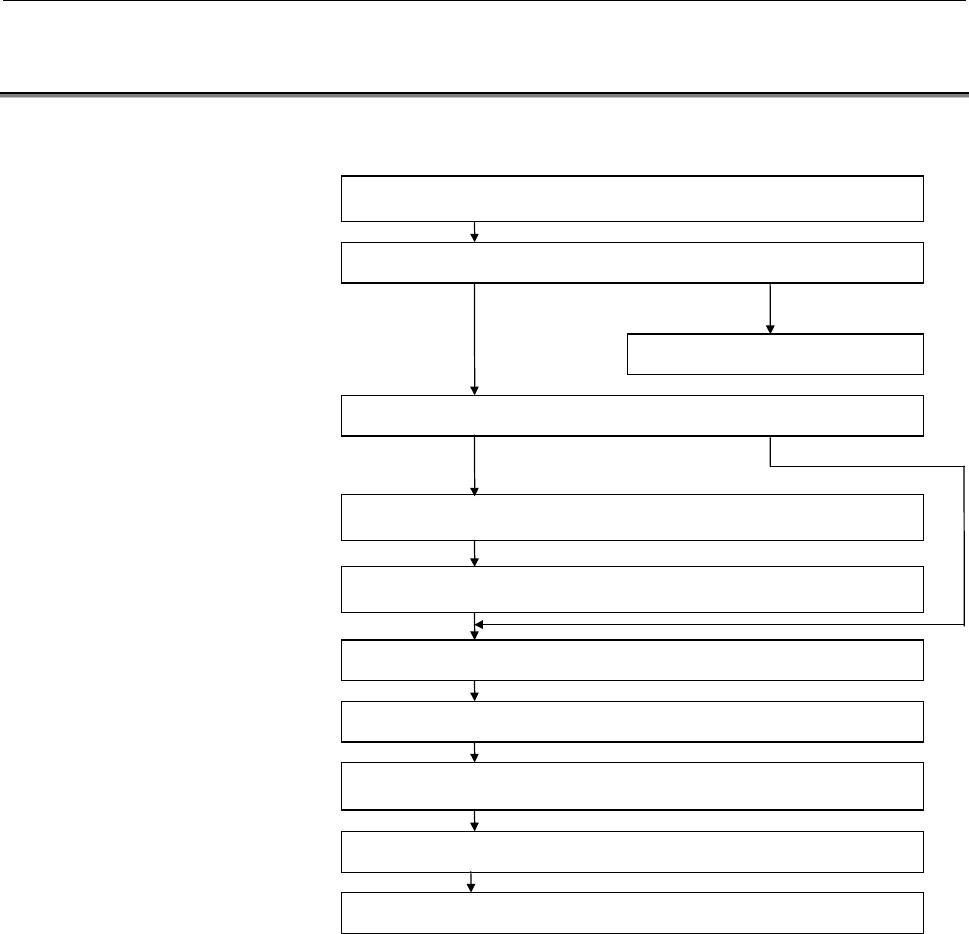

Check each item according to the procedure described below.
9. Check the operation in normal operation mode (S command).
8. Make sure that the magnetic contactor for PSM input is turned on.
See Section 4.1.
7. Release the system from the emergency stop state.
6. Check the waveform on the sensor. See Subsection 4.3.4.
5. Set and check spindle-related parameters. (The parameter manual
is required.)
No Yes
4. Prepare and check a PMC ladder. (The descriptions manual is
required.)
3. Has the system been used with this connection status?
OK Alarm issued.
See Part II.
2. Check the STATUS display. See Subsection 4.3.1.
1. Supply control power (200 VAC) to the power supply module, and
turn on the power to the CNC.
10. Check the operation of optional functions.
Previous page
Next page
