PROGRAMMING14. COMPENSATION FUNCTION
B–63834EN/02
242

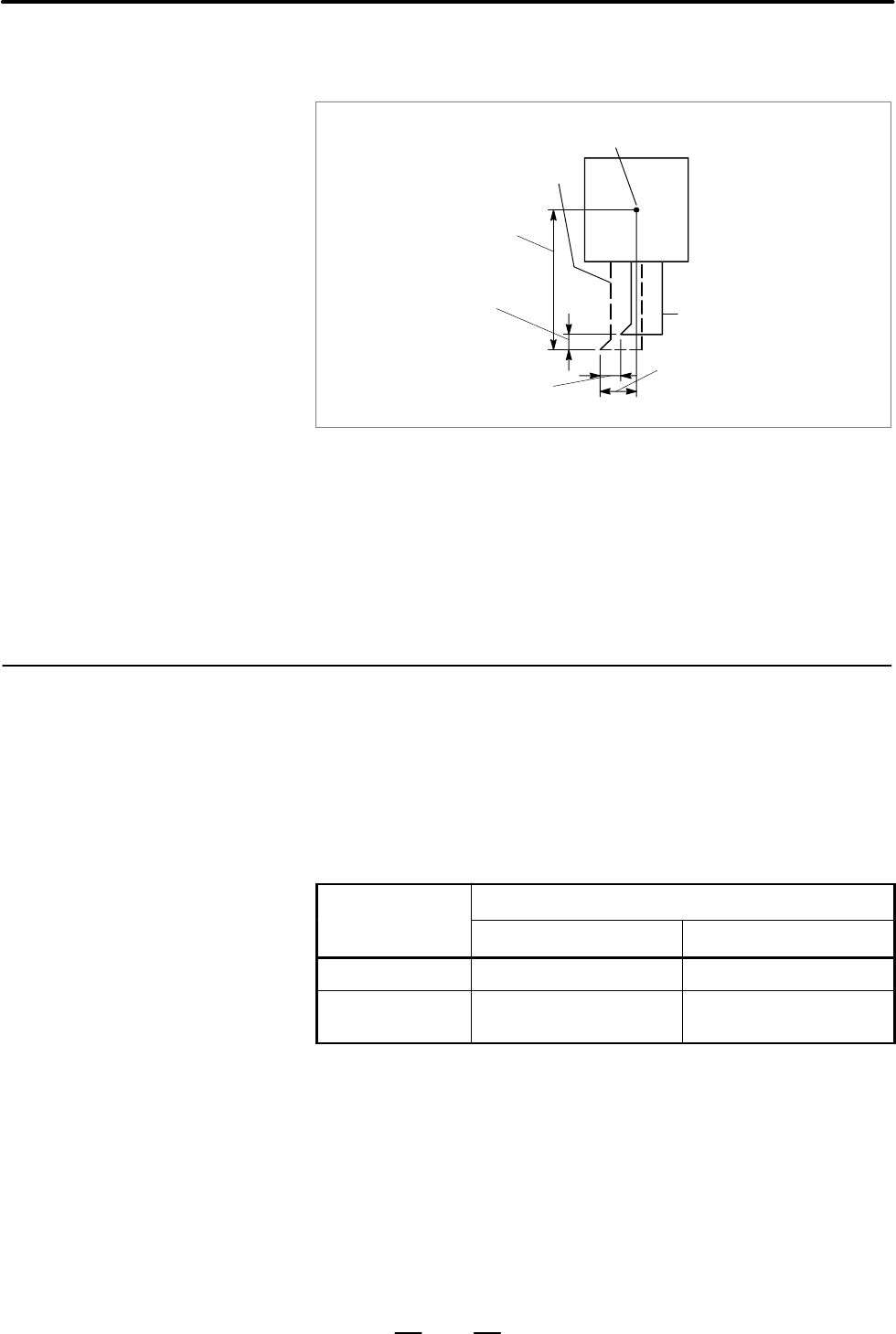

Tool compensation values include tool geometry compensation values
and tool wear compensation (Fig. 14.4).
X axis geometry
offset value
X axis wear
offset value
Point on the program
Imaginary tool
Actual tool
Fig. 14.4 Tool geometry offset and tool wear offset
Z axis wear
offset value
Z axis geometry
offset value
Tool compensation values can be entered into CNC memory from the
MDI panel or from a program.
A tool compensation value is selected from the CNC memory when the
corresponding code is specified after address T in a program.
The value is used for tool offset or tool nose radius compensation.
See subsec. II–14.1.2 for details.
Table 14.4.1 shows the valid input range of tool compensation values.
Table 14.4.1 Valid range of tool compensation values
Tool compensation value
Increment system
Metric input (mm) Inch input (inch)
IS–B –999.999 to +999.999 mm –99.9999 to +99.9999 inch
IS–C –999.9999 to +999.9999
mm
–99.99999 to +99.99999
inch
The maximum tool wear compensation can be changed by setting
parameter No.5013.
The memory can hold 64 tool compensation values.
14.4
TOOL
COMPENSATION
VALUES, NUMBER
OF COMPENSATION
VALUES, AND
ENTERING VALUES
FROM THE
PROGRAM (G10)
14.4.1
Tool Compensation
and Number of Tool
Compensation
D Valid range of tool
compensation values
D Number of tool
compensation
