19. AXIS CONTROL FUNCTION

B–63004EN/02

PROGRAMMING

352

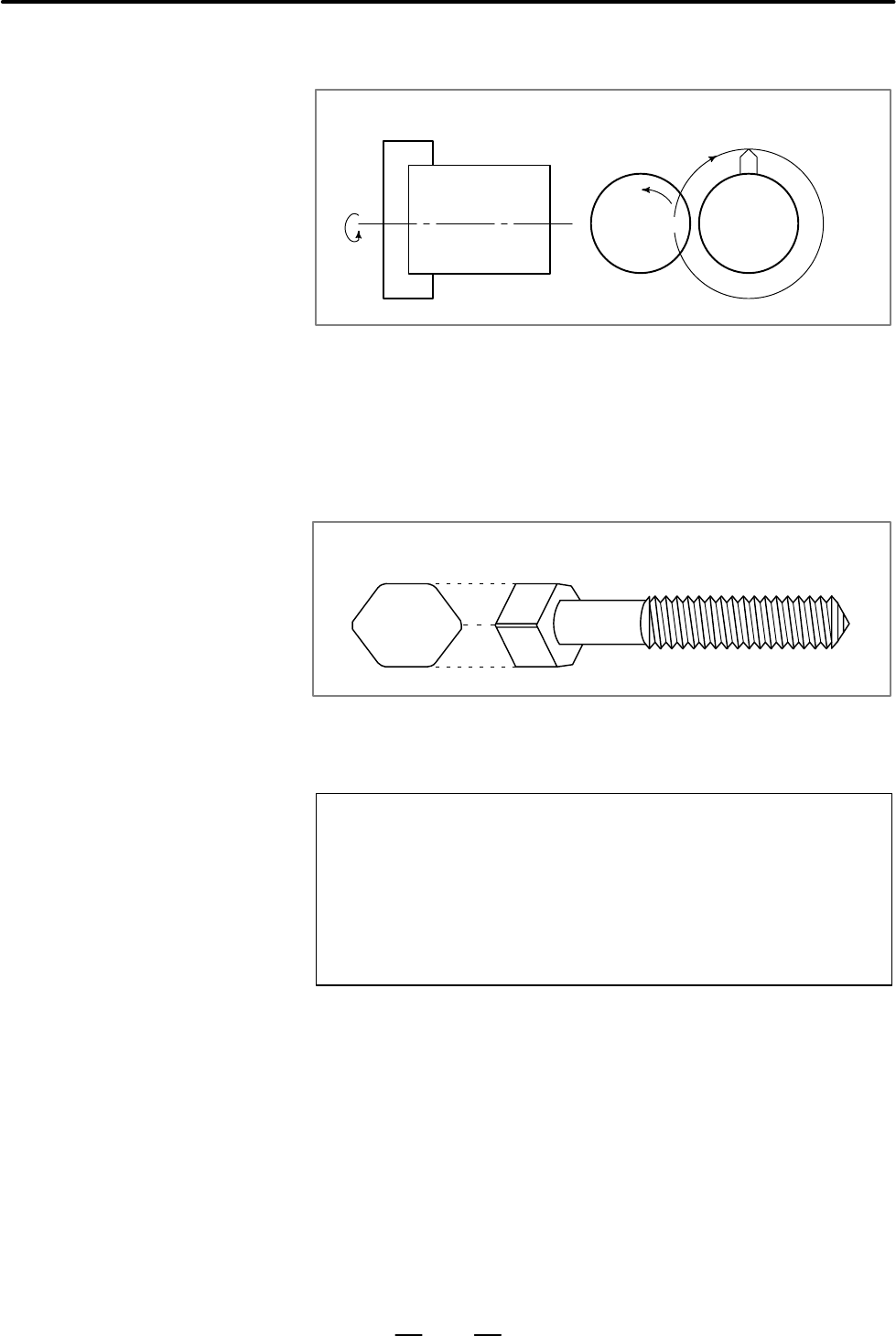

Polygonal turning means machining a polygonal figure by rotating the

workpiece and tool at a certain ratio.

Workpiece

Tool

Fig. 19.1 (a) Polygonal turning

Workpiece

By changing conditions which are rotation ratio of workpiece and tool and

number of cutters,the machining figure can be changed to a square or

hexagon. The Machining time can be reduced as compared with

polygonal figure machining using C and X axes of the polar coordinate.

The machined figure however, is not exactly polygonal. Generally,

polygonal turning is used for the heads of square and/or hexagon bolts or

hexagon nuts.

Fig. 19.1 (b) Hexagon bolt

G51.2(G251) P_Q_;

P, Q

: Rotation ratio of spindle and Y axis

Specify range:Intefer 1 to 9 for both

P and Q

When Q is a positive value, Y axis

makes positive rotation.

When Q is a negative value, Y axis

makes negative rotation.

19.1

POLYGONAL

TURNING

Format
