Series 16i/18i/160i/180i/160is/180is - TA Operators manual Page 434

Operators manual
OPERATION
B–63004EN/02
1. GENERAL
415
Using machine operator’s panel switches, push buttons, or the manual
handle, the tool can be moved along each axis.
Tool
Machine operator’s panel
Manual
pulse
generator
Workpiece

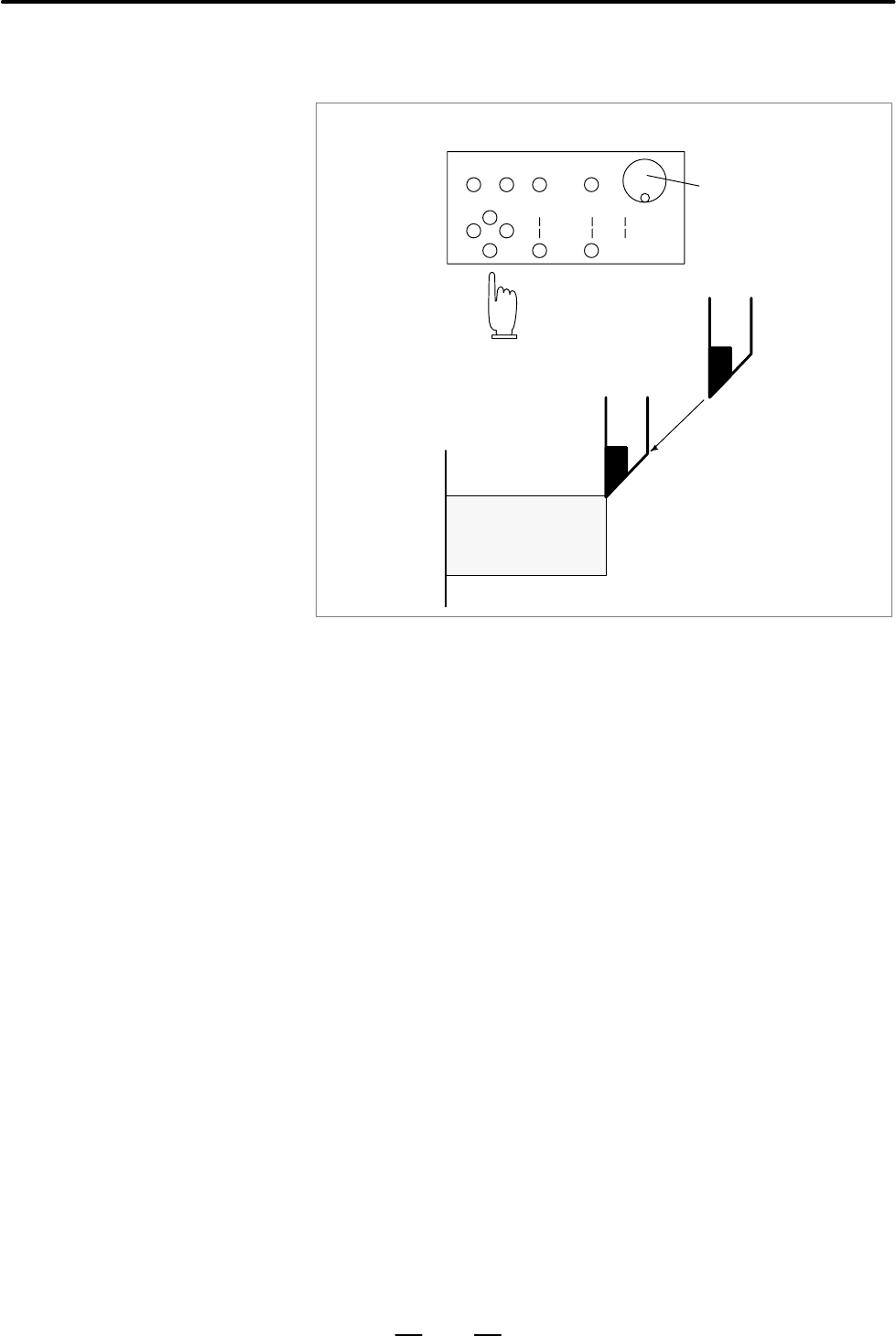

Fig. 1.1 (b) The tool movement by manual operation
The tool can be moved in the following ways:
(i) Jog feed (See Section III–3.2)
The tool moves continuously while a push button remains pressed.
(ii) Incremental feed (See Section III–3.3)
The tool moves by the predetermined distance each time a button is
pressed.
(iii) Manual handle feed (See Section III–3.4)
By rotating the manual handle,the tool moves by the distance
corresponding to the degree of handle rotation.
D The tool movement by
manual operation
