PROGRAMMING

B–63004EN/02

20. TWO–PATH CONTROL

FUNCTION

397

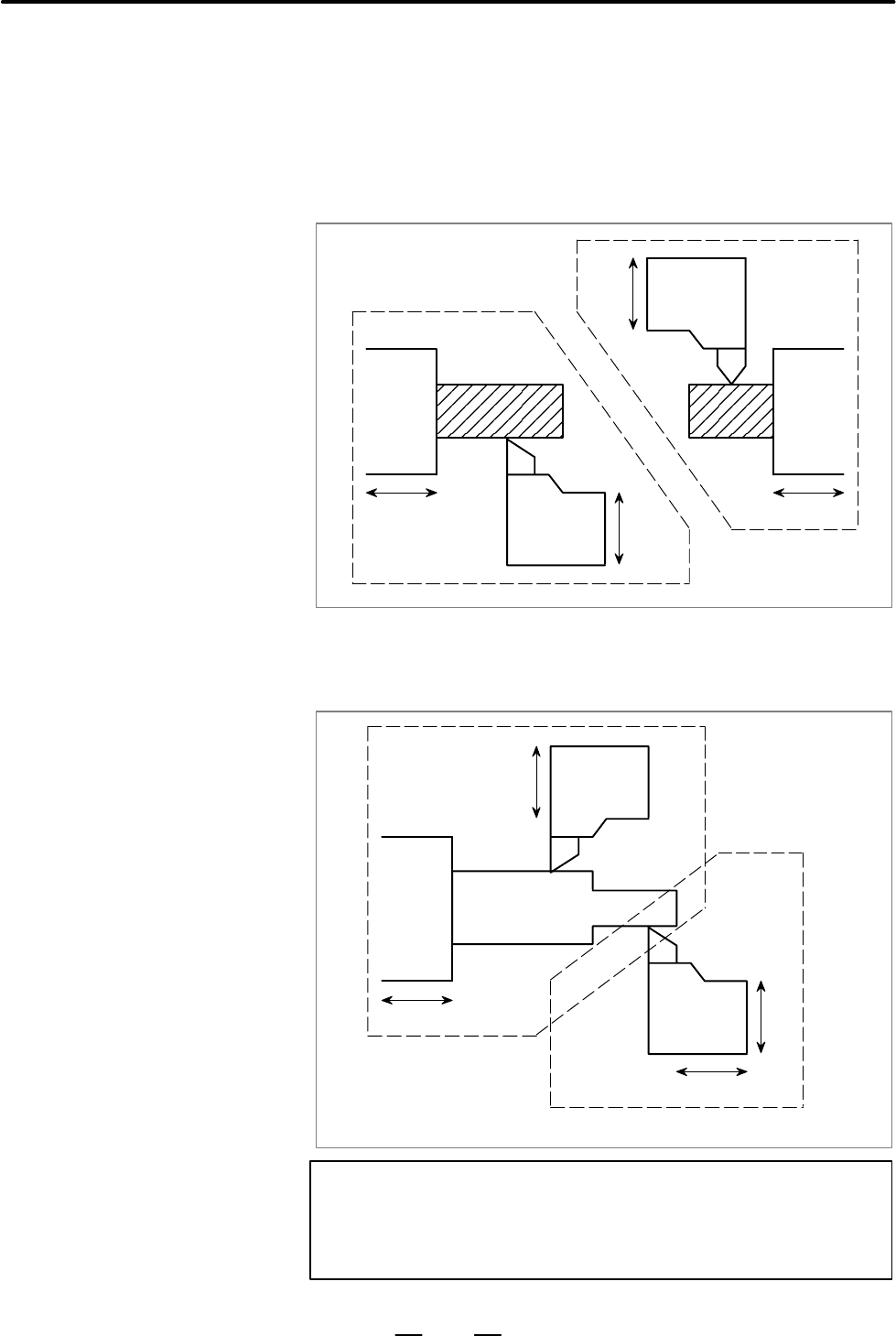

Exchanges the move commands for different axes of different systems.

Example)

Exchanging the commands for the X1 and X2 axes

–> Upon the execution of a command programmed for system 1,

movement is performed along the X2 and Z1 axes.

Upon the execution of a command programmed for system 2,

movement is performed along the X1 and Z2 axes.

Machining according to a

program for system 1

Machining accord-

ing to a program for

system 2

Workpiece 1

Turret 1

Work-

piece 2

Turret 2

Provides a move command of an axis for a different axis in another system.

Example)

Providing the Z2 axis with a move command specified for the Z1 axis

Workpiece 1

Turret 1

Work-

piece 2

Turret 2Z1

Machining according

to a program for sys-

tem 1

Machining according to a program

for system 2

NOTE

The method used to specify synchronization or composite

control varies with the machine tool builder. For details,

refer to the manual supplied by the machine tool builder.

D Composite control

D Superposition control
