0i/0i Mate - Model C Maintenance manual Page 220

Maintenance manual
2. HARDWARE
B–64115EN/01
196

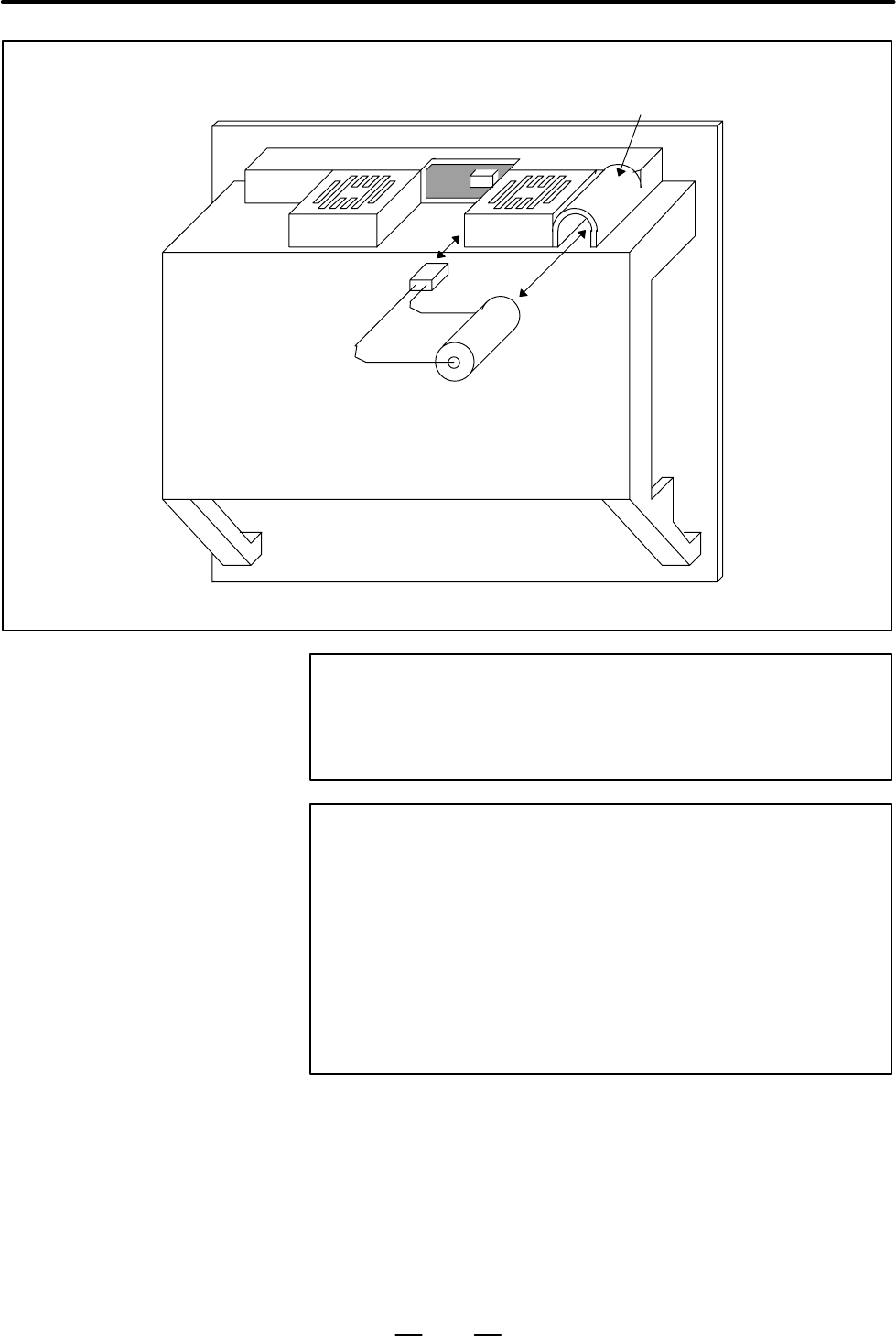

Battery case
Connector
Lithium battery
A02B–0200–K102
WARNING
Using other than the recommended battery may result in the
battery exploding. Replace the battery only with the
specified battery (A02B–0200–K102).
CAUTION
Steps 1) to 3) should be completed within 30 minutes. Do
not leave the control unit without a battery for any longer
than the specified period. Otherwise, the contents of
memory may be lost.
If steps 1) to 3) may not be completed within 30 minutes,
save all contents of the SRAM memory to the memory card
beforehand. Thus, if the contents of the SRAM memory are
lost, the contents can be restored easily.
For the method of operation, refer to 3.4 or C.2.
When discarding a battery, observe the applicable ordinances or other
rules of your local government. Also, cover the terminals of the battery
with vinyl tape or the like to prevent a short–circuit.
