0i/0i Mate - Model C Maintenance manual Page 331

Maintenance manual
B–64115EN/01
4. INTERFACE BETWEEN CNC AND PMC
307
Display method
<1> Press the system key, then press the [PMC] soft key.

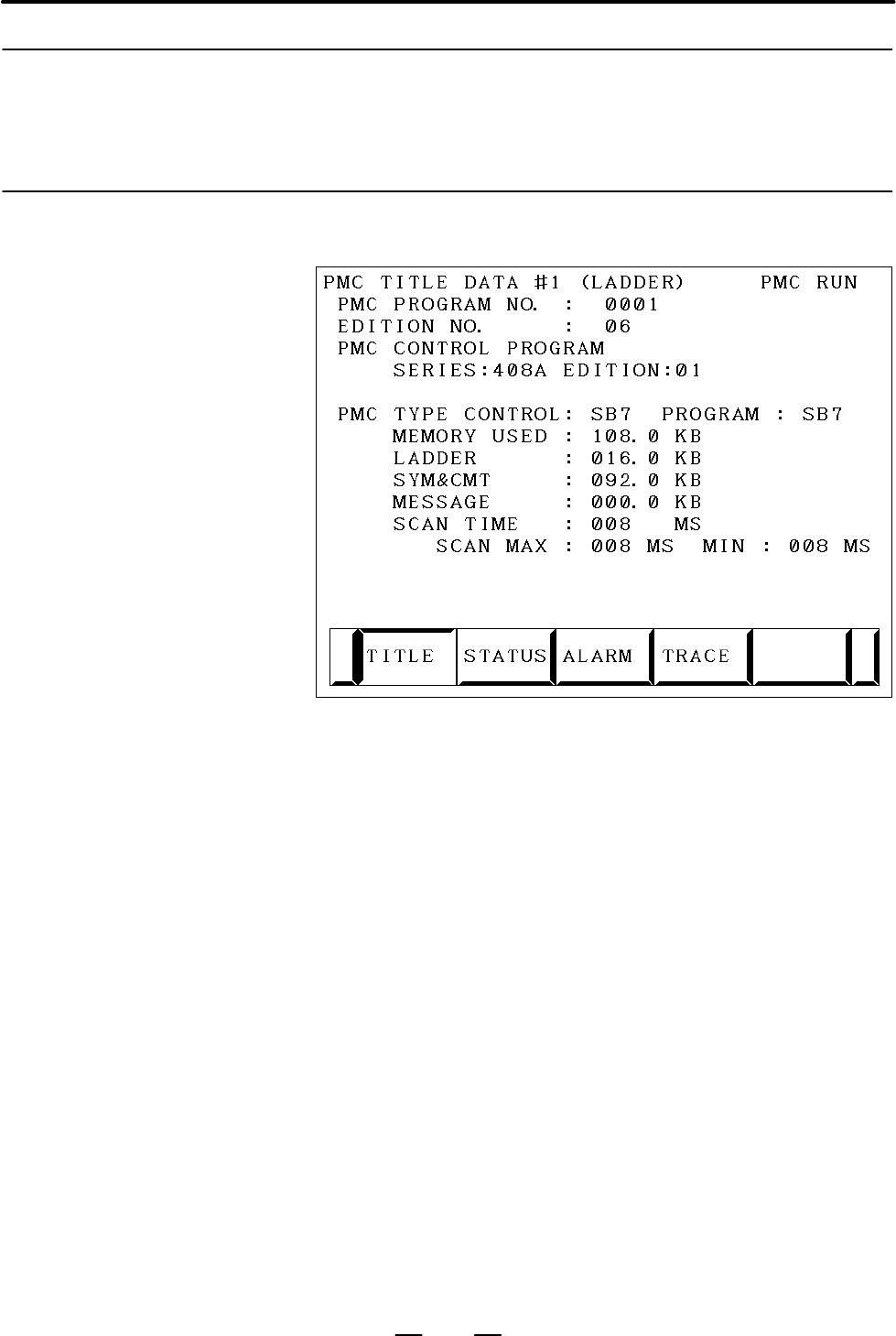

<2> Press the [PMCDGN] soft key. The PMC diagnosis screen appears.
The title data registered at the time of ladder program creation is
displayed.
Title data is the title of a sequence program, and consists of ten items:
D MACHINE TOOL BUILDER NAME (32 characters)
D MACHINE TOOL NAME (32 characters)
D CNC & PMC TYPE NAME (32 characters)
D PMC PROGRAM NO. (4 characters)
D EDITION NO. (2 characters)
D PROGRAM DRAWING NO. (32 characters)
D DATE OF PROGRAMMING (16 characters)
D PROGRAM DESIGNED BY (32 characters)
D ROM WRITTEN BY (32 characters)
D REMARKS (32 characters)
In addition, the following data is displayed:
D Series and edition of the PMC basic software
D Memory use status of each sequence data item
D Type of the PMC basic software and the PMC type of the sequence
program
D Current execution time, maximum execution time, and minimum
execution time of the ladder program
4.4.3
Display of the PMC
Diagnosis Screen
4.4.3.1
Title screen
