0i/0i Mate - Model C Maintenance manual Page 335

Maintenance manual
B–64115EN/01
4. INTERFACE BETWEEN CNC AND PMC
311

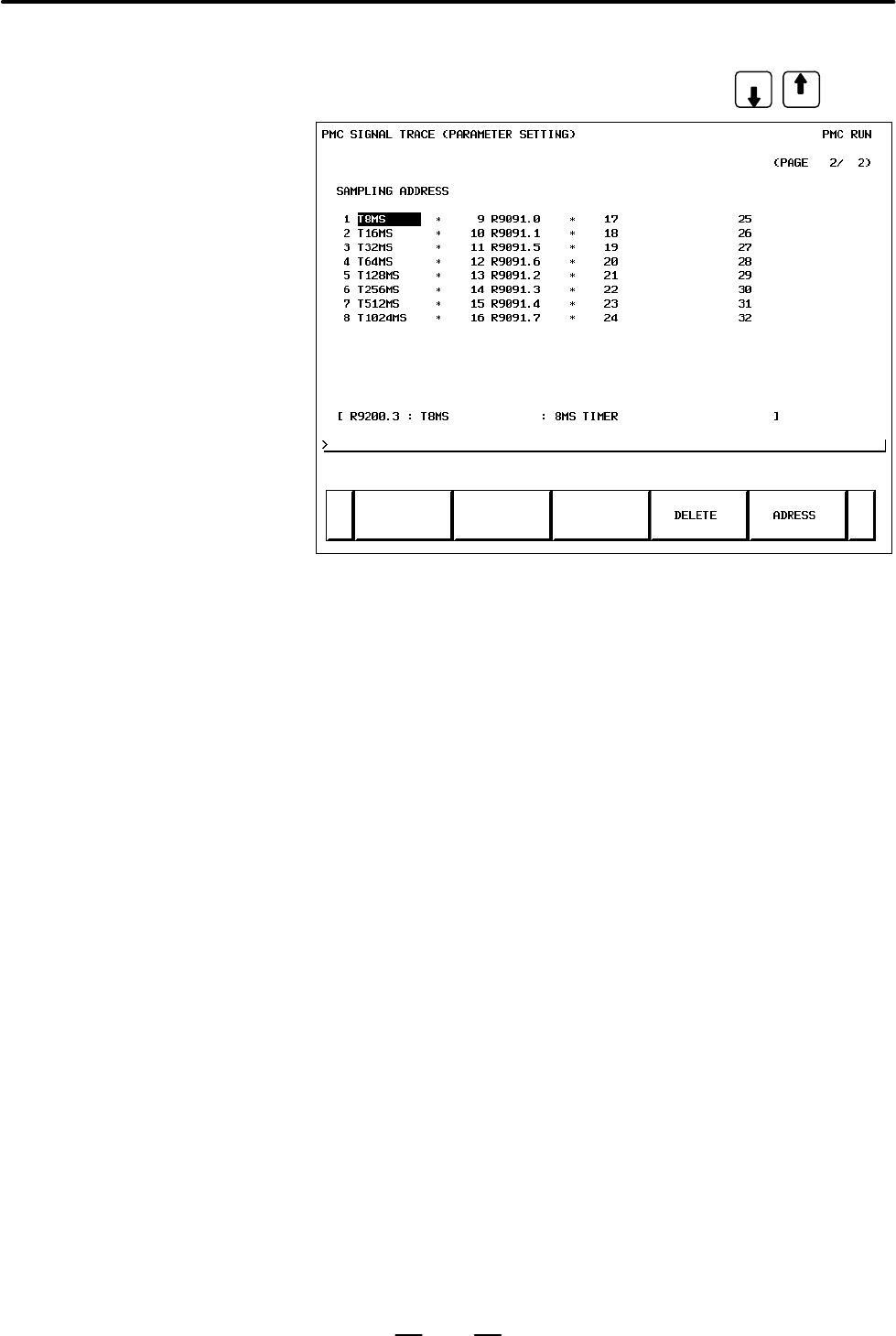

(2)Trace parameter screen (second page)
On the trace parameter screen (first page), press
PAGE
PAGE
.
a) Address setting
Set a signal address as a bit address. If you enter a byte address,
bits 0 to 7 of the entered address are input. Up to 32 signal
addresses can be set.
b) Soft keys
D [DELETE] : Deletes the set address where the
cursor is placed.
D [SYMBOL]/[ADRESS] : Switches the setting address
between symbol display and
address display.
D [MV.UP] : Replaces the set address with the
upper line.
D [MV.DWN] : Replaces the set address with the
lower line.
D [DELALL] : Deletes all set addresses.
c) Trigger setting
When “SIGNAL TRANSITION” is set as the trace sampling mode
and “BOTH EDGE” is set as the sampling condition, you can
choose whether to use a set address as a trigger signal for sampling.
To the right of a signal address set as a trigger, a “F” mark is
indicated.
D [TRGON] : Turns on a trigger setting.
D [TRGOFF] : Turns off a trigger setting.
