FANUC Series 30i/ 31i/ 32i Live Tool Control With Servo Motor Specifications Additional Manual Page 8

Additional Manual
A-79805E
Title
Draw
No.
8/40
Sheet
FANUC Series 30i/ 31i/ 32i
Live Tool Control With Servo Motor
Edit
Apprv.Desig.
Date
Design
Descri
p
tion
Date
Oct.26.2004
・ direction of rotation
You can change the voltage polarity when the spindle speed voltage is
output. (Parameter No.3706#6, #7 CWM, TCM)
Moreover, the direction of the rotation can be reversed by SV reverse
signals (Gn523). The signals are effective while SV speed control mode
and rigid tapping. When you switch the signals while rotating, the live tool
axis is reversed after decelerating and accelerates again.

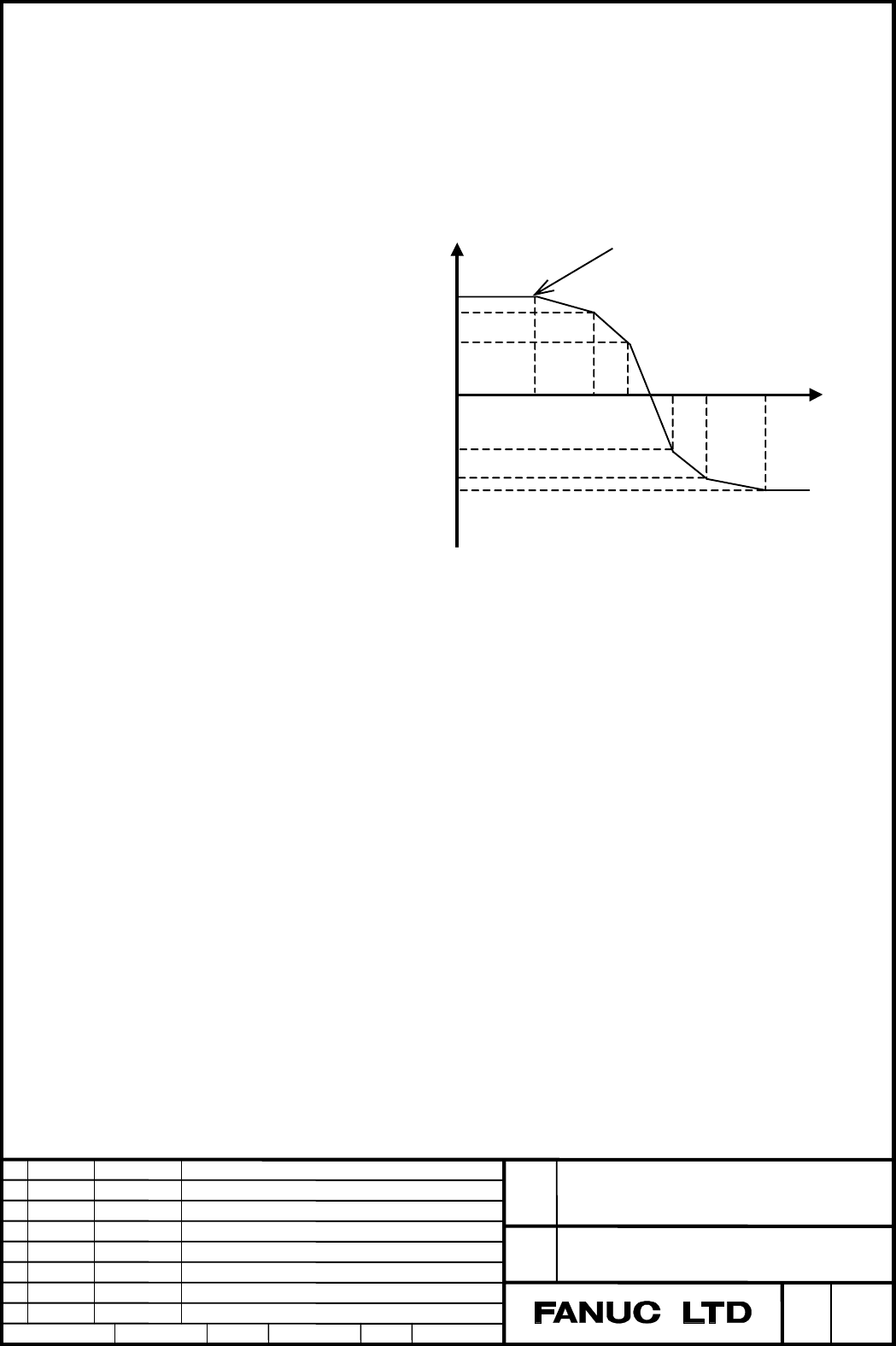

SV reverse signal ON
Speed(min
-1
)
-S
0
Time(sec)
S
1
S
A
a
A
b
A
c
-S
1
-S
S
0
A
b
A
c
A
a
0
-Reference position return
Be sure to perform a reference position return before executing the first
command.
-Display
You can specify whether to consider actual speed display, with NDF, bit 3 of
parameter No.3115. You can also specify whether to display "Actual
Speed" and "Dist to Go", with NDP, bit 0 of parameter No. 3115, and NDA,
bit 1 of parameter No. 3115.
