7.2.3
Servo parameter
In order to transmit (save and load), the below setting is necessary.
No.2008#5=1 : Enable Learning Control
No.2008#6=1 : Enable Compensation data mode
You must take care the following parameters when you save and load the Learning Data.
No.2233 : PRFNO: Profile number
No.2264 : PRFALL: Total Profile number (Available only when Learning memory
expanded function enabled: A02B-02xx-J796)
7.2.4 How to transmit Learning Data
To SAVE Learning Data (Servo → HD)
1) All of the first, you must confirm the error of Learning control converged well.
2) Set No.2233 of Profile number to zero in case of the
lump deal method.
Check No.2264 of Total Profile number beforehand.
Note) You can SAVE Learning Data every the profile data, which is called the partial deal method.
(The transmitted area of Learning Data is the shade of Fig.7.1.)
The
lump deal method: No.2233=0 ;Saving all Learning data of a axis.
The
partial deal method : No.2233= Profile number ;Saving the specified Learning Data.
3) Set CNC to EDIT mode and then you can transmit it to HD on PC using your application software. Blinking
"RESET" denotes busy state on transmit.
Note) You can't change parameter or run with parts program simultaneously with this function.
Note) The format of Learning Data is not disclosed which is the binary data. Don't edit it, otherwise there might
be possibility not to transmit well.
Note) It takes about 40 seconds for transmission from Servo to CNC in case of the lump deal method. (1000
words per second; 1 word is two bytes)
Profile No 1
Profile No 2
Profile No 3
….
Learning Memory
Profile No 1
Profile No 2
Profile No 3
….
Learning Memory
Lump deal method Partial deal method
SAVE
(Read)
Hard Disk
Learning Data
file

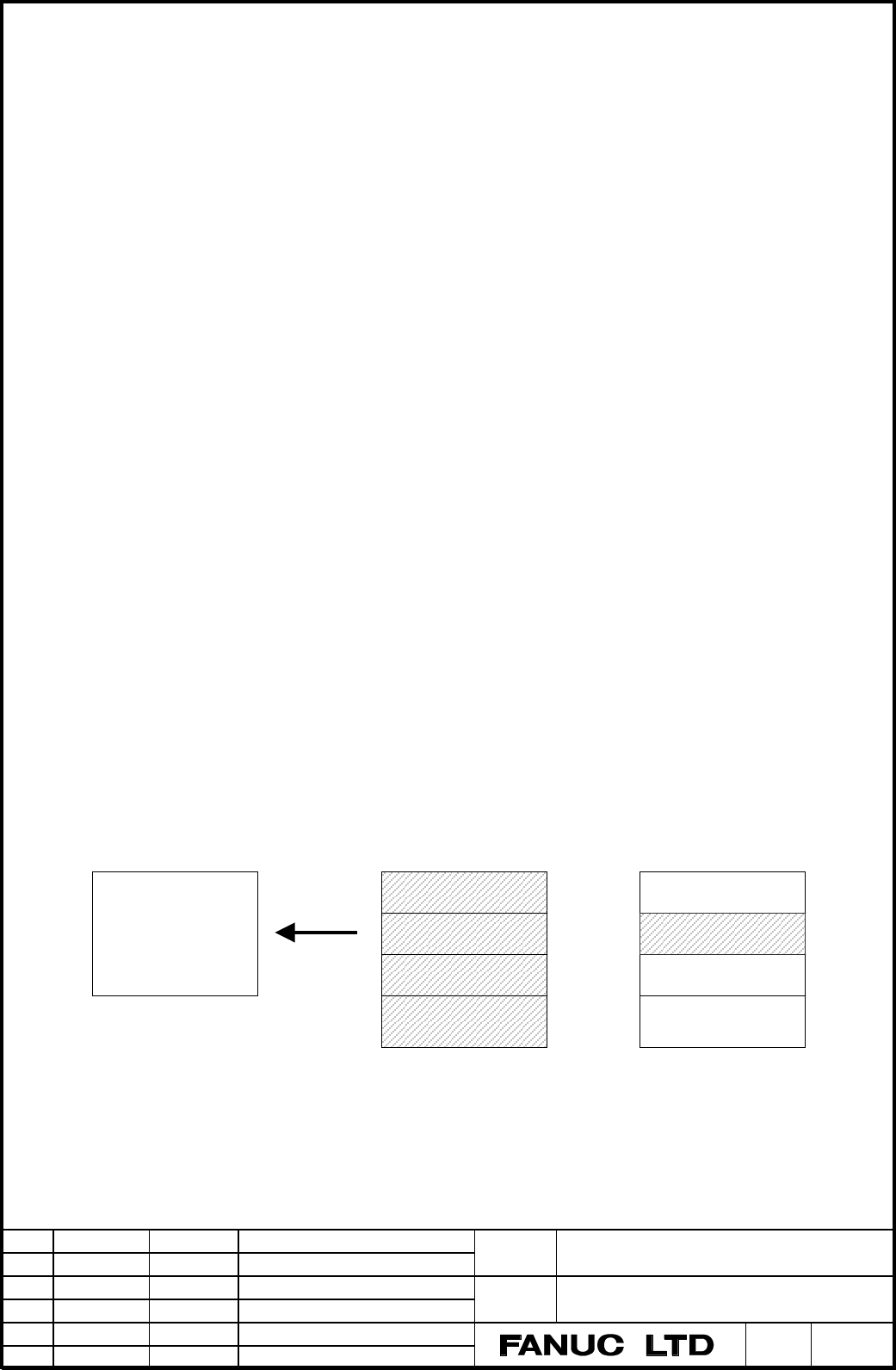

Fig 7.1 To SAVE Learning Data by two ways of
the Lump deal method (No.2233=0)and the Partial deal method (No2233=2)
