  2. FANUC AC Servo Software 90A3 / 90A7 Series, 90B3 / 90B7 Series Learning Function, Operator

FANUC AC Servo Software 90A3 / 90A7 Series, 90B3 / 90B7 Series Learning Function, Operator Additional Manual Page 56

Additional Manual
Title 90A3 / 90A7 / 90B3 / 90B7
Learning Control Operator’s Manual
03 ’01.01.13 K.Maeda 3
rd
. updated. Draw No.
02 '03.01.06 K.Maeda 2
nd
. updated
A - 63639E - 070
01 ’00.09.20 K.Maeda Newly designed Sheet 056
Edit Date Design Description / 081
8. Tuning
Regarding Learning control, you don’t need to tune parameters basically.
But servo system needs to be stable before the application of Learning control. If oscillation occurs, you need
to make stable by tuning Load inertia ratio (No.2021), Acceleration feedback (No.2066), Tcmd filter (No.2067),
Observer function (No.2003#2), and etc.

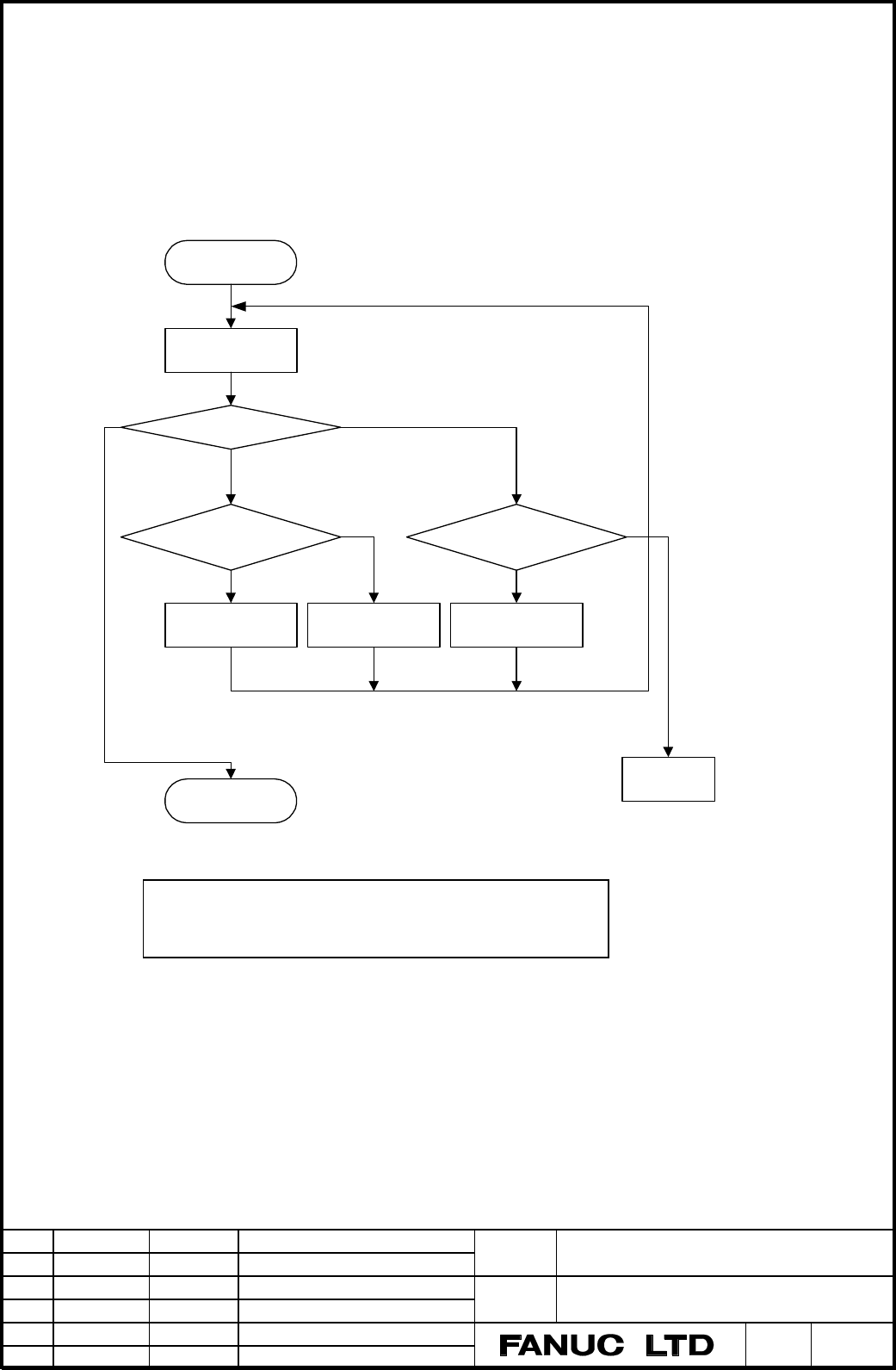

8.1 Tuning method
Start
Check of Error
Is Error converge ?
Is Learning parameter
setting right ?
diverge
step by step
yes
yes
Learning parameter
set rightly
no
Is machine oscillate
without Learning ?
yes
no
Servo parameter
tuning
Not converge.
End
make contact
with SLS0Q
decease frequency
of low pass filter
Gx tuning
1) Seek the least error by added No.2246 to +1 or –1.
2) Seek the least error by added No.2247 to +1 or –1.
