3.2 Piston Lathe
* Cutting Sequence
(1) The piston outside is cut by rotating the spindle to move the tool back and forth along the Y axis. By
feeding the tool along the Z axis, the piston outside is gradually cut deeper.
(2) Both Y axis and C axis use the Suspension mode or the Continuation mode of the Learning control. When
the command of Y axis gradually changes, Y axis should use the Continuation mode of the Preview
repetitive control. If changing rate of the command is small, the Continuation mode of the Learning
control might be sufficient for Y axis.

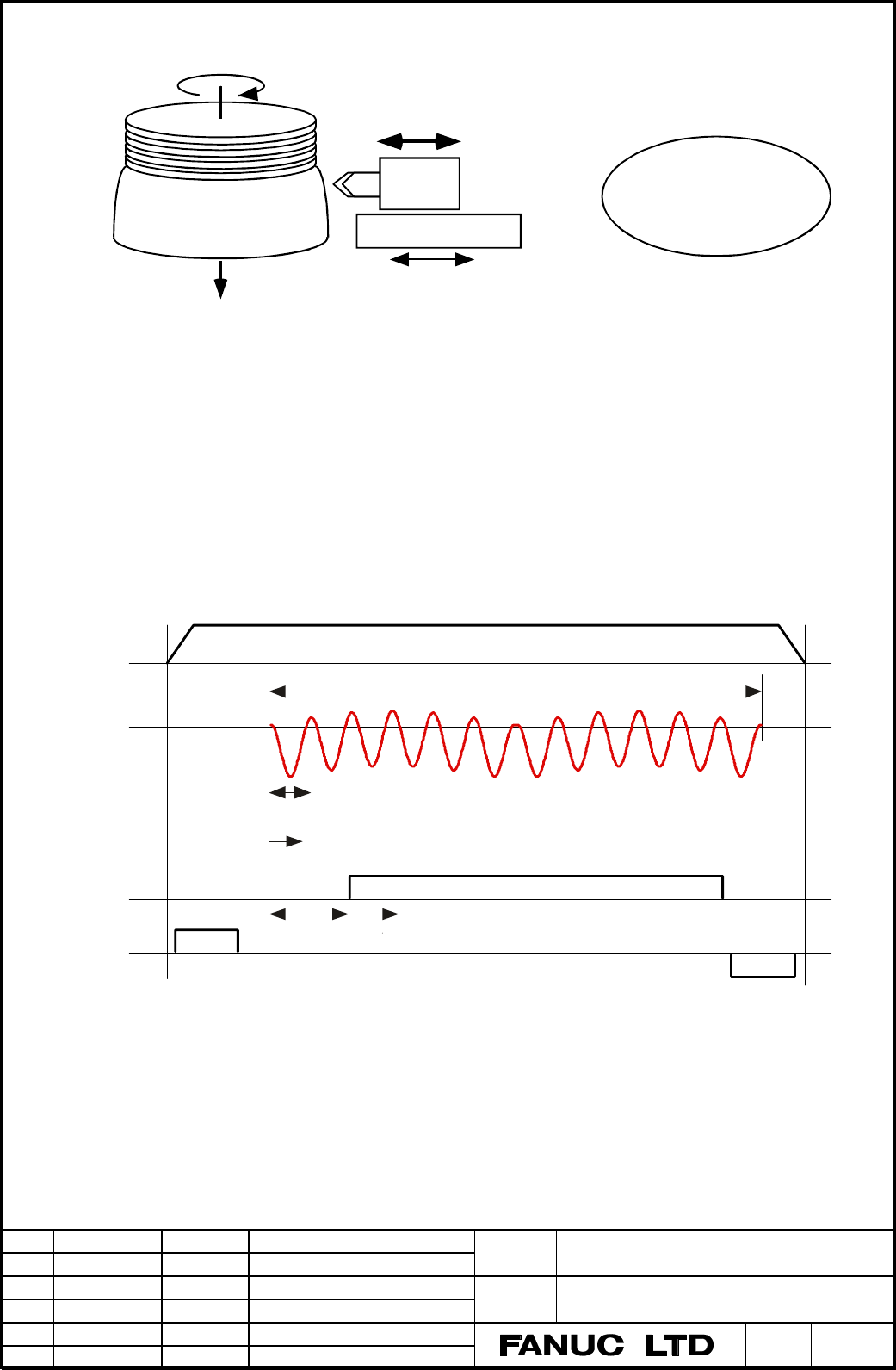

Fig. 3.2.2 Movement of the tool along each axis when processing
Oval cross Section
Z axis
Piston axis
Double slide mechanism
Piston Work
Fi
g
. 3.2.1 Confi
g
u
r
ation example o
f
piston lathe
Y axis
X axis
Caxis
Yaxis
Zaxis
Xaxis
G05 endG05 start
Approach
Retract
Learning period PRIOD
Y axis Learning start
Cutting start
Ly should be longer than the the time the
learning complete to minimize the error.
Ly
Repetitive count
RPTCT
