7.3 Connection
In case of connecting JA8A (JA26) connector of CNC with CNI3 connector of Digital check-board, the
relation of the axis on SD.EXE and servo axis on CNC is the following.
SD.EXE Digital check-board Servo axis
X : CH0 AXIS1 1
st
axis or 5
th
axis ∗4
Y : CH1 AXIS2 2
nd
axis or 6
th
axis ∗4
Z : CH2 AXIS3 3
rd
axis
4 : CH3 AXIS4 4
th
axis
*4 In case of connecting JA8A connector of CNC, the data of the 1
st
, 2
nd
, 3
rd
, and 4
th
axis is output.
In case of connecting JA26 connector of CNC, the data of the 5
th
and 6
th
axis is output.
Note 1) The relation of Servo axis and CNC controlled axis is set for No.1023. You must allocate a High-speed
axis or Learning axis to odd axis (1
st
, 3
rd
, or 5
th
axis).
Note 2) The odd axis of Servo axis corresponds to L axis, the even axis corresponds to M axis.
Note 3) In case of gathering the data of 1
st
, 2
nd
, 5
th
, and 6
th
axis, you should use two Servo wave check
adapter, and connect the flat cables of to CNI1 and CNI2.
Note 4) TEST1 connector of servo wave check adapter corresponds to the 1
st
or 2
nd
axis of Servo axis.
TEST2 connector of servo wave check adapter corresponds to the 3
rd
or 4
th
axis of Servo axis.
Note 5) CNI1 of Digital check-board corresponds to AXIS1 or AXIS2 of Dip-switch. And CNI2 corresponds to
AXIS3 or AXIS4.
Note 6) In series 16i, you should connect CA54 connector of CNC with CN0 connector of Servo wave check
adapter (A02B-0236-K822).
TESTA connector of servo wave check adapter corresponds to the 1
st
, 2
nd
, 3
rd
, or 4
th
axis of Servo
axis.
TESTB connector of servo wave check adapter corresponds to the 5
th
, 6
th
, 7
th
, or 8
th
axis of Servo
axis.

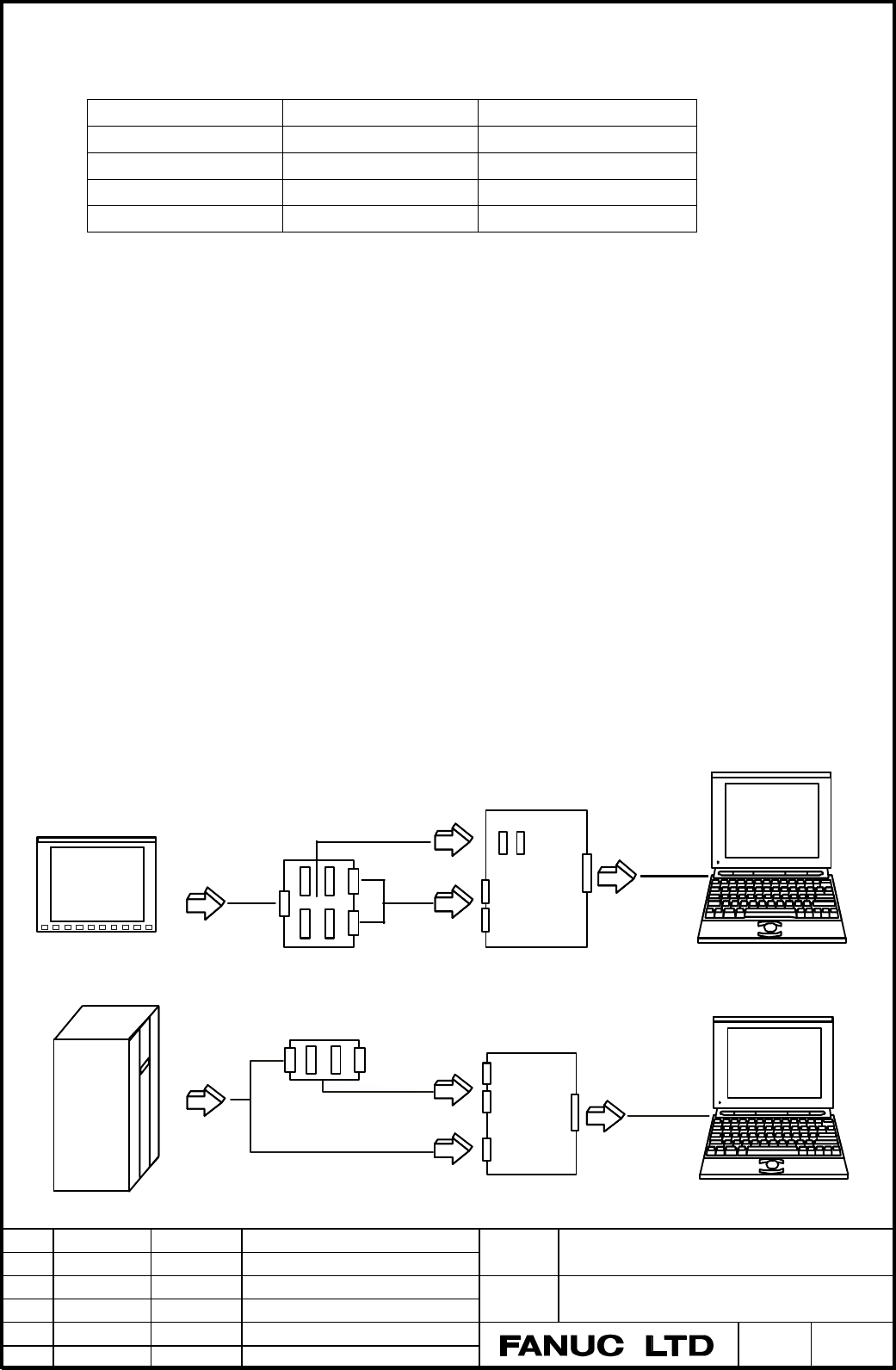

Note 7) In series 16i model-B, you need of Servo wave check adapter (A02B-0281-K822).
CNC
FS16 i
OUT
OUT
CNI2
CA54
IN
OUT
CNI3
CNA1
IN
CNI1
CNI3
OUT
or
Personal computer
Digital Check board A
(A06B-6057-H630)
Servo wave Check adapter
(A02B-0236-K822)
CNC
FS16
OUT
IN
Straight cable
OUT
CNI1
CNI2
JA8A
IN
OUT
Digital Check board B
(A06B-6057-H610)
CNI3
CNA1
or
Servo wave Check adapter
(A02B-0120-C211)
Personal computer
