  2. FANUC AC Servo Software 90A3 / 90A7 Series, 90B3 / 90B7 Series Learning Function, Operator

FANUC AC Servo Software 90A3 / 90A7 Series, 90B3 / 90B7 Series Learning Function, Operator Additional Manual Page 5

Additional Manual
Title 90A3 / 90A7 / 90B3 / 90B7
Learning Control Operator’s Manual
03 ’05.01.13 K.Maeda 3
rd
. updated Draw No.
02 '03.01.06 K.Maeda 2
nd
. updated
A - 63639E - 070
01 ’00.09.20 K.Maeda Newly designed Sheet 05
Edit Date Design Description / 081
2. System Configuration
High-speed cutting (G05) can be achieved using three below cases. Fig.2-1 shows a system configuration.
(1) Memory operation by “High speed cycle cutting”
a) To produce cutting data by Open CNC or personal computer and down load to P-code area of CNC.
b) To produce cutting data by Macro executor and write to P-code area.
After preparing the cutting data by Personal Computer or Open CNC.
(2) Data Server operation with High-speed binary operation.
c)To produce cutting data by Open CNC or personal computer and down load via Ethernet to Data server
and run “High speed binary operation by Data Server”.
(3) DNC operation that Open CNC or Personal compute run directly CNC through HSSB
using the next two ways.
(d) User’s program including DNC operation library.
(e) DNC operation management package in BOP (Basic Operation Package).
(Note) In case of (3) , there is a possibility that transmission rate can not keep always due to the personal
computer performance. In individual case, consult with Software technique department. If you
need to have the transmission rate guaranteed, you must select the method of c) .
♦ You can choose the Memory operation or (either Data Server operation or DNC operation) in one
system. You can change two operations by G05 code or M198 code in your cutting program.
♦
In case of Memory operation, you can use “High speed cycle skip function” or “High speed cycle
retract function”. In case of (2) or (3), you can use “High speed binary retract function”, can not use
“High speed binary skip function”.
(Note) In case that you store Learning data and recycle it, refer to 7.2 Learning data transmission function.
Personal Computer
Producing cutting data
Hard Disk
(Binary data)
c)Ethernet
Learning
function
Digital Servo
Software
Data Server
Binary Op.
P-code variables
Memory Op.
Series 16i
a
)
HSSB
G05
d) HSSB
F-bus
Macro executor
b)
User Program
(+Library by Fanuc)
User Program
(Parts Prog. Oxxx)
(1)
(2)
(3)
Position
Command

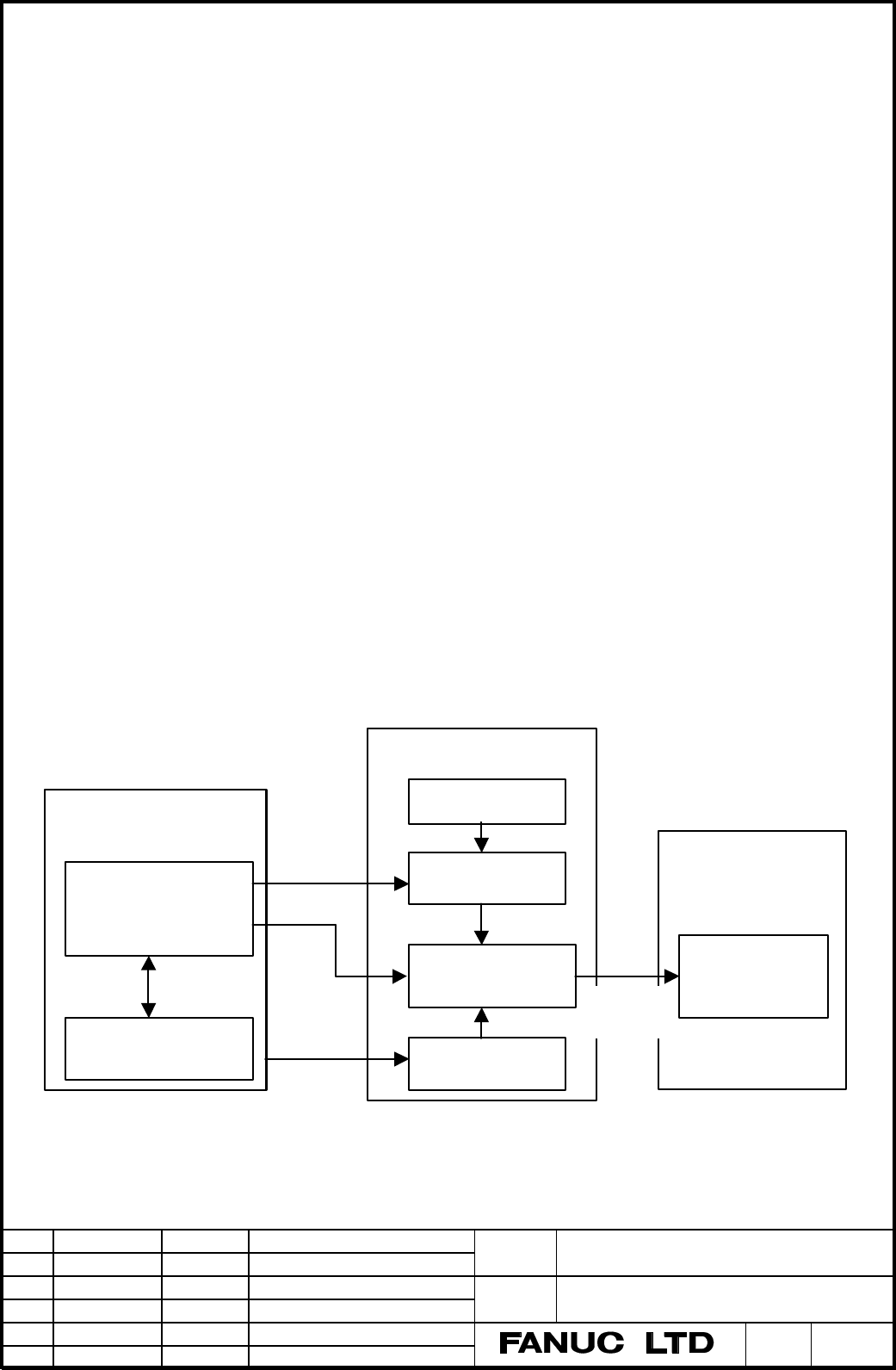

Fig. 2-1 System configuration selection
